G125-4500000B

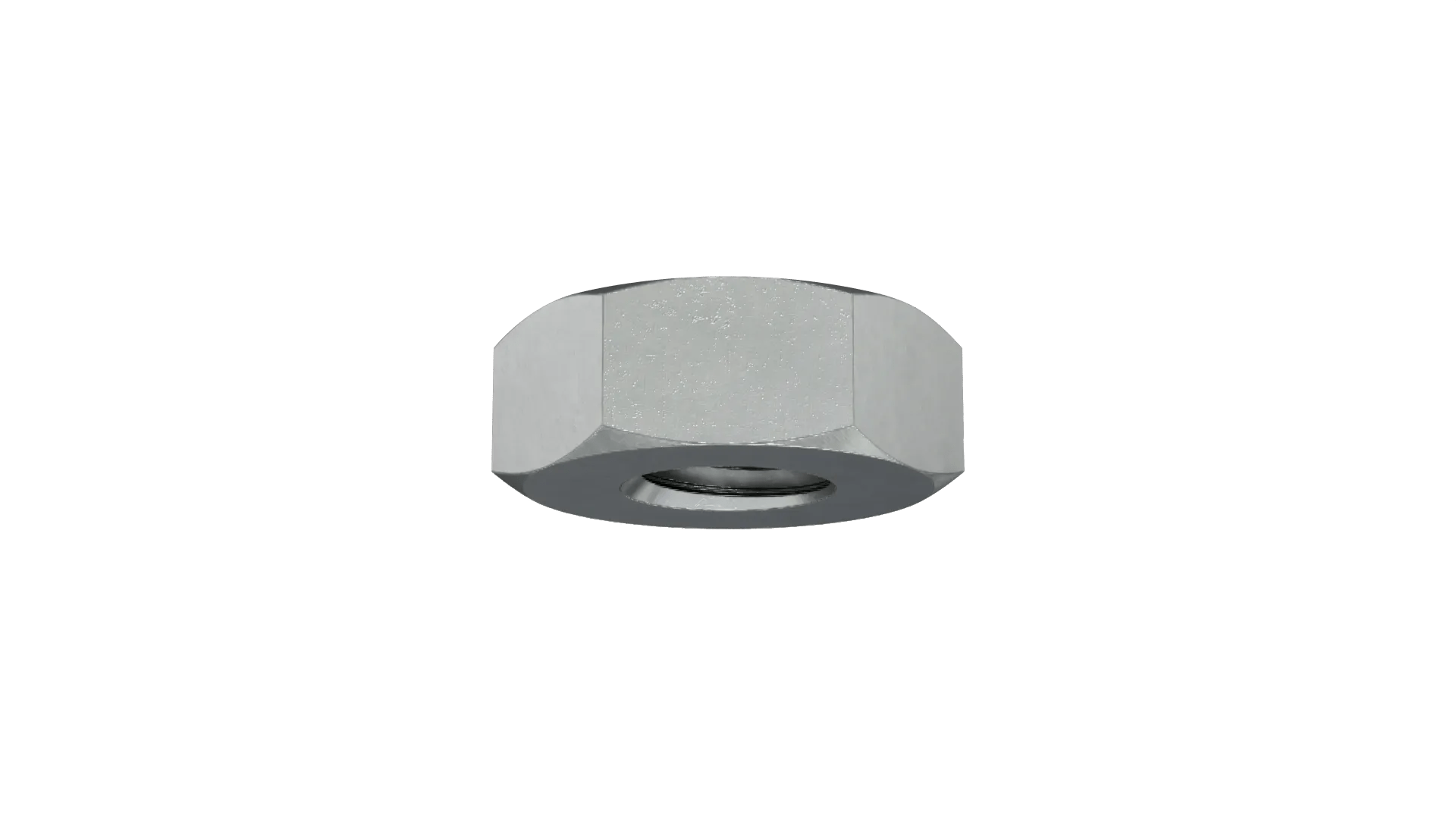

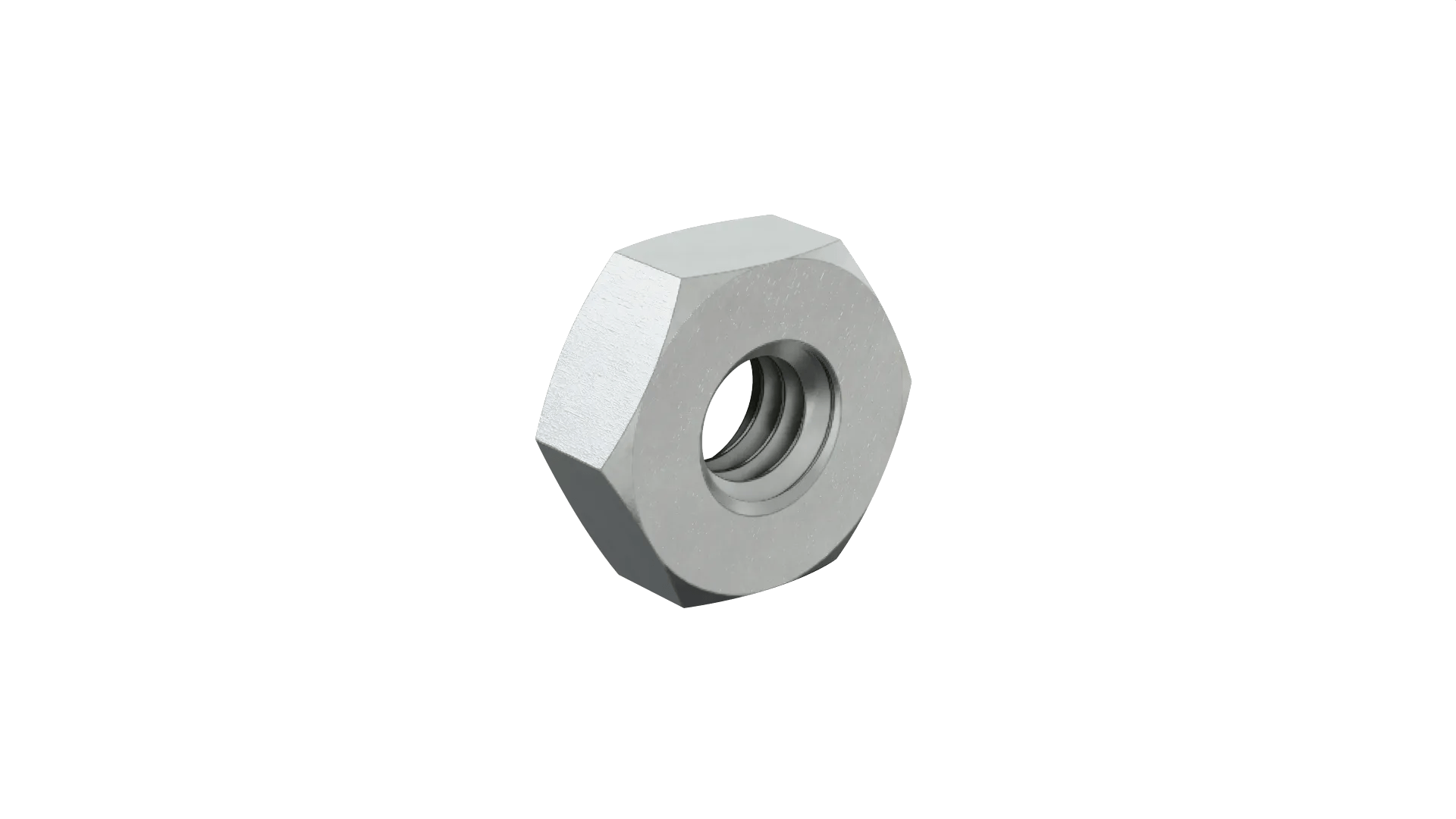

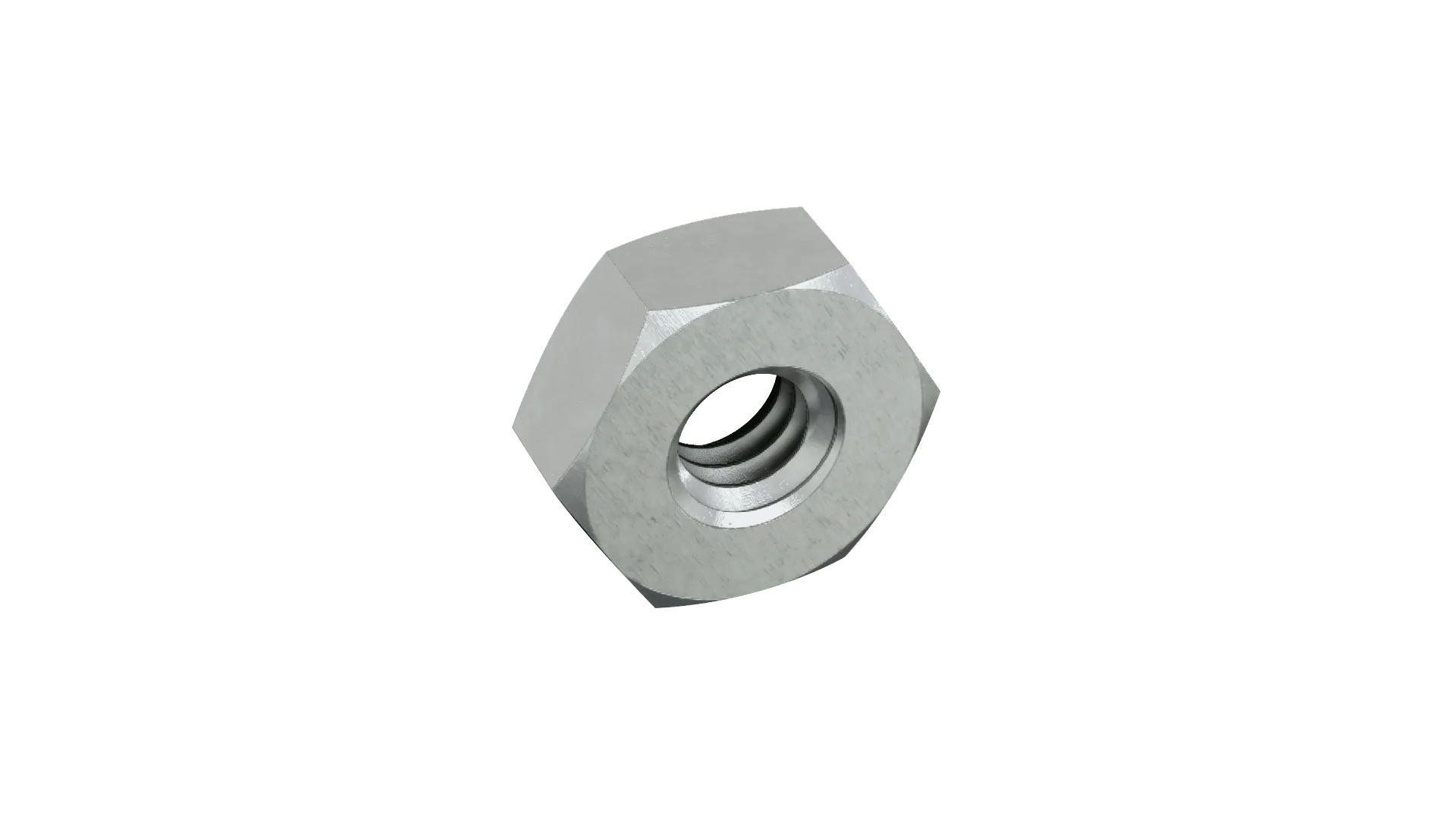

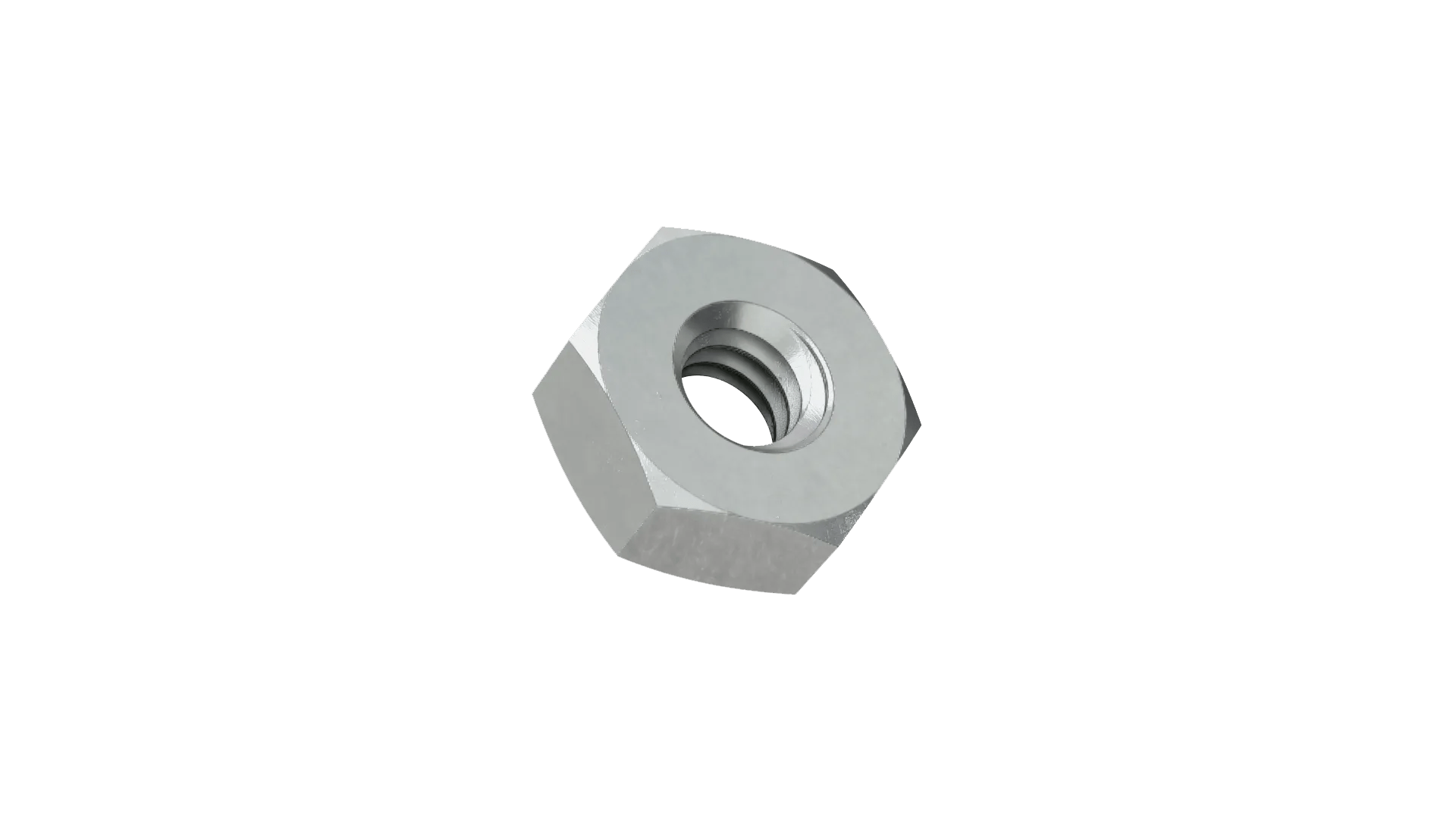

Hex Jackscrew Nut for Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko

Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.142g

Overall Dimensions (L x W x D) in mm:

1.60 x 4 A/F Hex

Thread Size:

M2

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status1031
Farnell
Europe
Status140
Harwin
Global
Status6486
Mouser Electronics Inc
Global
Status441
TTI Inc
USA
Status15

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
