Home > R30-6201314
Active

R30-6201314

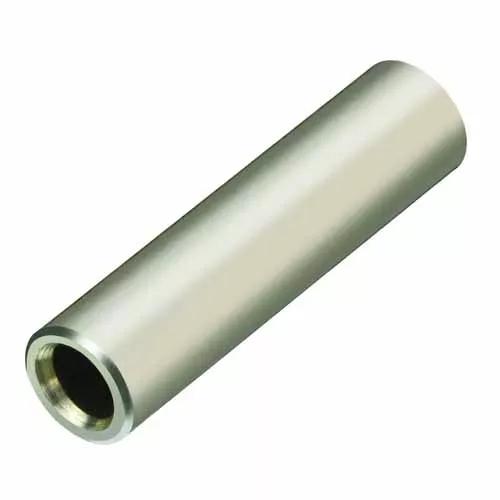

13.00mm M3 Metric Clearance Circular Aluminium Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Clearance Circular Aluminium Spacer, Ø5mm O/D.
  • 13mm body length.
  • Clear Passivation coating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Clear Passivation

Base Material of Contact:

Aluminium

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.4g

Overall Dimensions (L x W x D) in mm:

13.00 x Ø5.00

Body Length:

13.00mm

Thread Size:

M3 Clearance

Availability

10,577 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 9777
Distributor Genalog
Location Europe
Quantity (Updated Daily) 800

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-620.pdf

ZIP

R30-6201314 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R30-620 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Clearance Spacers

PDF

Product Change Notification 31-May-2016 - R30-620
