Home > R30-6201214
Active

R30-6201214

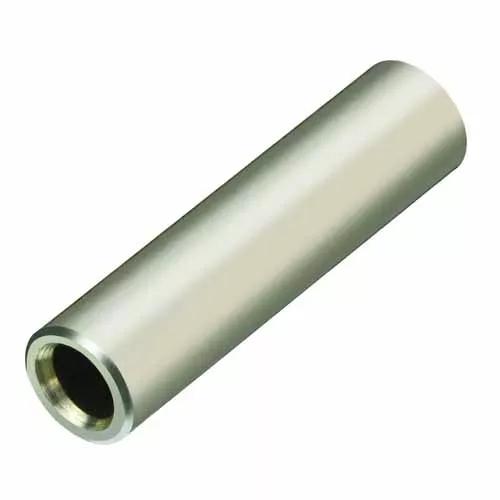

12.00mm M3 Metric Clearance Circular Aluminium Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Clearance Circular Aluminium Spacer, Ø5mm O/D.
  • 12mm body length.
  • Clear Passivation coating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Clear Passivation

Base Material of Contact:

Aluminium

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.369g

Overall Dimensions (L x W x D) in mm:

12.00 x Ø5.00

Body Length:

12.00mm

Thread Size:

M3 Clearance

Availability

Limited availability or made-to-order
Distributor Location Quantity
Farnell
Europe
Status3038
Mouser Electronics Inc
Global
Status2091
Newark
USA
Status2335

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-620.pdf

ZIP

R2312F14 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R30-620 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Clearance Spacers

PDF

Product Change Notification 31-May-2016 - R30-620
