Active

M80-001

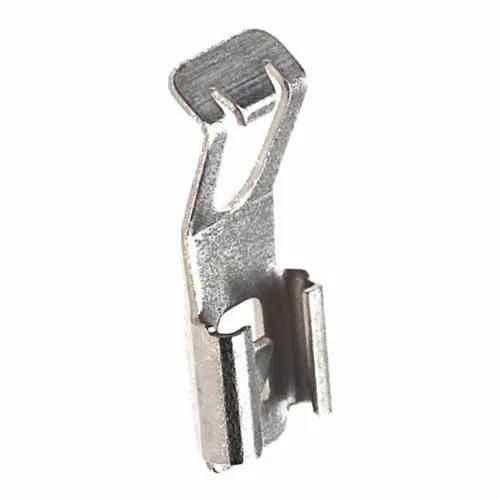

Spare Locking Latch for Male Connectors

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

Spare Locking Latch to fit to Datamate L-Tek Male connectors.
Not recommended for inexperienced users, please consider a connector with latches already fitted instead.

Request Samples

Availability

M80-001 - Spare Locking Latch for Male Connectors

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Operating Temperature:

-55°C to +125°C

Style of Latches:

Locking Latch

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.05g

Overall Dimensions (L x W x D) in mm:

3.40 x 1.00 x 7.95

Availability

48,950 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Anglia

Location Europe

Quantity (Updated Daily) 14100

Buy now

Distributor Farnell

Location Europe

Quantity (Updated Daily) 13530

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 12734

Buy now

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 7396

Buy now

Distributor Genalog

Location Europe

Quantity (Updated Daily) 990

Buy now

Distributor Newark

Location USA

Quantity (Updated Daily) 200

Buy now

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-001.pdf

ZIP

M80-001 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT044 - Datamate L-Tek Locking Latch number of operations with applicable hand tools

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-001 series

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

IS-30 - Z80-299 Datamate Separator Tool Instruction Sheet

PDF

Catalog page - Datamate L-Tek Specification, Pin Numbering
