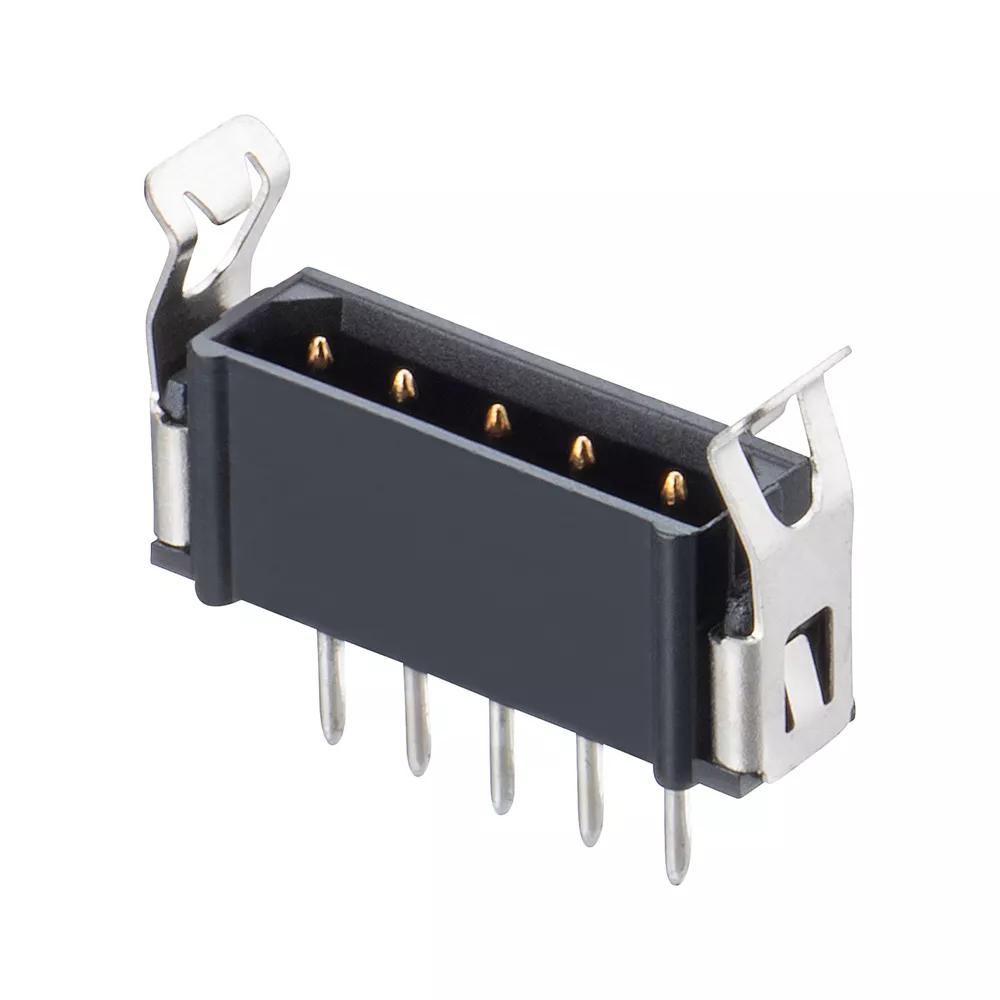

M80-8820542
5 Pos. Male SIL Vertical Throughboard Conn. Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
2,595 in stock Check availability
7 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row, 5 x 3mm PC Tail contacts – Gold finish on contact area, Tin finish on termination.
- Locking latches – tooling required to separate mated connectors.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Latches:
Locking Latch
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
5
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.412g
Overall Dimensions (L x W x D) in mm:
14.10 x 3.85 x 11.35
Height of Connector above PCB:
8.35mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
