M50-3140245R

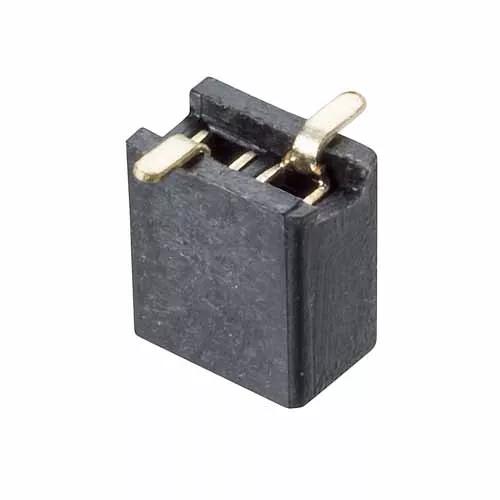

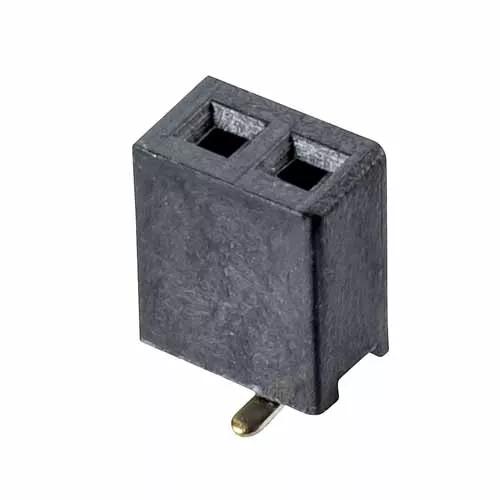

2 Pos. Female SIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

3,613 in stock   Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single Row Surface Mount, 3.6mm connector height – 2 contacts.
  • Gold finish on contact area, Tin finish on termination. No location pegs.
  • Packaged in Tape & Reel, with Pick & Place caps.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

2

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.085g

Overall Dimensions (L x W x D) in mm:

2.94 x 3.20 x 3.60

Height of Connector above PCB:

3.60mm
