M50-3030242

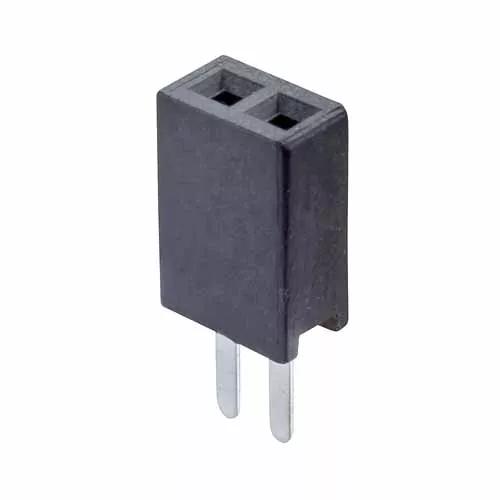

2 Pos. Female SIL Vertical Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
50,299 in stock Check availability
3 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row, 2.4mm PC Tail, 4.4mm connector height – 2 contacts.
- Gold finish on contact area, Tin finish on termination.
- Packaged loose.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
2
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Box
Dimensions
Individual Part Weight:
0.046g
Overall Dimensions (L x W x D) in mm:
2.97 x 1.80 x 6.80
Height of Connector above PCB:
4.40mm
Length of Throughboard Tail:
2.40mm
Mating Profiles:
