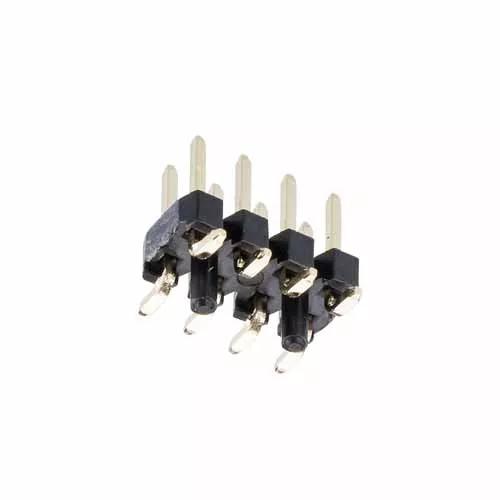

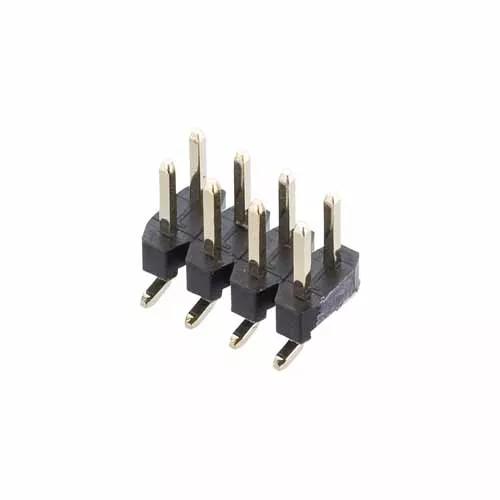

M22-5300405

4+4 Pos. Male DIL Vertical SMT Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row Surface Mount with location pegs, 3.5mm mating pin height – 8 contacts (4+4).
  • Gold finish on contact area and termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.189g

Overall Dimensions (L x W x D) in mm:

8.00 x 5.75 x 7.13

Height of Connector above PCB:

5.75mm

Availability

120 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 120

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M22-530.pdf

ZIP

M22-5300405 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M22-530 series
