M22-5430405

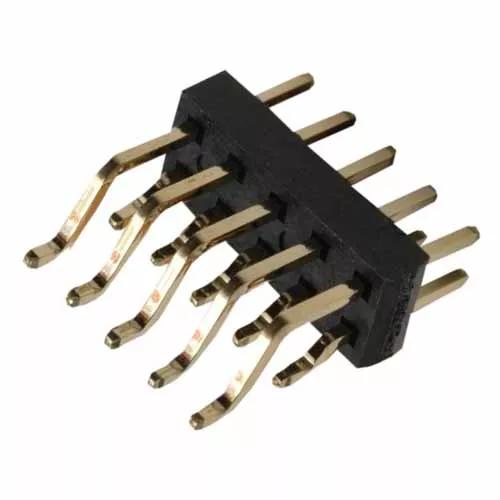

4+4 Pos. Male DIL Horizontal SMT Conn.

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Double Row Surface Mount with location pegs, 3.2mm mating pin height – 8 contacts (4+4).
  • Gold finish on contact area and termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.5mm square

Current Rating:

1.5A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.284g

Overall Dimensions (L x W x D) in mm:

8.00 x 11.42 x 5.00

Height of Connector above PCB:

4.00mm

Availability

938 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 678
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 260

Questions & Answers Ask a Question

How do I cut down this pin header?

Single row pin headers can be carefully snapped by hand. For both single and double row, you can also purchase a hand-cutting tool Z1022-00 – it was designed for 2.54mm pitch, but can work on 2mm. Or, you can use a fine slitting saw if you have access to cutting machinery – this will give the cleanest edge.
