Home > M22-3080046
Active

M22-3080046

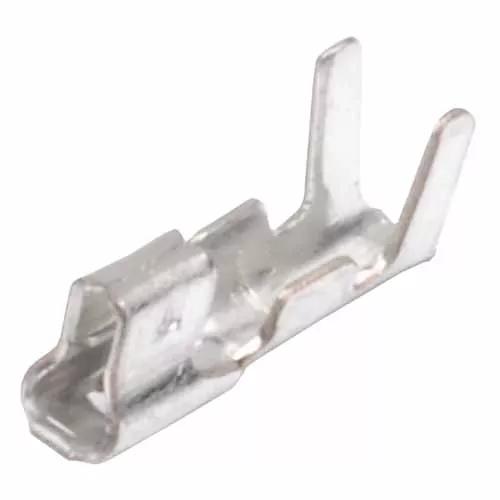

Female 24-30AWG Crimp Contact, loose

2.00mm (0.079") Pitch PCB Connector - M22 Series

  • Loose female crimp contacts – Tin finish contact area.
  • Suitable for cable conductor sizes from 24 to 30AWG.
  • Use with crimp housings M22-307 series.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-30AWG

Mating Pin Size:

0.5mm square

Current Rating:

2A per contact

Operating Temperature:

-25°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.04g

Overall Dimensions (L x W x D) in mm:

5.80 x 2.20 x 2.90

Availability

11,509 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 7469
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2306
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1700
Distributor Genalog
Location Europe
Quantity (Updated Daily) 34

Questions & Answers Ask a Question

Which crimp tool is recommended for crimping these contacts in low quantities?

Crimp tool Z22-020 is supplied for low-volume crimping. You can see it listed under Related Products further down the page.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M22-308.pdf

ZIP

M22-3080046 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M22-308 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-05 - Z22-020 Hand Crimp Tool Instruction Sheet
