Home > H9004-01
Active

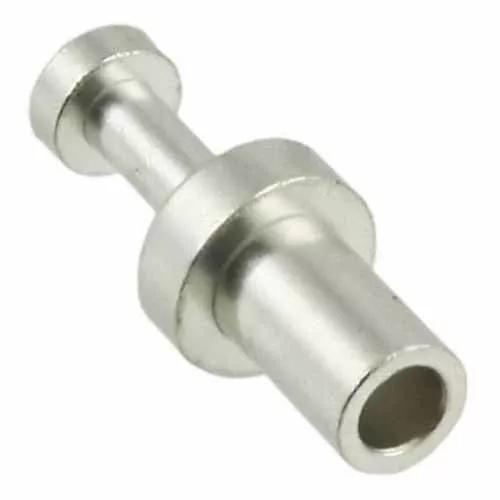

H9004-01

Vertical Throughboard Turret Lug, Single

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Single turret, 4.74mm high, Ø1.95mm diameter, for 1.6mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Turret

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.151g

Overall Dimensions (L x W x D) in mm:

7.14 x Ø3.18

Height of Connector above PCB:

4.74mm

Length of Throughboard Tail:

2.40mm

Availability

11,172 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 6215
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 4210
Distributor Genalog
Location Europe
Quantity (Updated Daily) 747

Questions & Answers Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - H9004.pdf

ZIP

H9004-xx CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for H9004 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

PDF

IS-35 - Punch and Die Tools Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Turned Turret Lugs
