H9001-01

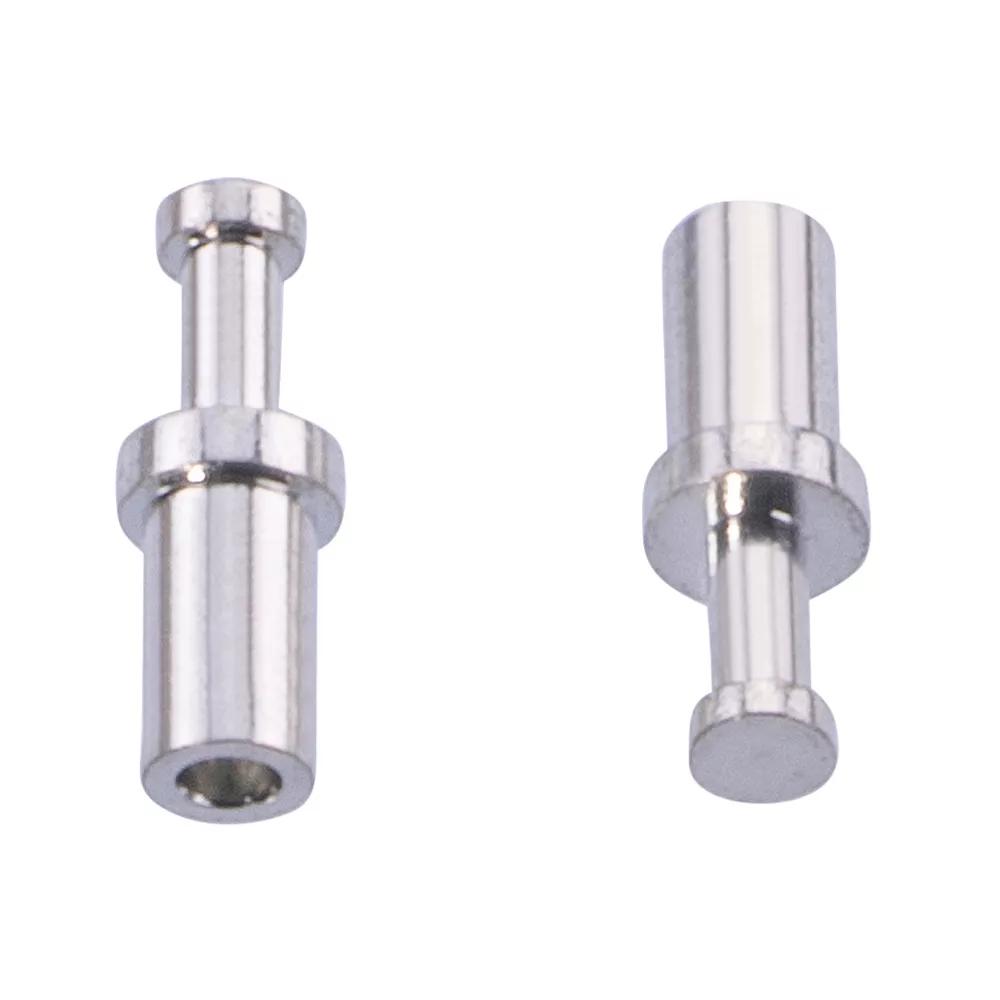

Vertical Throughboard Turret Lug, Single

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • Single turret, 2.39mm high, Ø1.02mm diameter, for 1.6mm panel thickness.
  • Bright 100% Tin finish.
  • Swage for additional mechanical retention. Product still requires soldering for electrical connection.
Add to Favorites

Technical Details

Specification

Contact Gender:

Turret

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.035g

Overall Dimensions (L x W x D) in mm:

4.50 x Ø1.57

Height of Connector above PCB:

2.39mm

Length of Throughboard Tail:

2.11mm

Availability

26,068 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 13189
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 4650
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2735
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2172
Distributor Newark
Location USA
Quantity (Updated Daily) 1672
Distributor Genalog
Location Europe
Quantity (Updated Daily) 1650

Questions & Answers Ask a Question

Do I need to swage this terminal contact? Does it need soldering as well?

The swaging of the terminal contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. You can use the terminal without swaging.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
