H2088-01

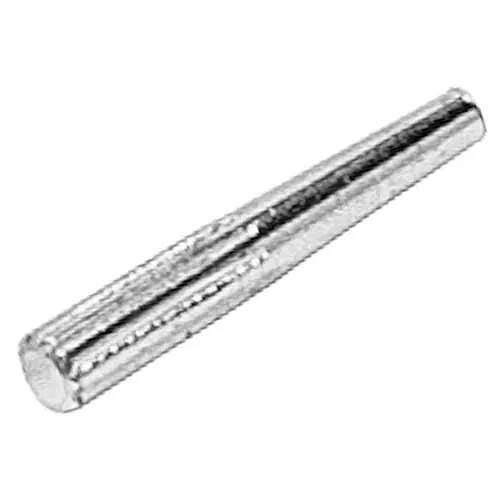

Vertical Throughboard Terminal Pin, Spline Pin
Hardware - Terminal Pin, Terminal Lug, Turret Lug
- 7.14mm long, Ø1.13mm spline. Single ended, for 2.4mm panel thickness.
- Bright 100% Tin finish.
- Knurled for mechanical board retention. Product still requires soldering for electrical connection.
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.047g
Overall Dimensions (L x W x D) in mm:
7.14 x Ø1.13
Availability
88,513 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
