H2081-01

Vertical Throughboard Terminal Pin, Spline Pin

Hardware - Terminal Pin, Terminal Lug, Turret Lug

Add to Favorites

20,525 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

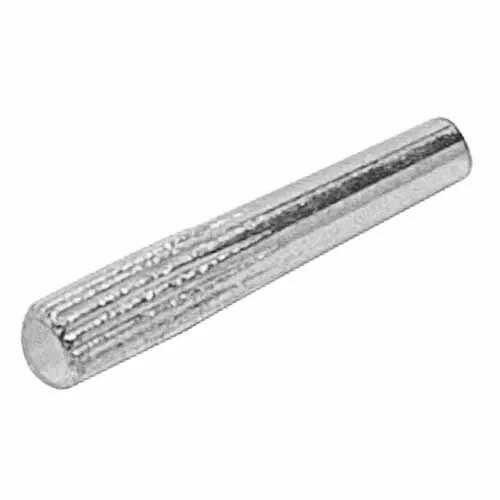

  • 9.53mm long, Ø1.68mm spline. Single ended, for 3.2mm panel thickness.
  • Bright 100% Tin finish.
  • Knurled for mechanical board retention. Product still requires soldering for electrical connection.

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.148g

Overall Dimensions (L x W x D) in mm:

9.53 x Ø1.68

Frequently Asked Questions Ask a Question

How do I assemble this knurled contact? Does it need soldering as well?

The knurl on the contact is for additional mechanical retention only – it will need soldering for a true gas-tight joint. The contact is simply pressed into the PCB, with a bench press or similar.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
