  • G125-FS13405L0P - 17+17 Pos. Female DIL Vertical SMT Conn. for Latches
  • Youtube Video for G125-FS13405L0P
  • G125-FS13405L0P - 17+17 Pos. Female DIL Vertical SMT Conn. for Latches

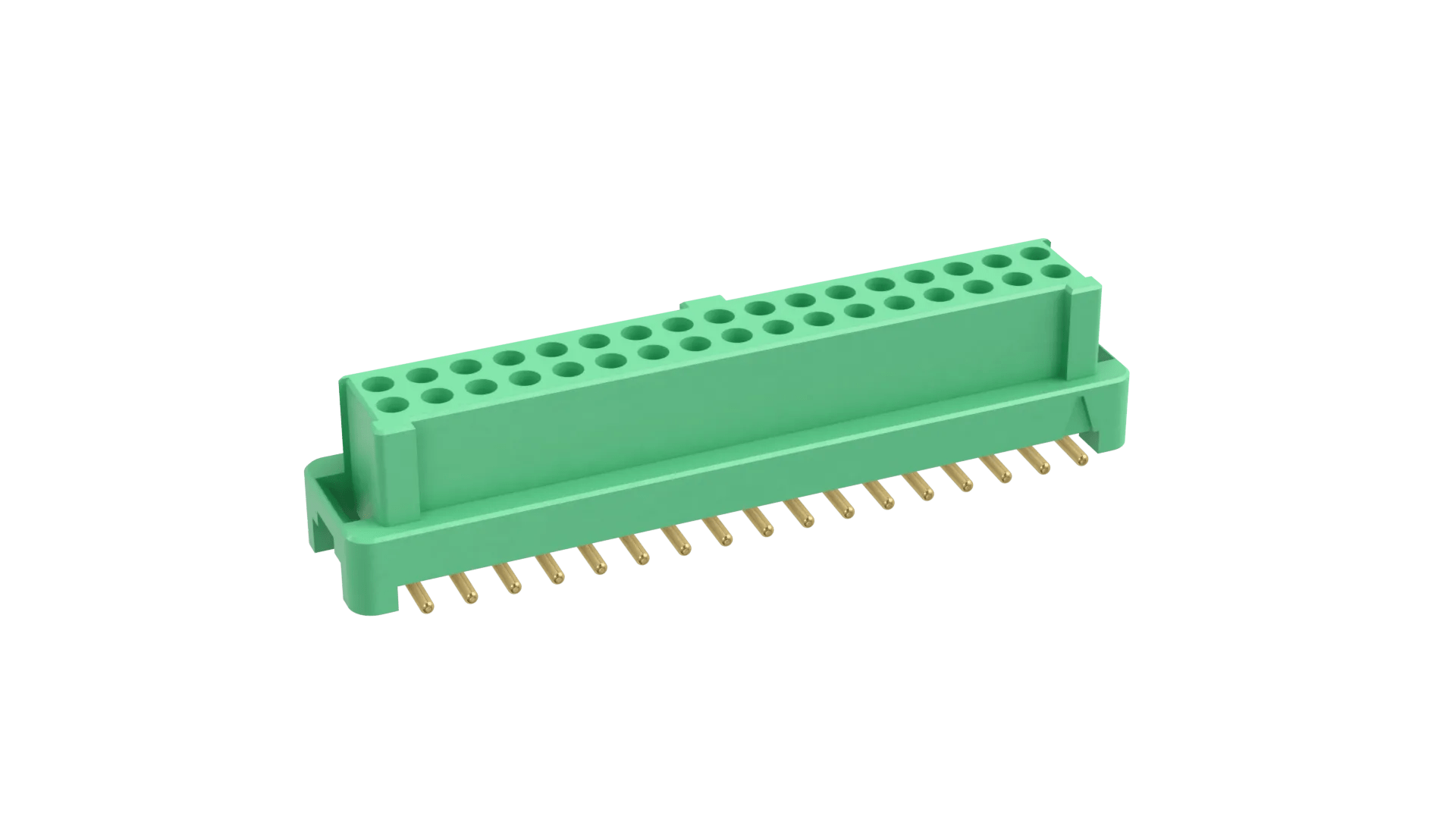

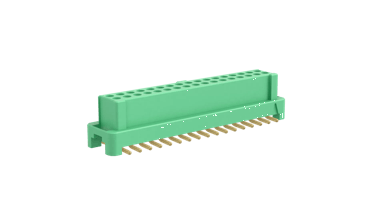

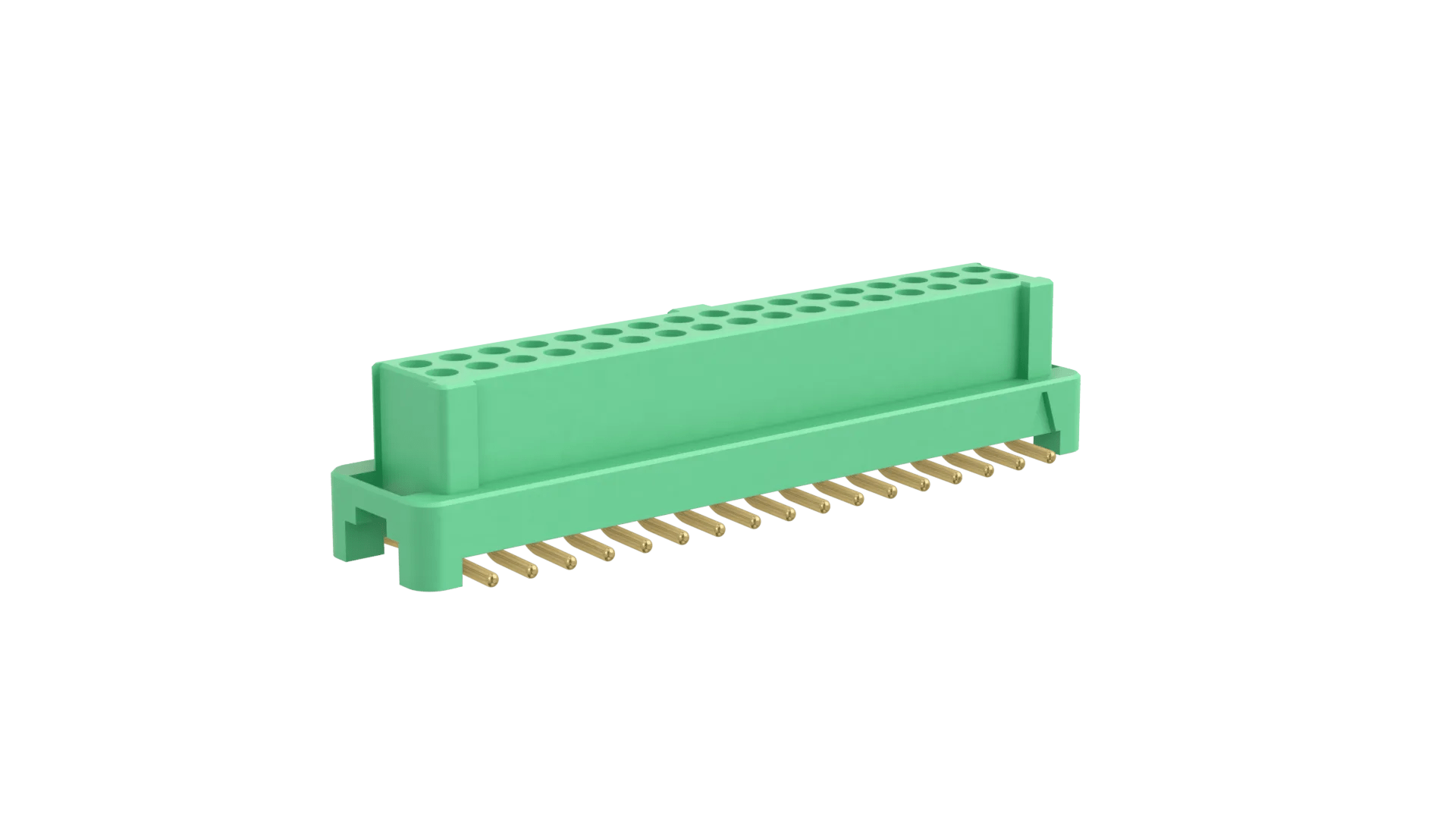

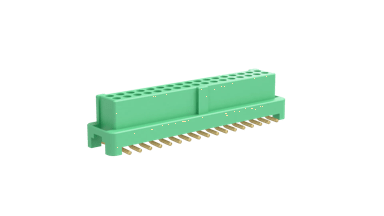

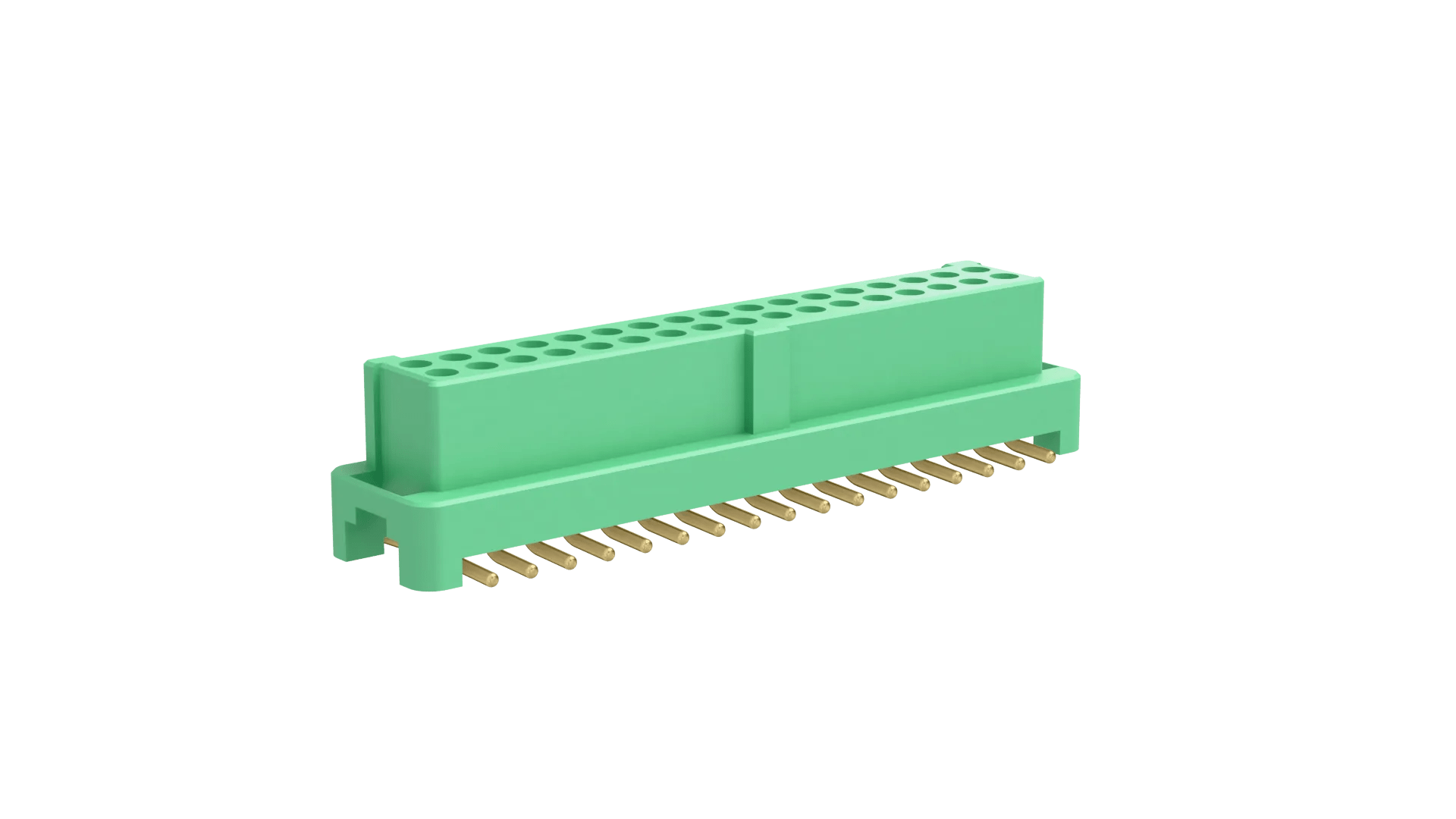

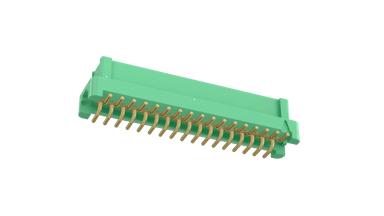

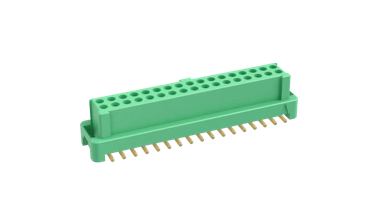

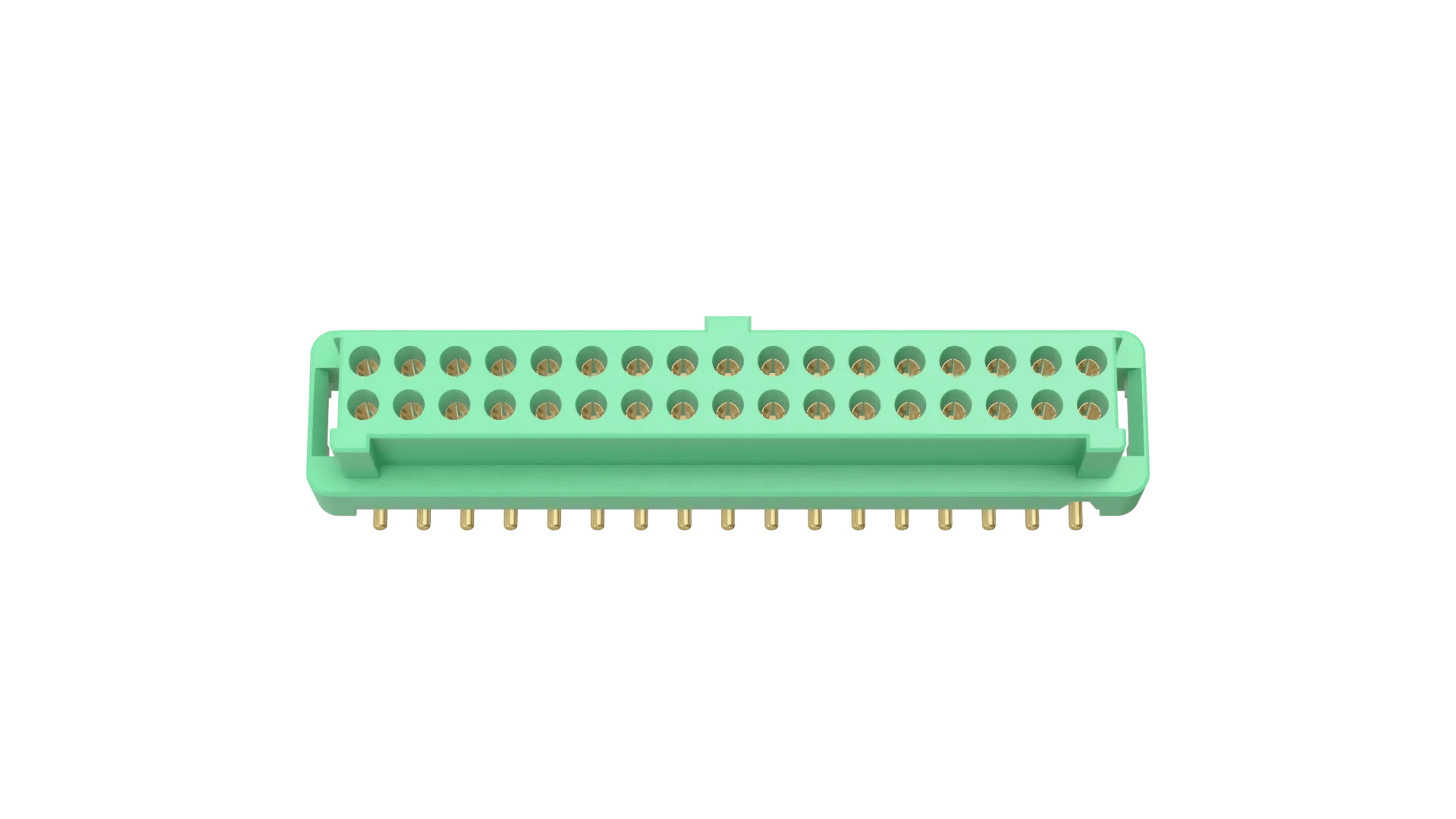

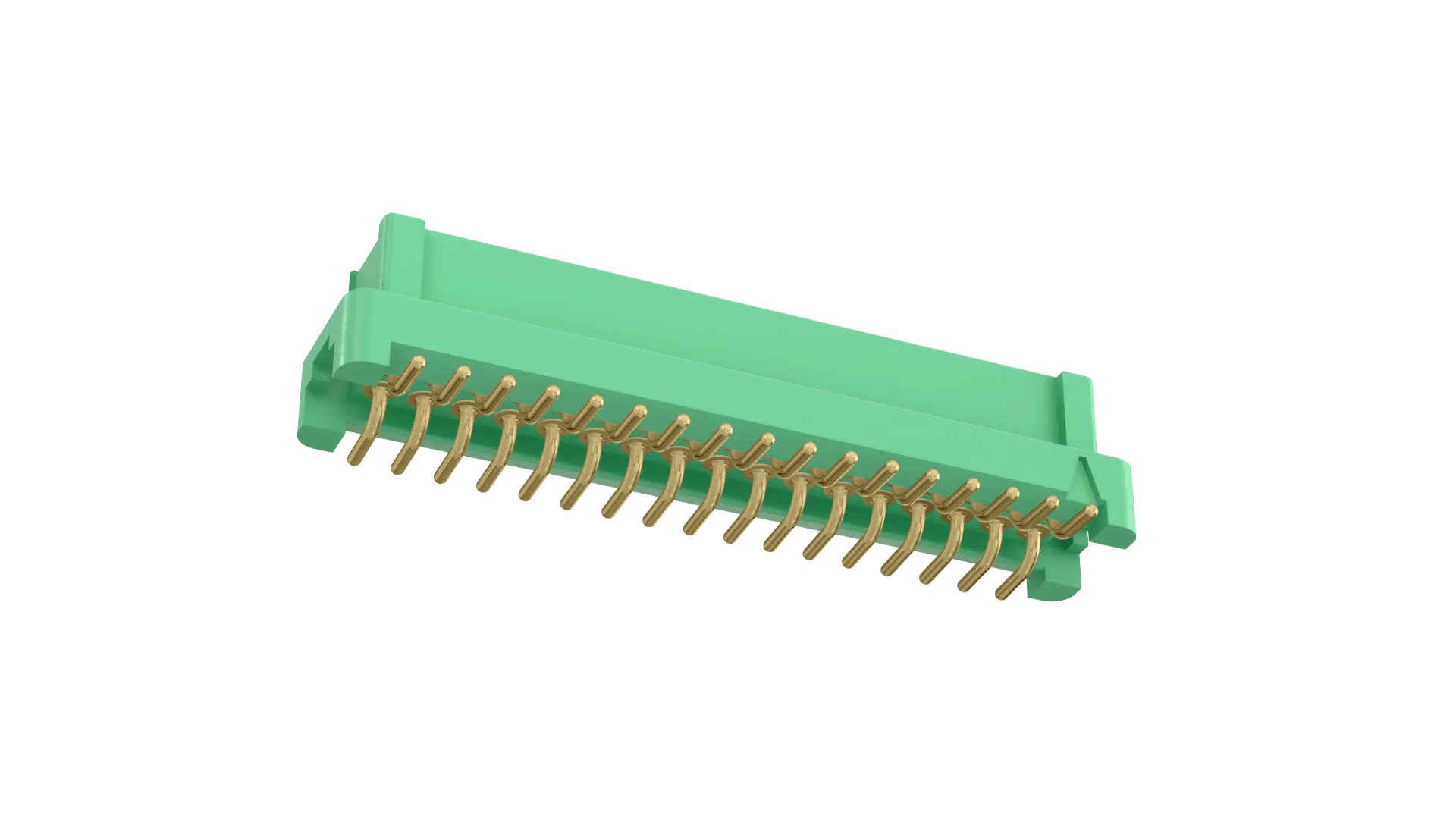

G125-FS13405L0P

17+17 Pos. Female DIL Vertical SMT Conn. for Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Double Row Vertical Surface Mount connector - 34 contacts (17+17).
  • Supplied in tape strips with pick and place cap.
  • Compatible housing style for male connectors with latches.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Digi-Key Global 35 Buy Now
Farnell Europe 400 Buy Now
Mouser Electronics Inc Global 80 Buy Now
Newark USA 400 Buy Now
TTI Europe Europe 130 Website
Harwin Europe 540

Stock available: contact distributor to purchase

Harwin Inc USA 15

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.25mm Pitch High-Reliability Connector - Gecko with Latches
Contact Pitch: 1.25mm
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.4mm
Current Rating: 2A
Operating Temperature: -65°C to +150°C
Style of Latches: Compatible with latches
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper
Housing Material: Polyamide (Nylon) 4T
Housing Color: Green
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.987g
Packaging Style: Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 34
Body Length: 23.8mm
Height of Connector above PCB: 5.3mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Mating Profiles/Heights

Related Products

+
Product in Tape and Reel, or Reeled: G125-FS13405L0R
Product Family: G125-FS1

Mating Products

Previous Next

Alternative products

G125-FS13405L0R - 17+17 Pos. Female DIL Vertical SMT Conn. for Latches (T+R)

Closest alternative:

G125-FS13405L0R

17+17 Pos. Female DIL Vertical SMT Conn. for Latches (T+R)
