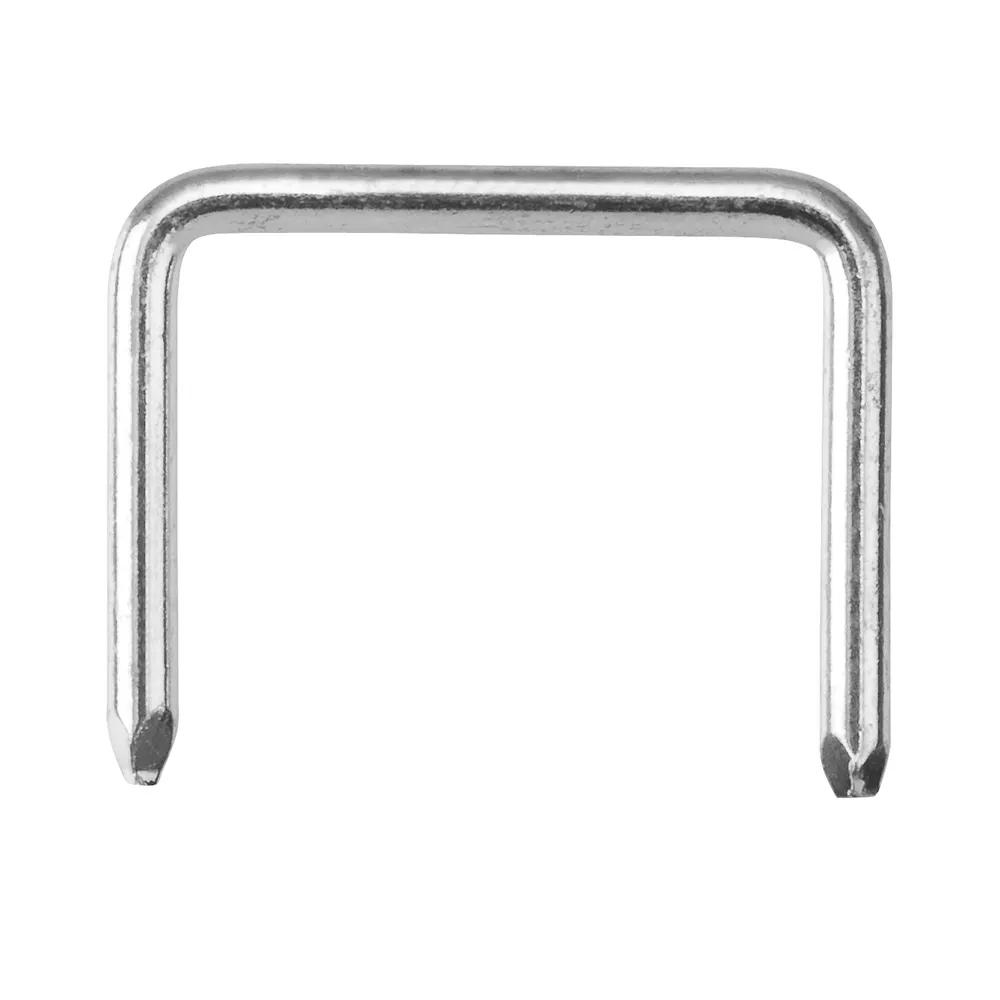

Ø1mm Male plug uninsulated shorting link, 10.16mm (0.4") pitch between terminations.
Bright Tin finish (over Nickel)
Use as a permanent link between 2 PCB locations to jump over printed tracks.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Straight
Country of Origin
TW
Number of Power/Coax Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
10A
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Base Material of Contact
Brass
Packaging Style
Bulk/Loose
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Contact Pitch
10.16mm (0.4")
Weight
0.183g
Dimensions
11.16 x 1.00 x 9.00
PC Tail Length
8.00mm
Height of Connector above PCB
1.00mm
