Home > D3088-99
Active

D3088-99

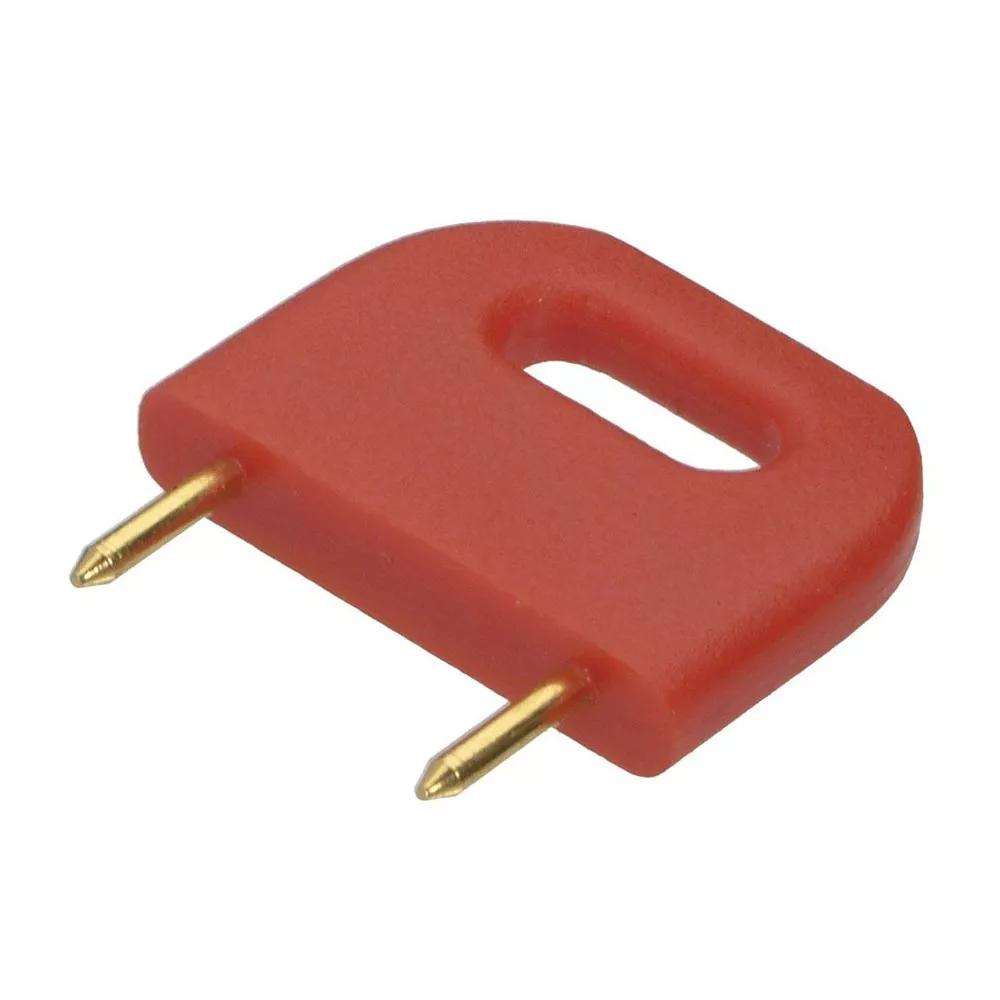

Male Insulated 10.16mm Shorting Link, Red

Hardware - PCB Shorting Link, Removable Jumper Link

  • Ø1mm Male Insulated shorting plug or link, 10.16mm (0.4″) pitch between legs, Gold finish.
  • Red housing for identification / differentiation.
  • Not intended for direct soldering to PCB, not recommended for RoHS / Lead-free soldering processes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

10.16mm (0.4")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

10A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 235°C for 5 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Brass

Housing Material:

PBT

Housing Colour:

Red

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.889g

Overall Dimensions (L x W x D) in mm:

15.10 x 3.20 max x 17.00

Height of Connector above PCB:

12.00mm

Length of Throughboard Tail:

5.00mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status730
Digi-Key
Global
Status1293
Farnell
Europe
Status1302
Harwin
Global
Status16100
Mouser Electronics Inc
Global
Status698
Newark
USA
Status28
TTI Europe
Europe
Status9000
TTI Inc
USA
Status700

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What is the maximum contact resistance of this shorting plug?

We have not specifically tested the contact resistance of this product, but it is one continuous piece of metal so it will be very low. We would recommend that you do testing with it mated to whatever connection you intend to use, so that you can confirm the contact resistance obtained in use. The contact resistance of the connection point will be higher than the contact resistance within the shorting plug.

Could you provide the packing information to me – are they Reel, Tray or others?

These items are packed in bulk – that is, loose in bags. There is no reel or tray option available, sorry. You can find the Packing style on this page in the Technical Details section, under Materials.

Which PCB socket will mate with this shorting link?

We have a choice of sockets suitable for mating with the 1mm diameter pins on the shorting link. Here is the Catalog section for PCB sockets – check for ones that are compatible with 1mm diameter. Please make sure you also check the widest diameter so that the sockets will fit next to each other on the same pitch as the shorting link.
