S7121-42R

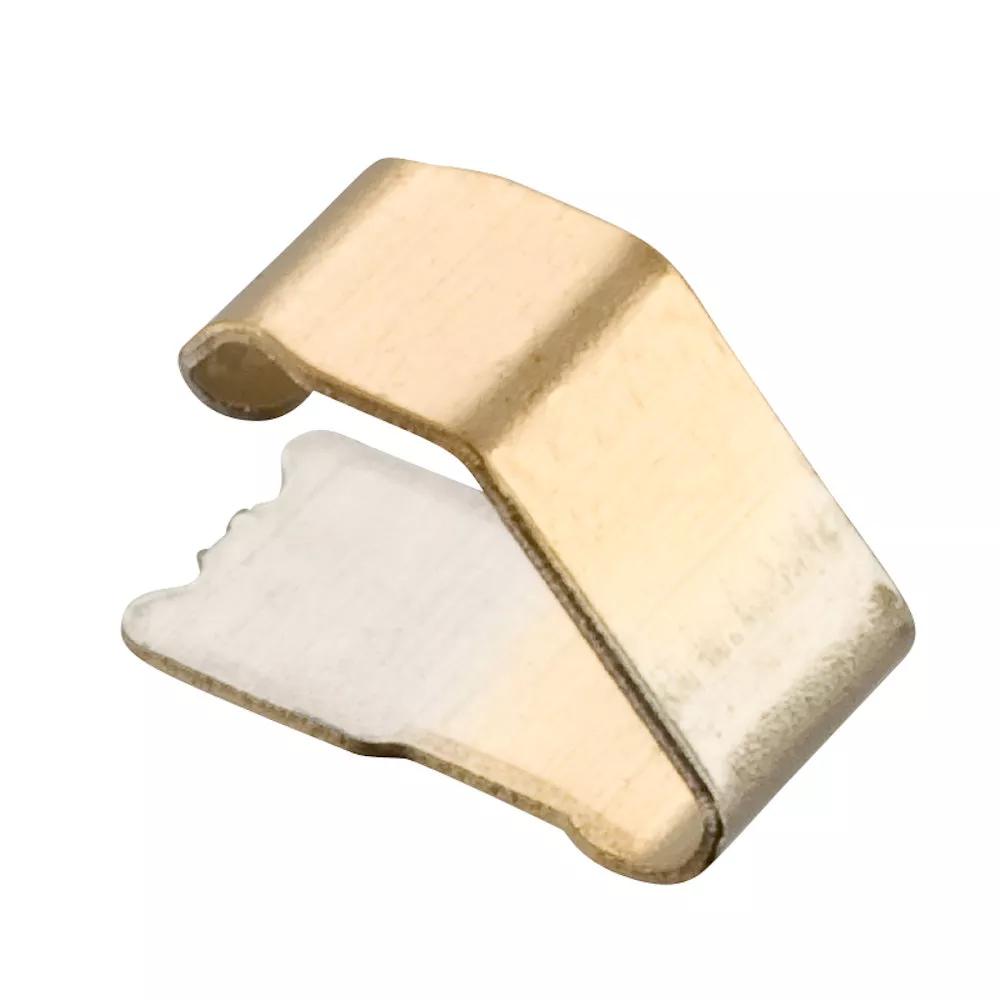

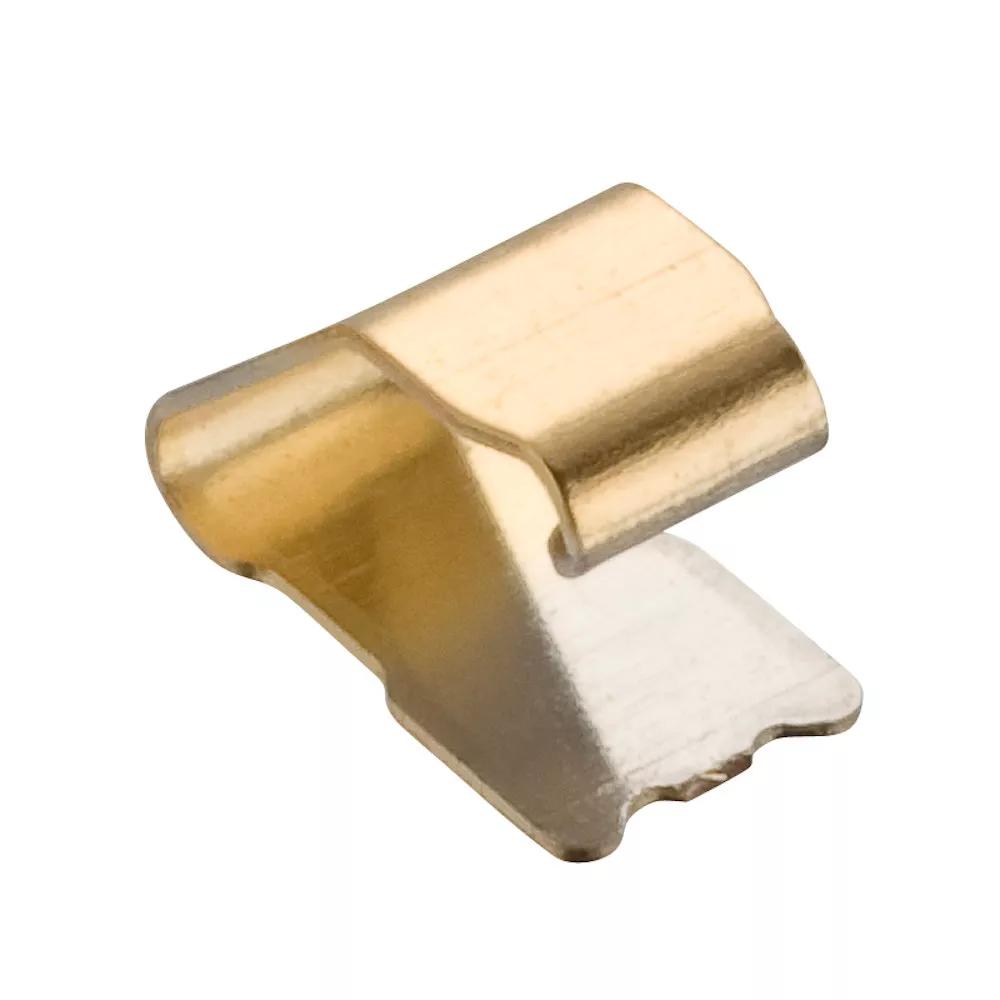

1.70mm SMT Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 1.7mm. Working height = 1.5mm, Minimum = 1.2mm.
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

4A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Titanium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.008g

Overall Dimensions (L x W x D) in mm:

2.70 x 1.50 x 1.70

Height of Connector above PCB:

1.70mm

Availability

51,270 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 38477
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 5795
Distributor Farnell
Location Europe
Quantity (Updated Daily) 4818
Distributor Anglia
Location Europe
Quantity (Updated Daily) 1515
Distributor Newark
Location USA
Quantity (Updated Daily) 665

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S7121R.pdf

ZIP

S7121-42R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT028 - Spring Contacts S7041, S7051, S7061, S7071, S7081, S7091, S7101, S7111, S7121 and S1761 Spring Forces

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S7121-42R product

INSTRUCTION SHEETS

PDF

Product Training Module - EMC Shielding Spring Contacts (spring fingers, grounding contacts)

OTHER DOWNLOADS

PDF

3D PDF file - S7121-42R_3D.pdf

PDF

Catalog page - Spring Contacts (C style)

PDF

Catalog page - Spring Contacts Specifications

PDF

Catalog page - Spring Contacts Introduction

PDF

SMT Spring Contacts - graph of complete range of heights and compression

PDF

Product Summary - SMT Spring Contacts
