M80-4001442

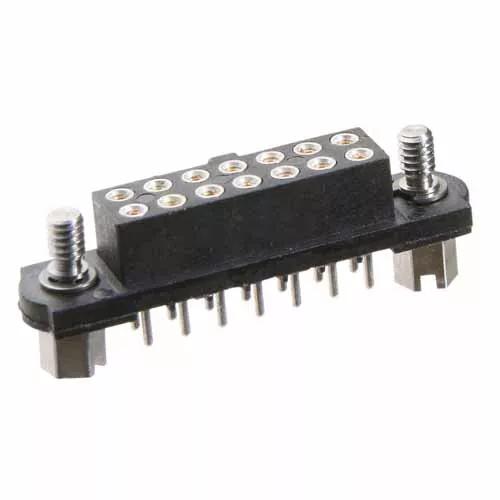

7+7 Pos. Female DIL Vertical Throughboard Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, 3mm PC Tail connector with Hexagonal slotted jackscrews – 14 contacts (7+7).
- Gold finish on contact area, Tin finish on termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Hex Slotted
Polarising Features:
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
14
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
1.683g
Overall Dimensions (L x W x D) in mm:
24.00 x 5.50 x 8.50
Thread Size:
M2
Height of Connector above PCB:
5.50mm
Length of Throughboard Tail:
3.00mm
Mating Profiles:
Availability
294 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
This connector has a 3mm PC tail length, but our PCB is 3mm thick – can you recommend a part with 4mm PC tail or longer, same design?
The same design with 4.5mm PC tail is M80-4011442. Everything else is identical to M80-4001442, just the tails are longer.
