Active Product

M701-370442

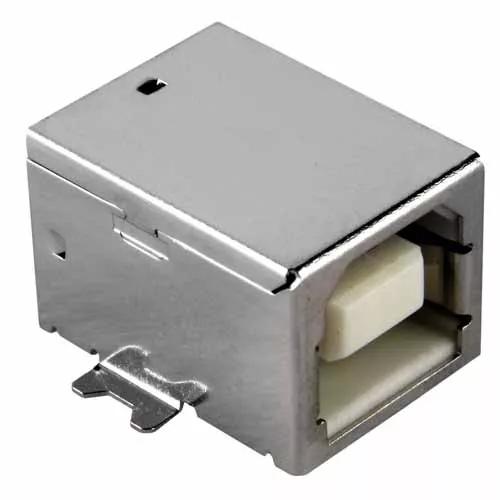

USB Type B Female SMT Conn.

I/O Connector

Add to Favorites

Loading… Check availability

1 similar products View products

Traceparts account required

Product Description

Horizontal Surface Mount.
Gold finish on contact area, Tin finish on termination.

M701-370442 - USB Type B Female SMT Conn.

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

1.5A per contact

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

White

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Individual Part Weight:

3.429g

Overall Dimensions (L x W x D) in mm:

16.00 x 17.15 x 12.35

Height of Connector above PCB:

10.85mm
