M40-4010646R

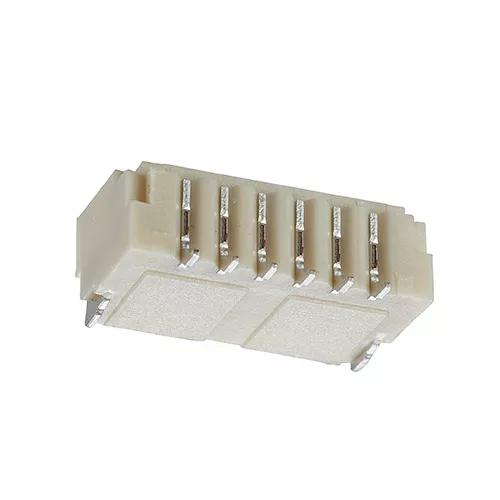

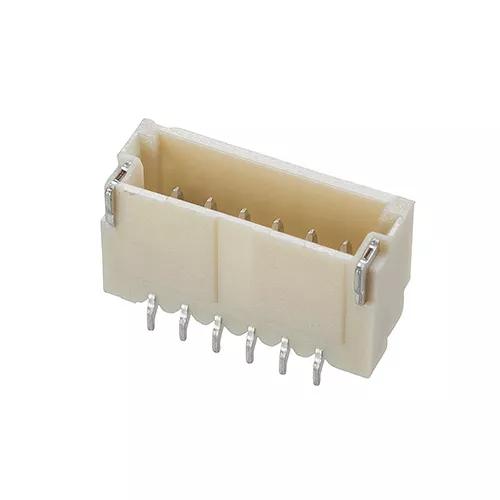

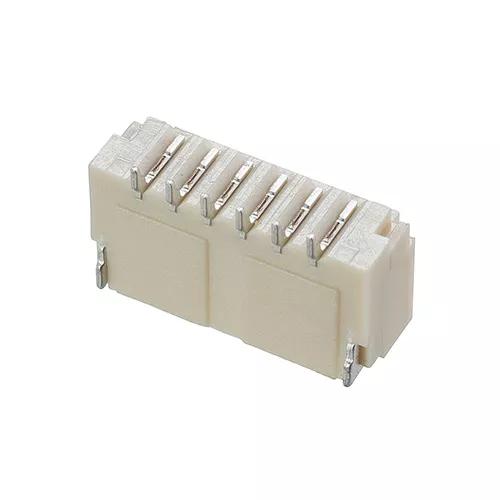

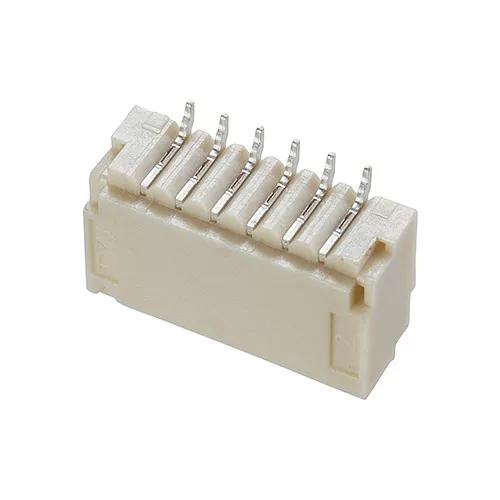

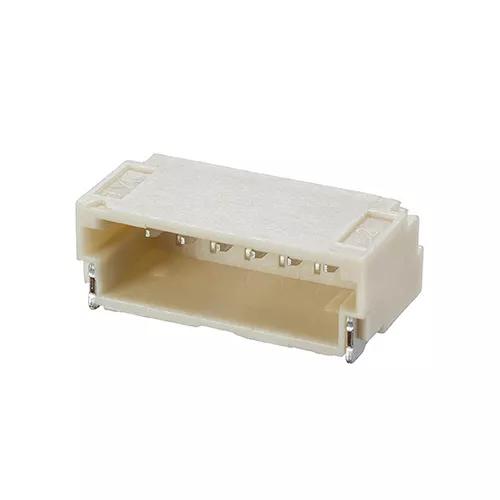

6 Pos. Male SIL Horizontal SMT Conn. (T+R)

1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

Add to Favorites

8,943 in stock   Check availability

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Single Row Male Horizontal connector, Surface Mount with Tin finish – 6 contacts.
  • Surface mount hold-down tabs, shrouded and polarized housing.
  • Packaged in Tape & Reel.

Technical Details

Specification

Contact Pitch:

1.00mm (0.039")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.2mm x 0.4mm

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Cream

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.13g

Overall Dimensions (L x W x D) in mm:

8.00 x 4.95 x 3.00

Height of Connector above PCB:

3.00mm

Frequently Asked Questions Ask a Question

Can you supply a mating connector in a PCB mount Version?

Sorry, but this range is cable-to-board only, we do not have a mating female connector that is board-mounted. For board-to-board, you will need to switch to a different range, such as the M40-310 and M40-320 connectors. You can see them in this section of the Catalog.

Was this answer useful?

How many mating cycles can be achieved using housing M40-1201500 and pre-cabled contacts M40-9000099? Are there any better choices that may maximise the number of mating cycles?

The durability (number of mating cycles) for this range is 50 operations. For the highest number of cycles, you will need to consider our high-reliability ranges – Gecko would be a good choice as it is the nearest in size. If you need any further assistance in choosing options, please contact our Technical Team.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?
