M30-6000246

2 Pos. Male SIL Vertical SMT Conn.

1.25mm (0.049") Pitch PCB Connector - M30 Cable-To-Board

Order Sample

Add to Favorites

289 in stock Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Single Row Male Vertical connector, Surface Mount with Tin finish – 2 contacts.
Surface Mount hold-down tabs, and windows for bump latches on mating connector.
Packaged in tubes.

M30-6000246 - 2 Pos. Male SIL Vertical SMT Conn.

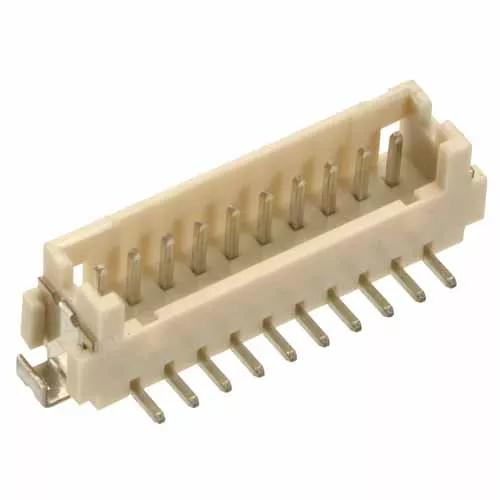

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.35mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T/66

Housing Colour:

Natural

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.123g

Overall Dimensions (L x W x D) in mm:

7.25 x 4.90 x 5.60

Height of Connector above PCB:

4.80mm

Mating Profiles:

Catalog page - M30 Connectors Specification, Mating Profiles
