Home > C90-3101F10SL-4P
Active

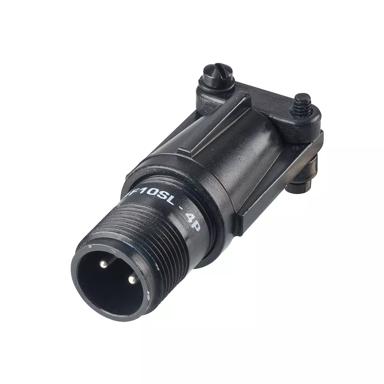

C90-3101F10SL-4P

2 Pos. Circular Cable Conn. Plug contact

Circular Connector equivalent to MIL-DTL-5015 (MIL-C-5015)

  • RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
  • Receptacle shell, 2 x Male contacts for 16-22AWG cable. Silver finish on contact area and solder termination.
  • For complete pin numbering or pin out information, see Component Specification C045XX.
Availability
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

16-22AWG

Mating Pin Size:

Ø1.6mm

Current Rating:

13A per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

2

Materials

Finish / Plating on Termination:

Silver

Finish / Plating on Contact Surface:

Silver

Base Material of Contact:

Copper Alloy

Housing Material:

Aluminium Alloy

Housing Colour:

Black

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

26.04g

Overall Dimensions (L x W x D) in mm:

54.10 x 25.94 sq.

Thread Size:

5/8-24UNEF

Availability

109 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 89
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 20

Questions & Answers Ask a Question

What is the recommended cable type for this connector?

The recommended cable size for connectors in the C90 range is 16-22AWG. We do not have any specific recommendations on cable type – this range is based on the same physical dimensions and specifications as MIL-DTL-5015, so any cable compatible with this standard will work for these connectors.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - C90-3101F.pdf

ZIP

C90-3101F10SL-4P CAD Model (ZIP file containing STP and IGES)

Download
PDF

C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for C90-3101F10SL-4P product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the C90 RoHS Circular Connector range, designed to MIL-DTL-5015

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Circular Cable Connector, Straight Plug

PDF

Catalog page - Circular Connectors Specification, Pin Numbering

PDF

Catalog page - Circular Connectors Introduction
