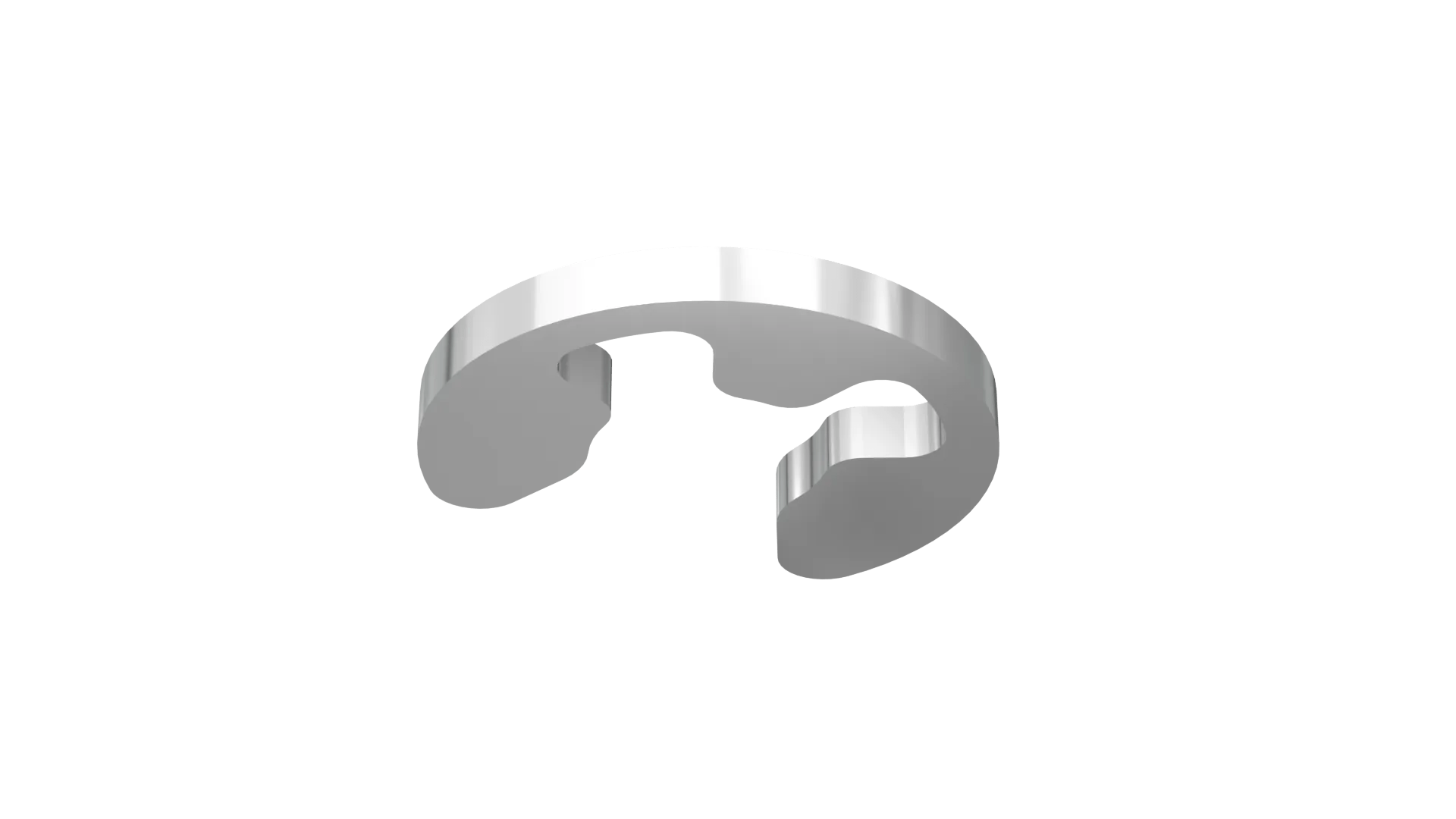

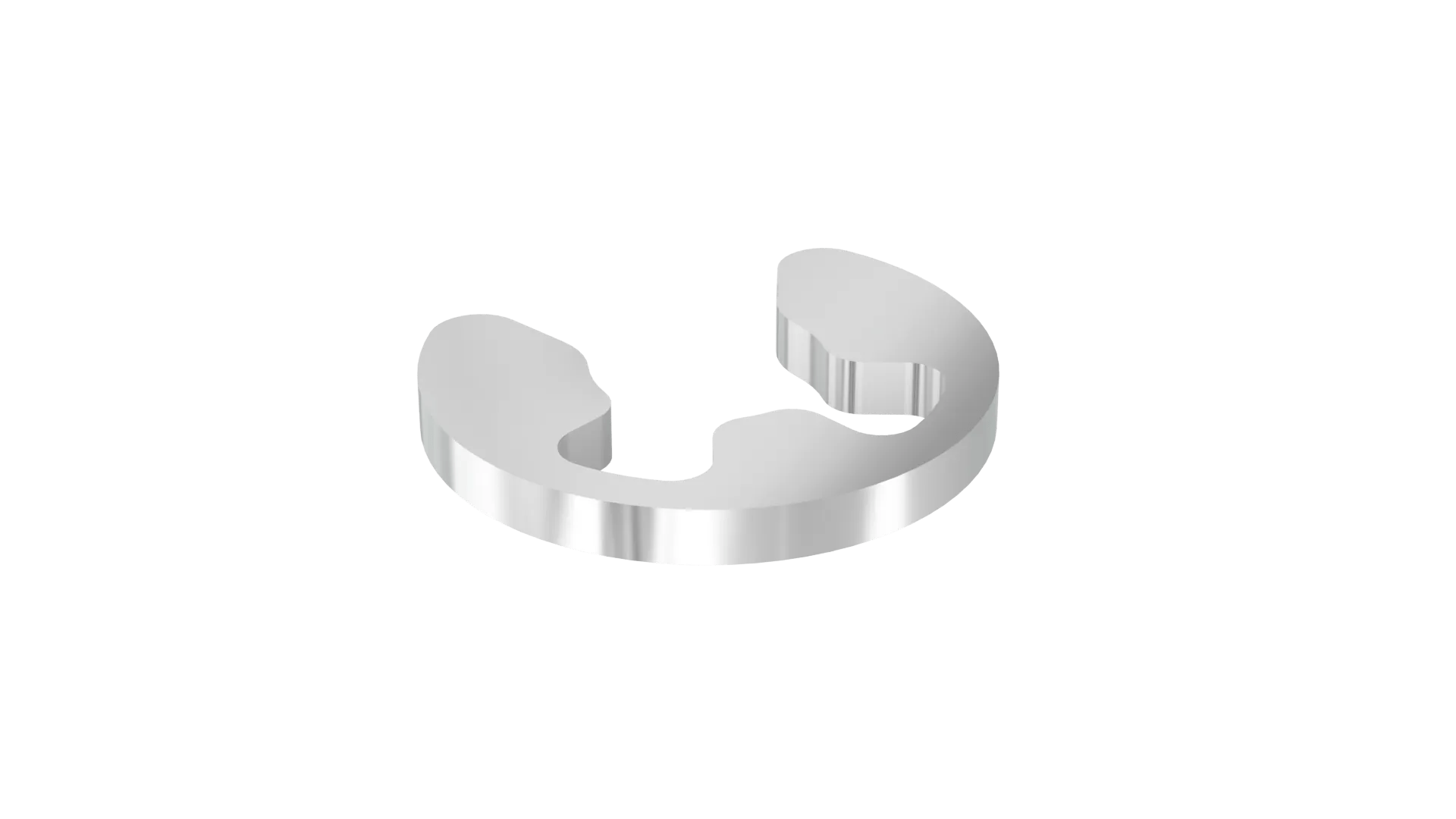

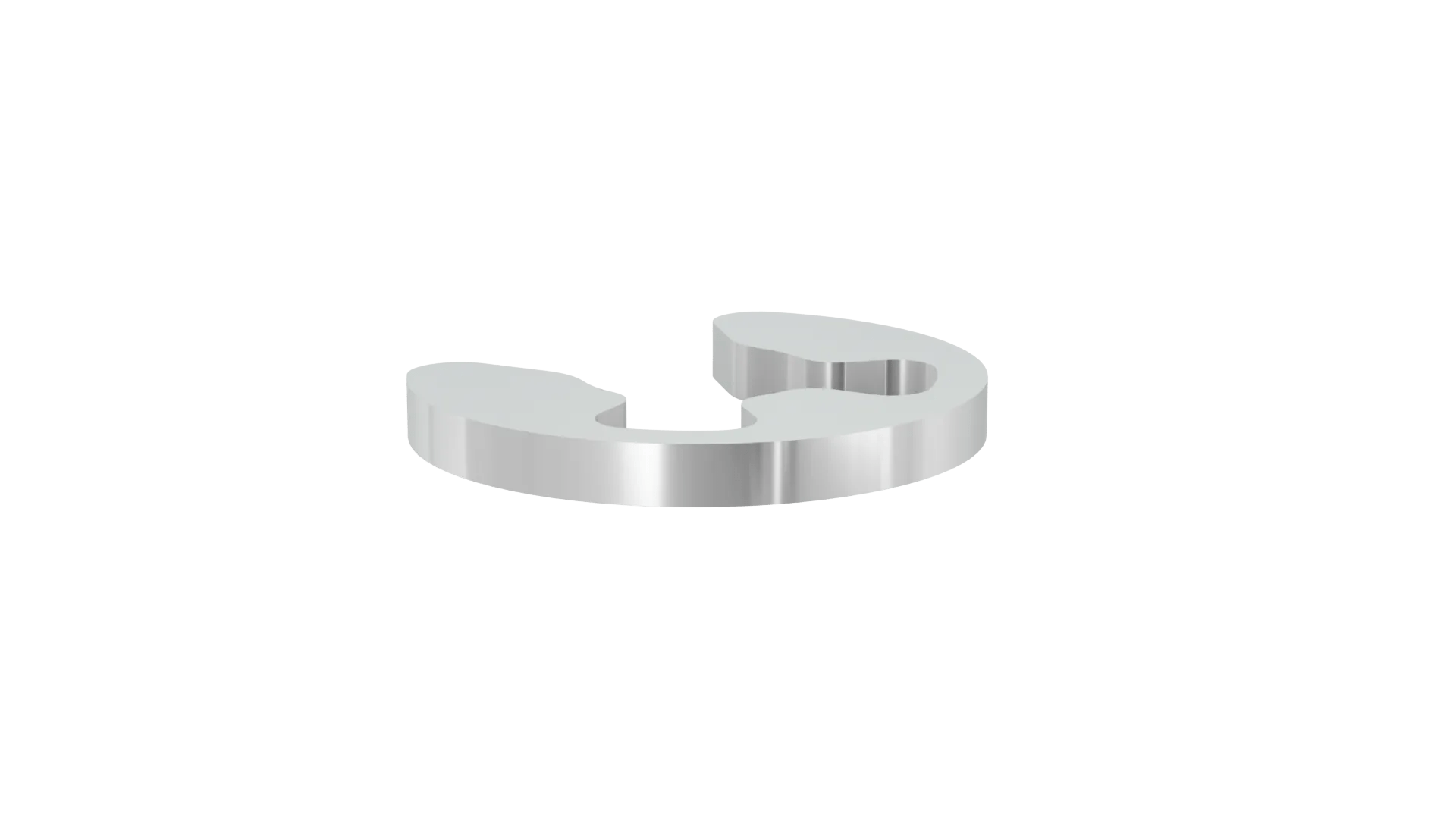

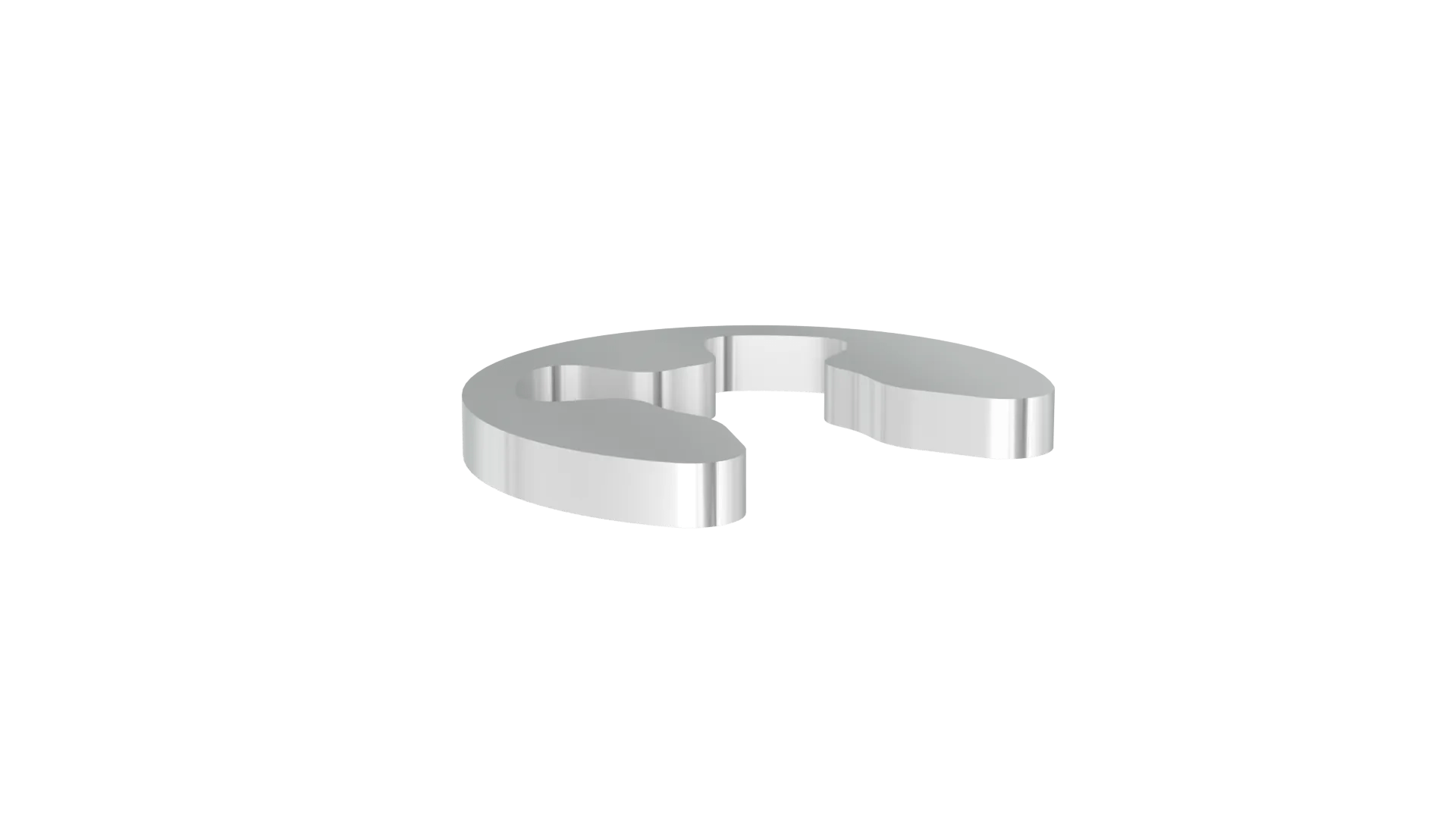

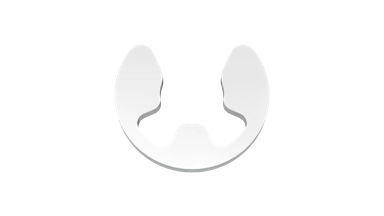

Spare E-Clip for Jackscrew Fixing

New

M80-2150000

Spare E-Clip for Jackscrew Fixing

2.00mm Pitch High-Reliability Connector - Datamate

  • Spare or replacement e-clip (circlip) for retaining floating jackscrews.

  • Use with spare jackscrews M80-2140000B (hex slotted head) or M80-2180000B (hex socket head).

  • E-clip assembly tool available - Z80-300. See instruction sheet IS-42 (assembly steps 7 and 8) for advice on use.

View Technical Details

Out of Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • Style of Jackscrews:

    Screw Fixing (floating) with Slotted Head,Screw Fixing (floating) with Hex Socket Head

  • Country of Origin:

    GB

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

Materials

  • Base Material of Contact:

    Stainless Steel

  • Packaging Style:

    Bulk/Loose

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    0.010g

  • Dimensions:

    0.30 x Ø2.90

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M80-2140000B.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

Product Information

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Datasheet - Datamate Mix-Tek range (HRi)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-2150000 product

  • RoHS - M80-2150000
