Z80-300

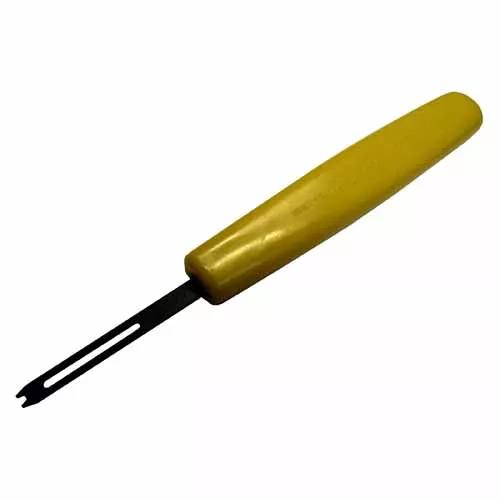

E-clip Tool for Datamate backshell kit assembly


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Tooling

  • Used for assembling E-clips (circlips) to the floating jackscrews in Datamate Metal Backshell kits for cabled connectors.

  • See instruction sheet IS-42 for advice on use.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details
