Image may be representative. Refer to the product title for more information.

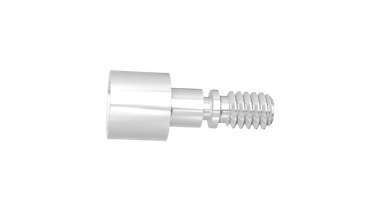

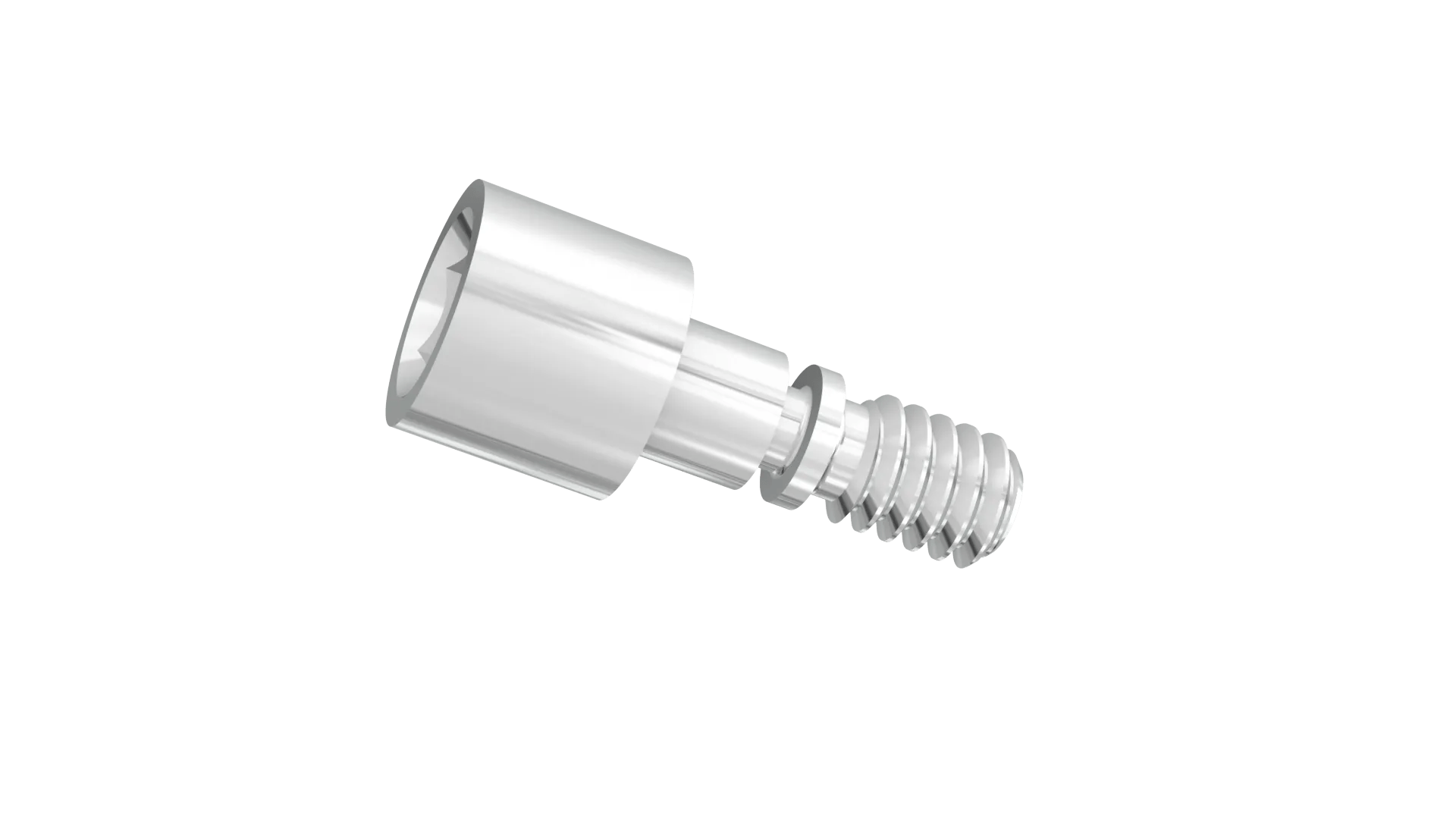

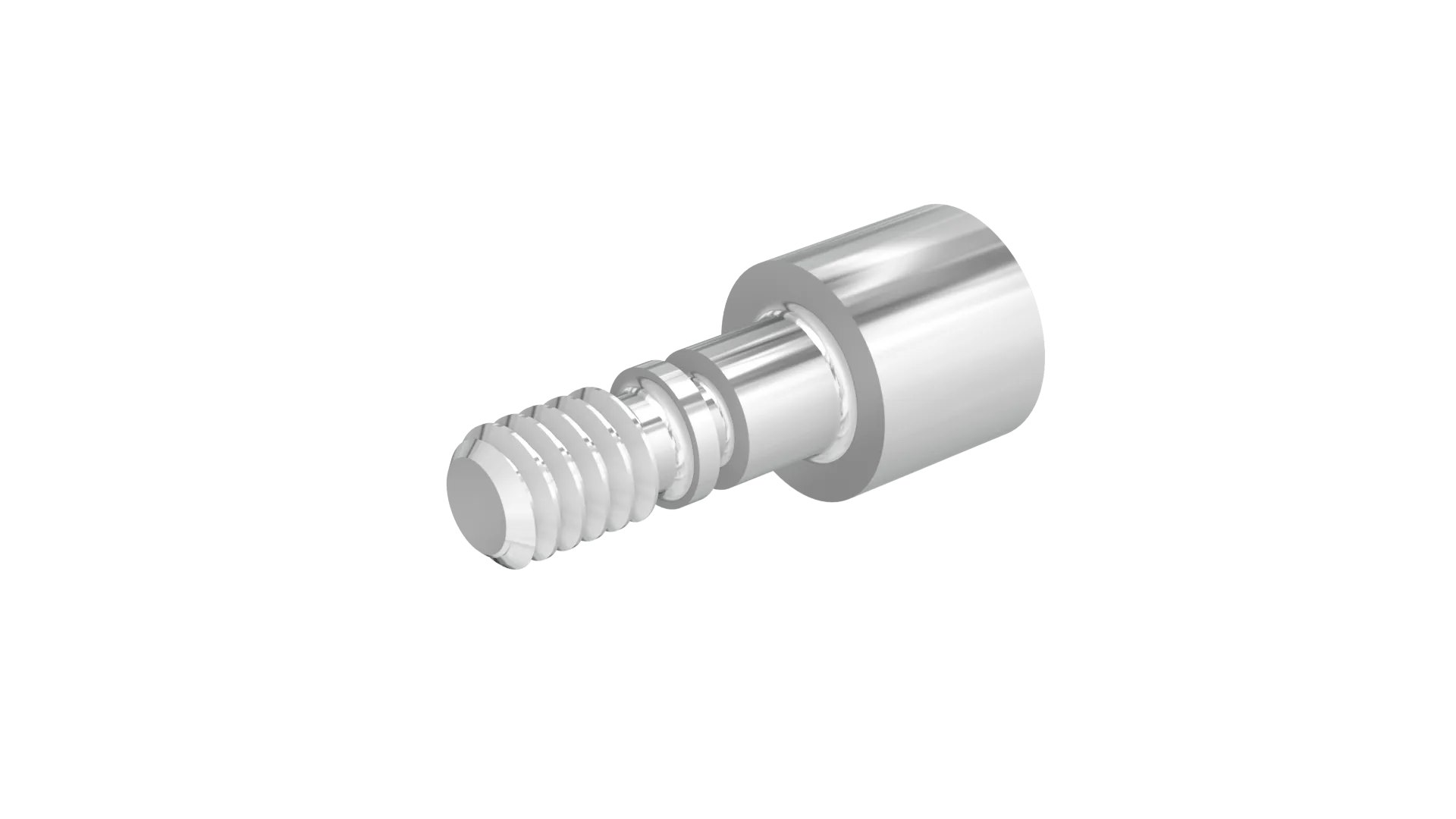

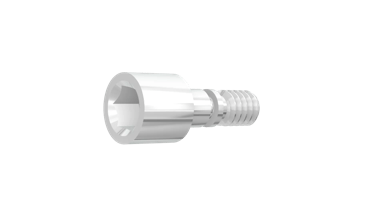

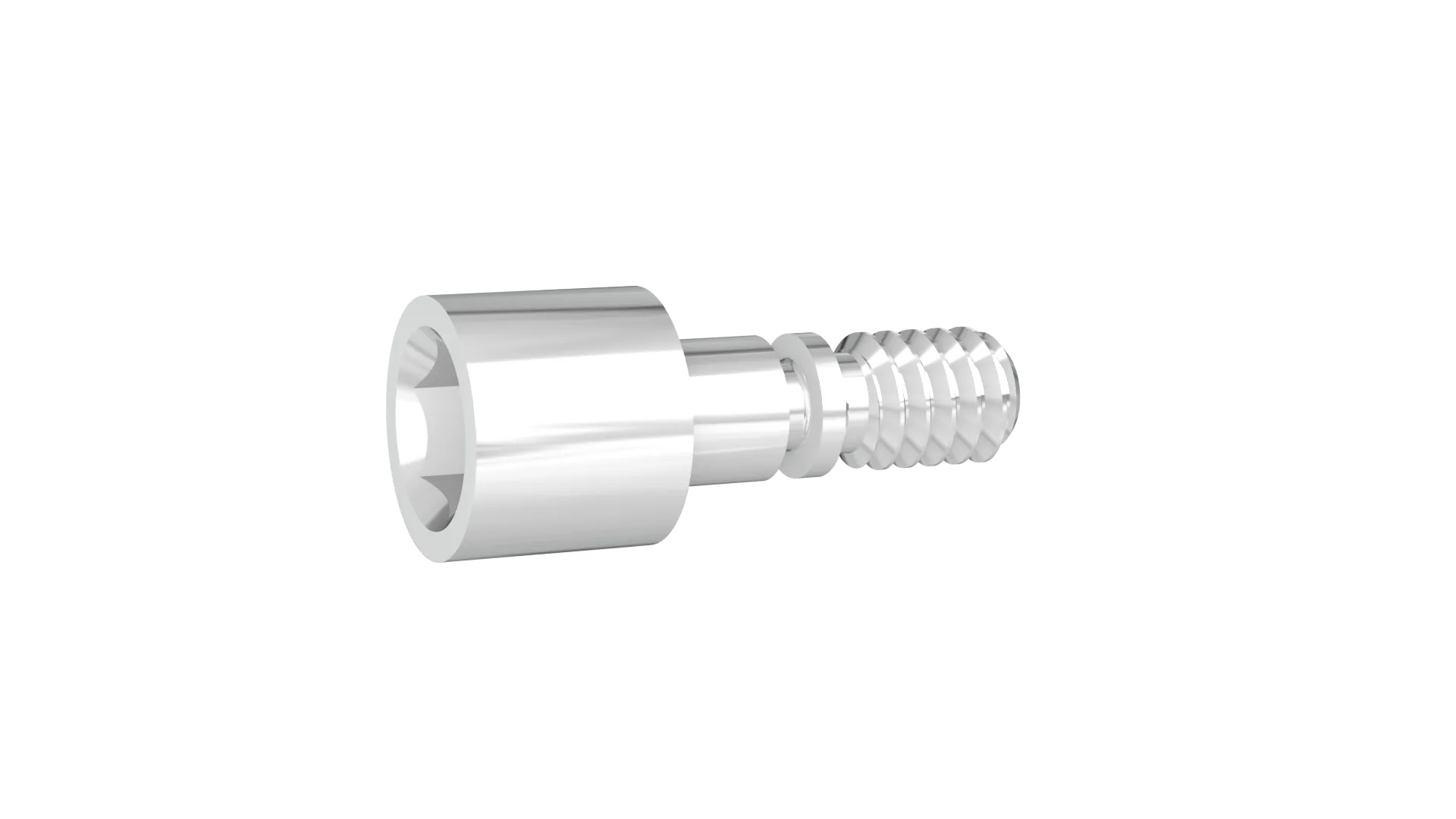

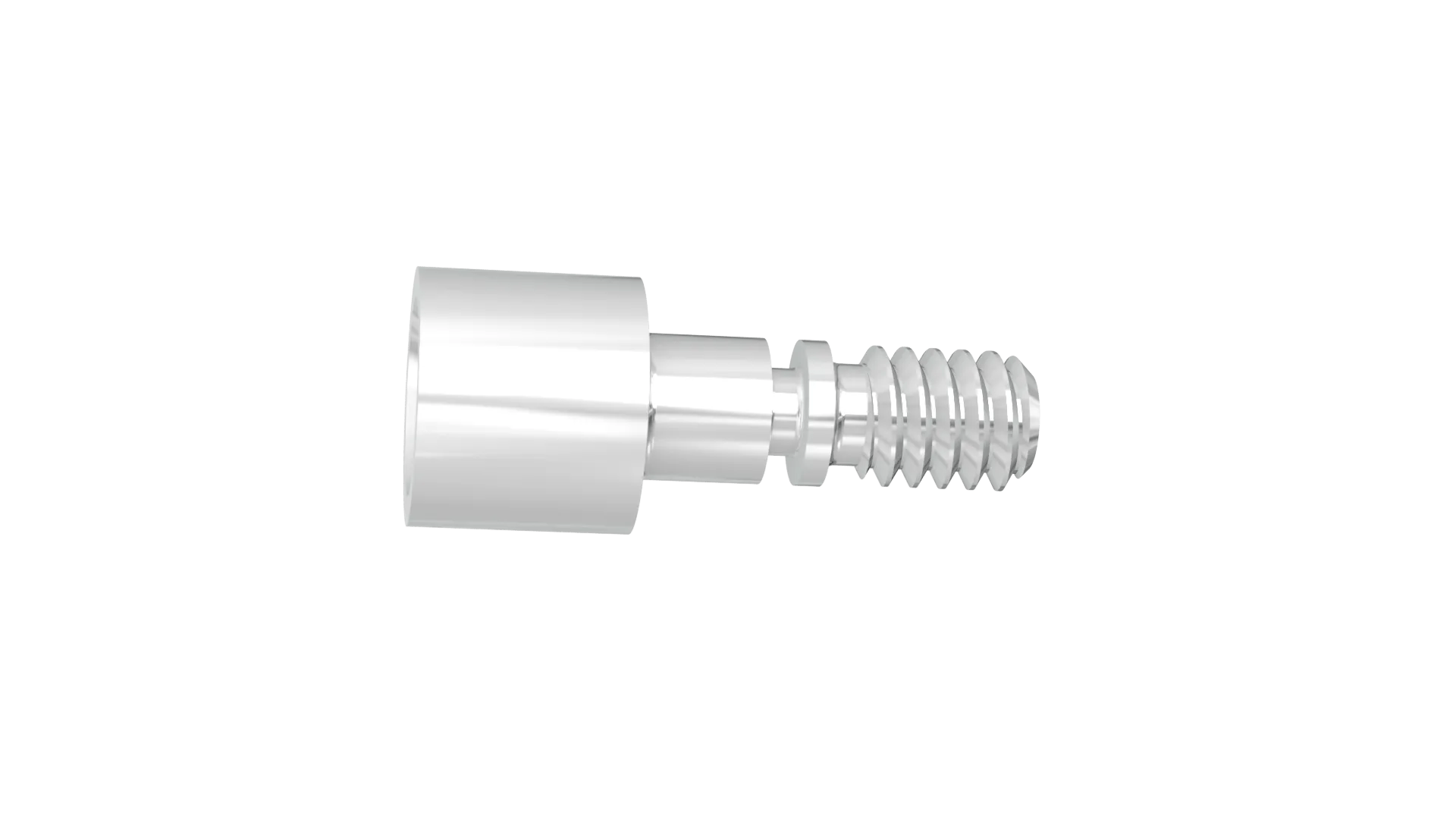

Spare or replacement floating jackscrew, with hexagonal socket head style. Used on jackscrew type F2.
Use with spare e-clip M80-2150000.
E-clip assembly tool available - Z80-300. See instruction sheet IS-42 (assembly steps 7 and 8) for advice on use.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Country of Origin:
GB
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Base Material of Contact:
Stainless Steel
Packaging Style:
Bulk/Loose
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
0.278g
Dimensions:
8.50 x Ø3.50
Thread Size:
M2
