Image may be representative. Refer to the product title for more information.

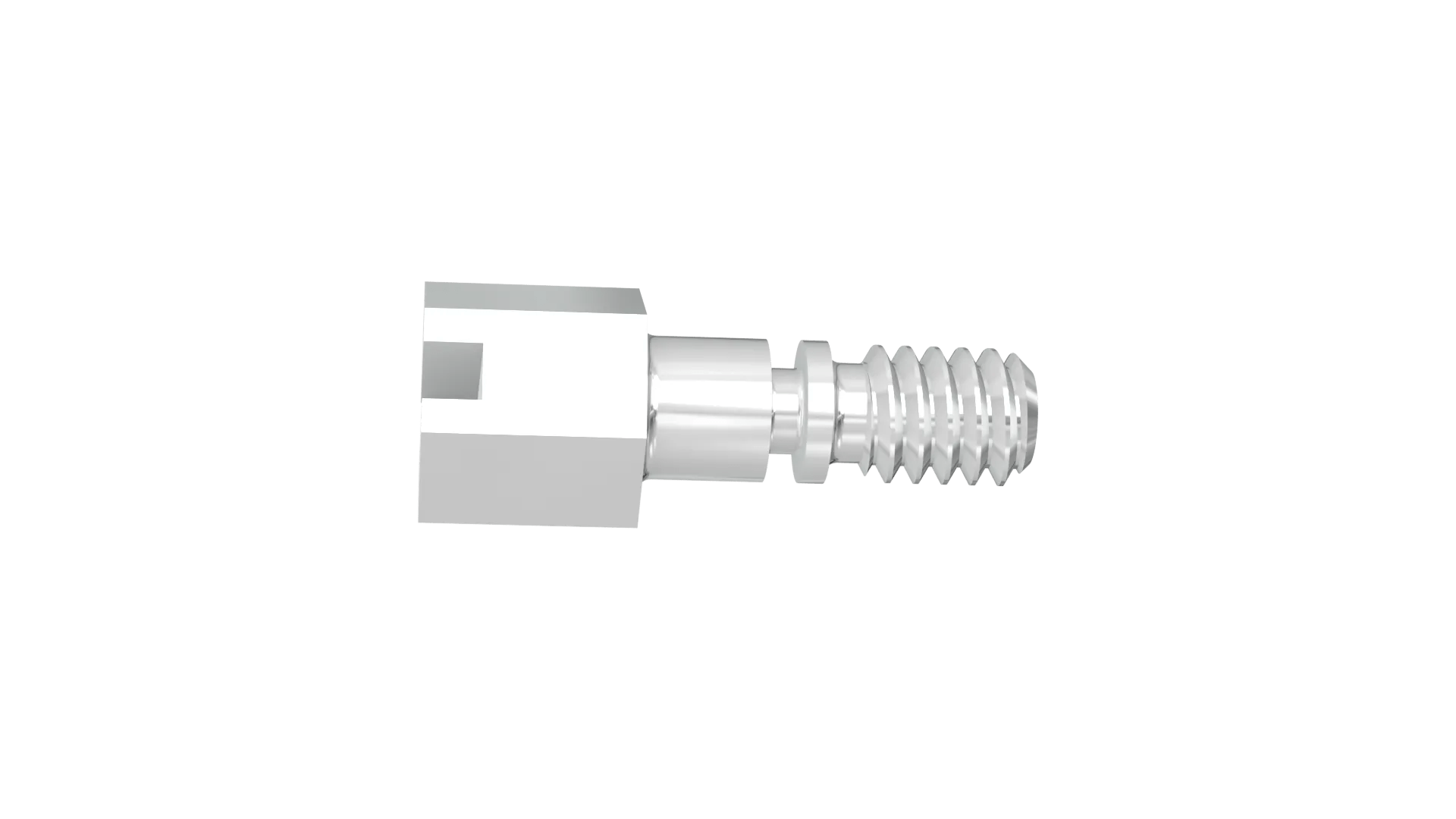

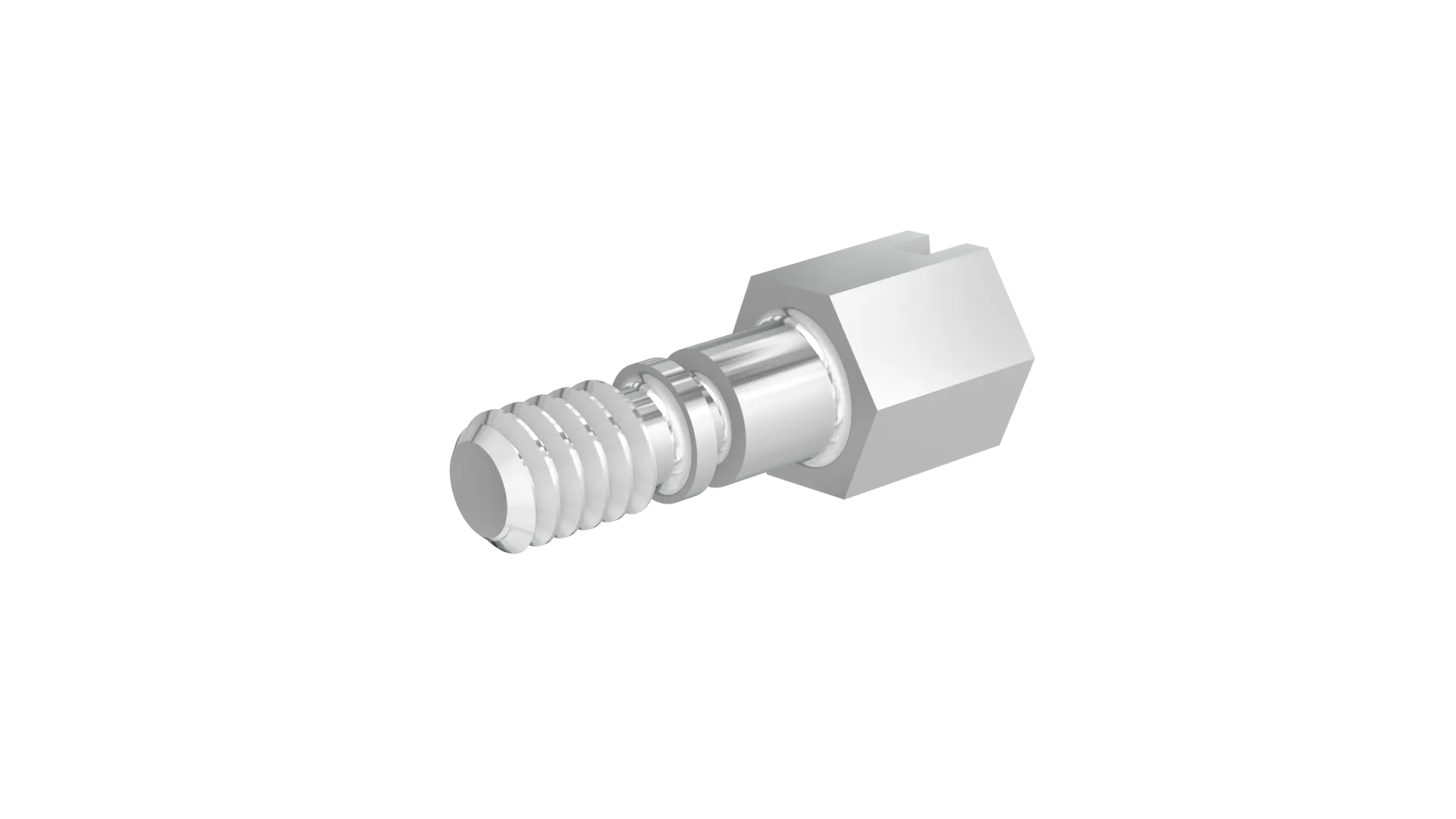

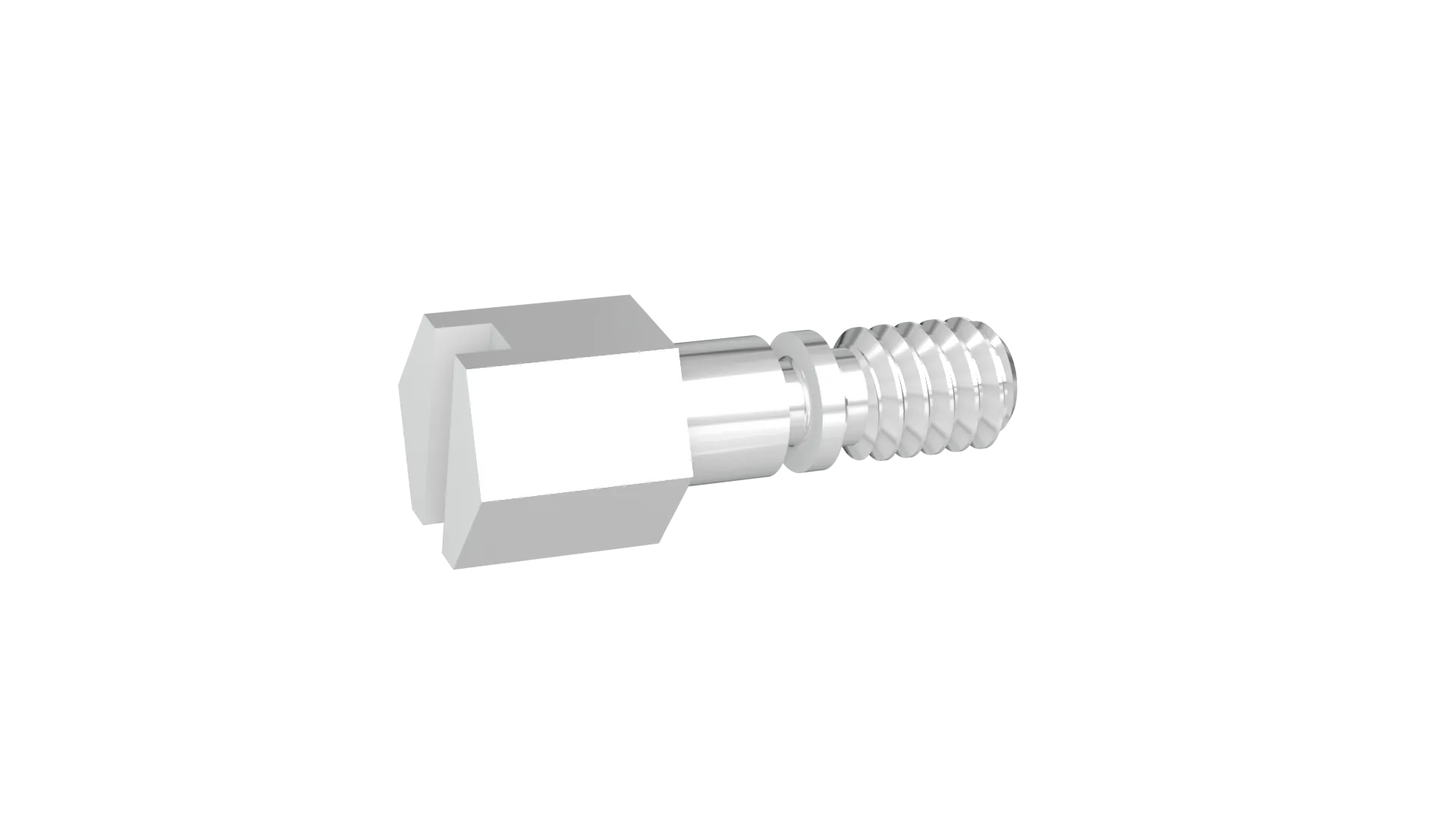

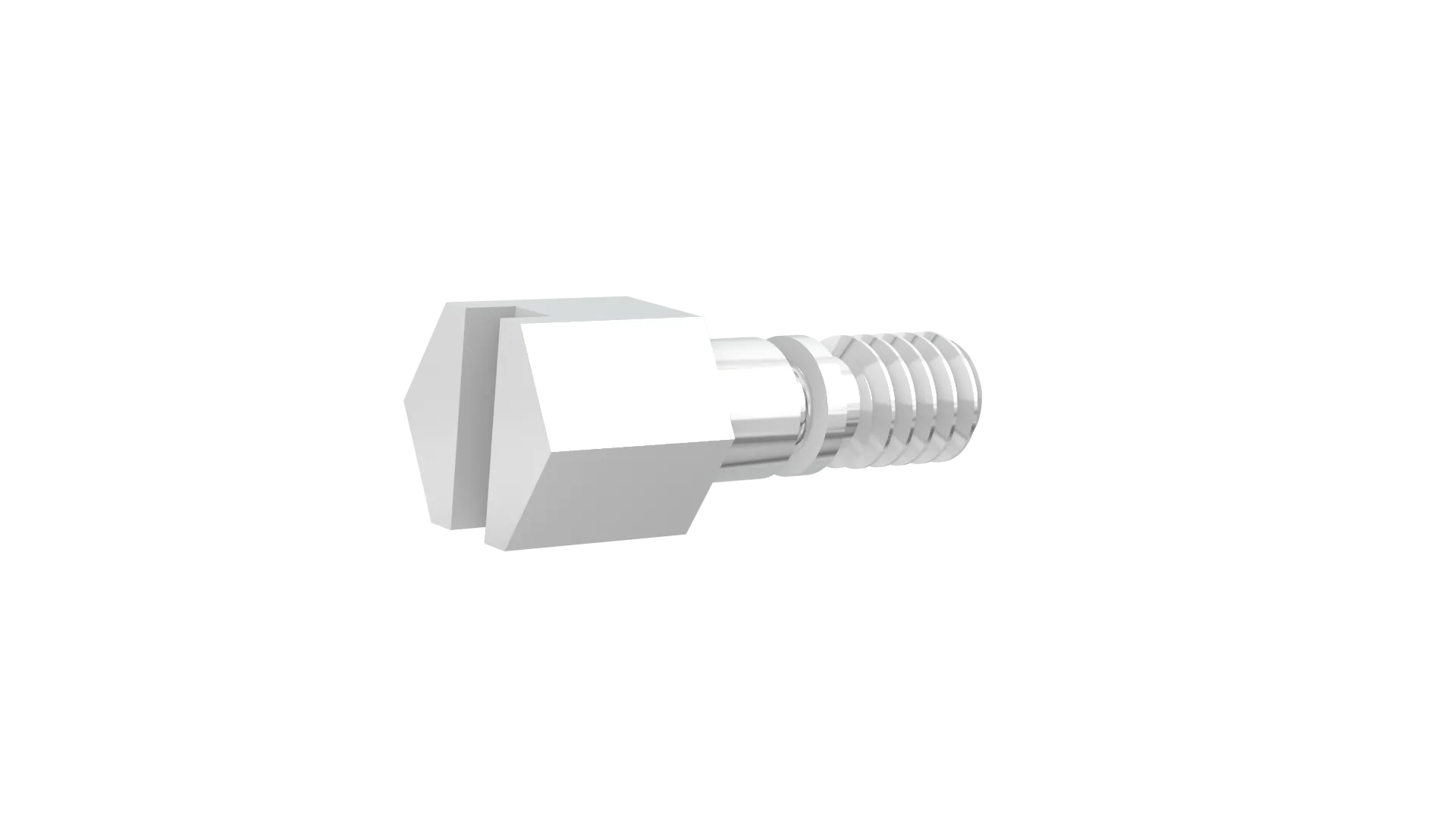

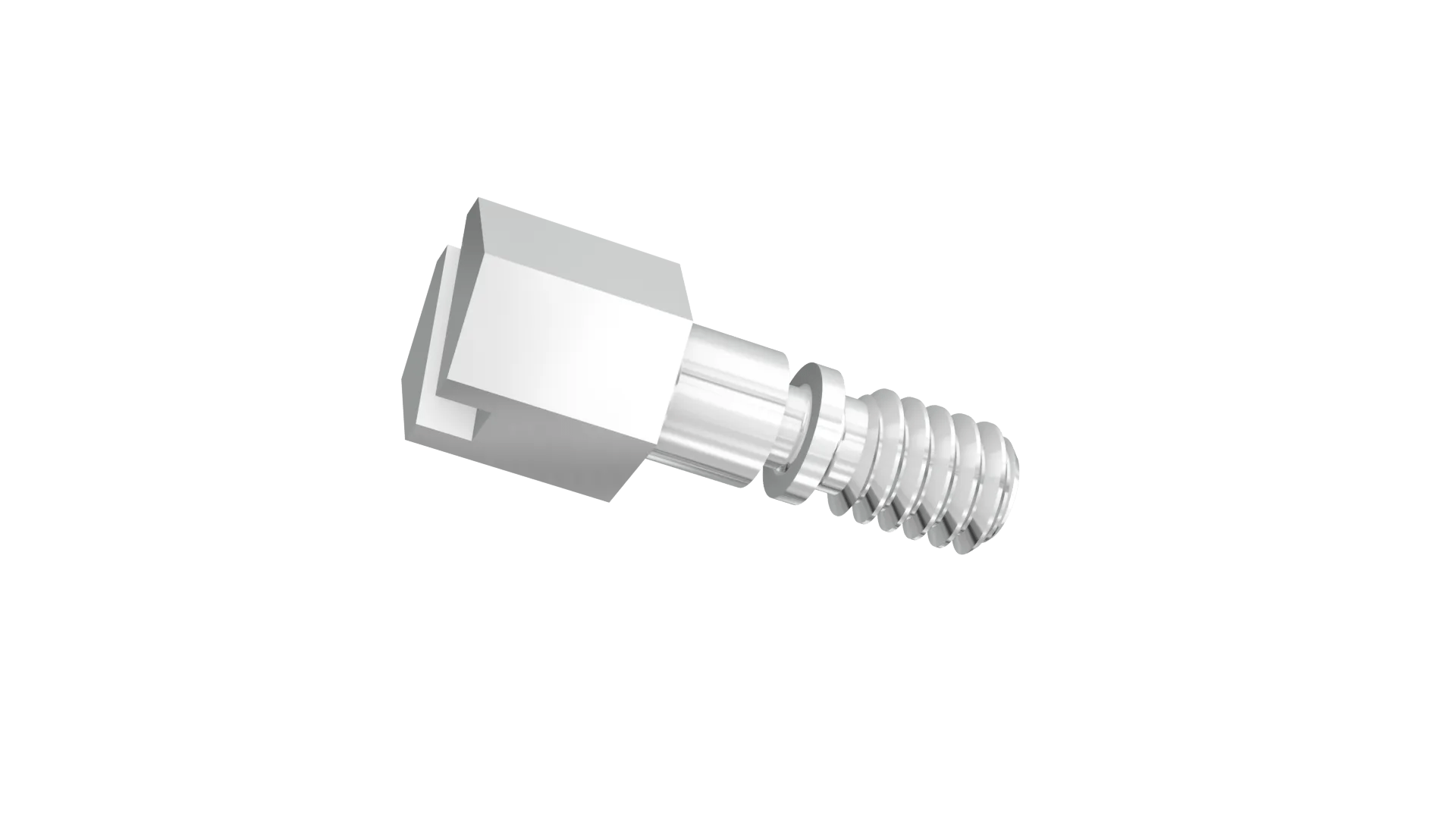

Spare or replacement floating jackscrew, with hexagonal slotted head style. Used on jackscrew type F1.
Use with spare e-clip M80-2150000.
E-clip assembly tool available - Z80-300. See instruction sheet IS-42 (assembly steps 7 and 8) for advice on use.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Style of Jackscrews
Screw Fixing (floating) with Slotted Head
Country of Origin
GB
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Base Material of Contact
Stainless Steel
Packaging Style
Bulk/Loose
Dimensions
Contact Pitch
2.00mm/4.00mm (0.079"/0.157")
Weight
0.275g
Dimensions
8.50 x 3.00 A/F hex
Thread Size
M2
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-2140000B.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Information
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-2140000B product
RoHS Declaration - M80-2140000B
