Spring Contacts
Spring Loaded Contacts and Contact Pads
By using either spring forces inherent in bent metal, or an encapsulated miniature spring, these contacts can provide a single contact point for connection, without any specific style of mating connector required. Just a plain conductive surface is required, either to conduct signal current, or for grounding purposes.

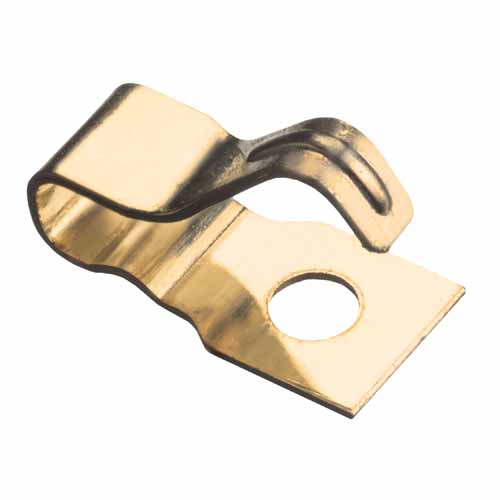

SMT Spring Contacts
A comprehensive range of single piece spring contacts, suitable for shielding, grounding, mobile phone antenna and other general electrical connection applications. Also known as antenna contacts, grounding contacts or shield fingers.
- Development Kit DEV-001 with 16 different contacts and free refills
- 30 different designs, ranging from 1.23mm to 7.25mm vertical free heights
- Option of horizontal spring contacts for 90 degree connection
- Protected tip options to prevent hooking
- Positive stop options, to prevent over-stressed contacts
- Mounted in a row, the contacts can provide an excellent RFI shielding connection for metal doors or other cabinet enclosures
- The contact design ensures positive contact with the mating surface, and is tolerant to both wiping and sliding action
- All contacts are Surface Mount, supplied in Tape and Reel packaging for automated assembly placement

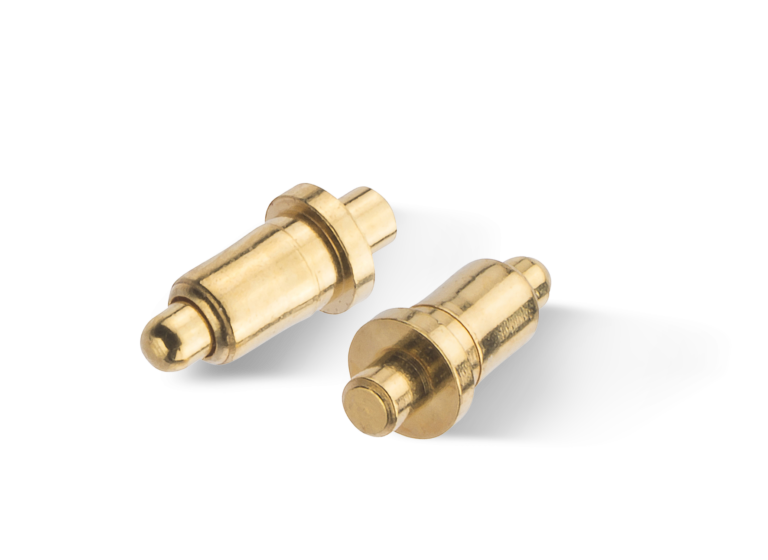

Spring Loaded SMT Contacts – Pogo Pins
Spring loaded contacts consist of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have a high durability, exceeding 10,000 mating cycles.
- Surface mountable vertical spring loaded contact pins, free height from 2.8mm to 8.2mm
- Option of Throughboard peg – can be used for Plated-Through-Hole soldering, or just as a SMT location peg
- Rounded contact heads with Gold finish for minimal wear
- Some options supplied in Tape and Reel packaging for automated assembly systems
ATE Test Probes
Probes ideal for automated test equipment (ATE), mounted in a “bed of nails” layout. Consists of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the spring force required to maintain positive contact. All have exceptional durability to cope with multiple testing cycles.
- Throughboard design for glue or solder application
- Single piece, or two-piece probe and sleeve – probe can be replaced at end of life without de-soldering
- A variety of head style choices, for contact through contamination or leaving no contact marking
- Durability exceeds 100,000 mating cycles
- Choice of end terminations for wire-wrap, crimp or solder to test leads

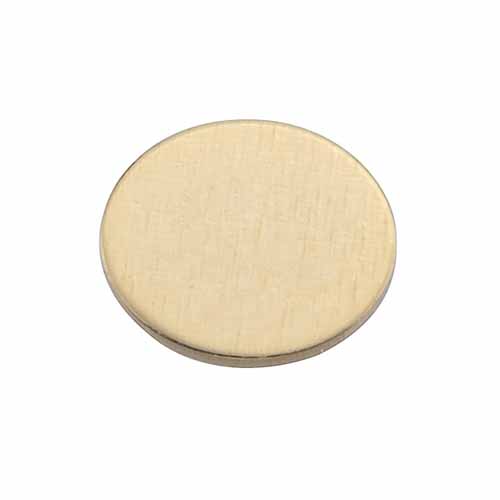

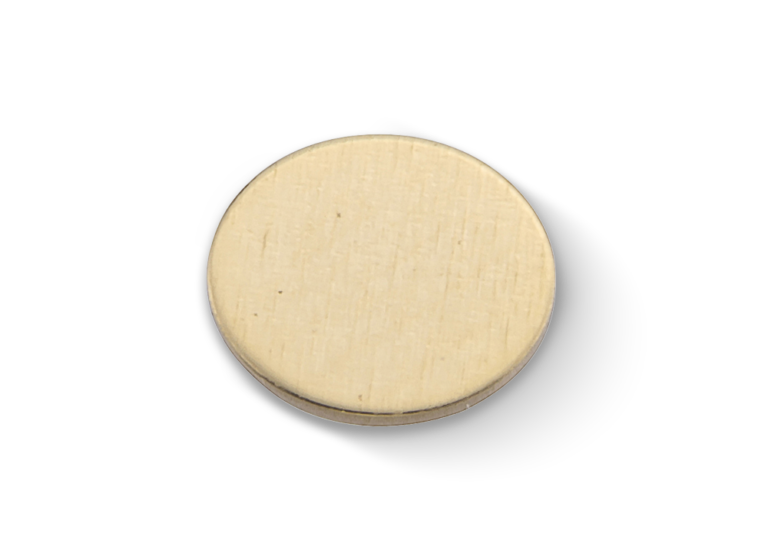

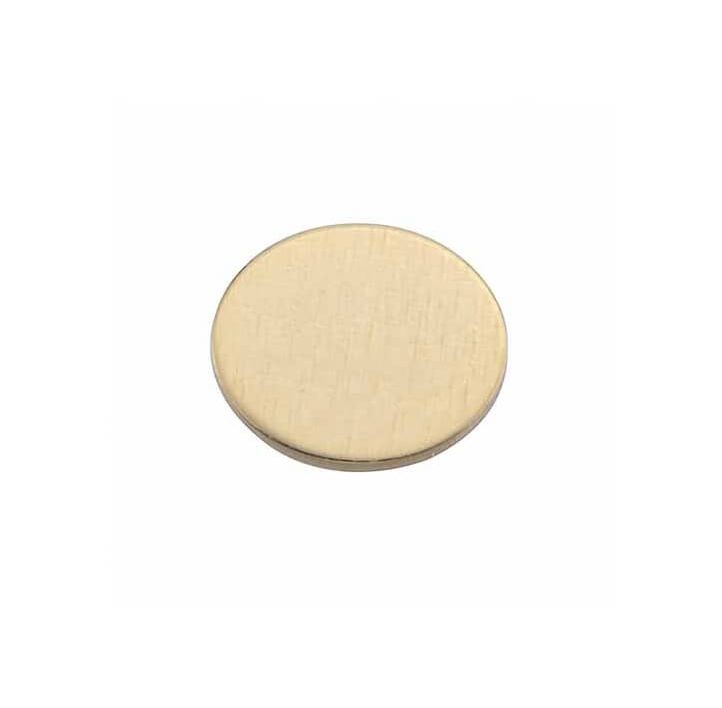

SMT Contact Pads
Multi-purpose flat contact pads for Surface Mount fixing – thicknesses between 0.1mm and 0.5mm. Ideal for providing a more robust surface than direct track contact.
- Supplied in Tape and Reel packaging for automated assembly systems
- Gold finish for maximum wear resistance
- Choice of contact pad shapes – square, round or oval
Technical Details
SMT Spring Contacts
Material
Phosphor Bronze, Titanium Copper or Cupro-Nickel – Gold or Tin (over Nickel) finish
Current
1A to 14A (see individual product)
Free Heights
1.23mm to 10.00mm
Working Heights
0.90mm to 9.50mm
Contact Styles
- Antenna Contact with Positive Stop
- Antenna Contact – Extended C style
- Spring Contact – C style
- Spring Contact – Box style (protected tip)
- Spring Contact – Multi-Directional (can be used in either vertical or horizontal orientation)
Pogo Pins / Spring Loaded Contacts
Materials
Brass plunger and barrel, Gold finish. Stainless Steel spring.
Current
1A or 2A per contact
Durability
10,000 mating cycles
Operating Temperature
-40°C to +85°C
ATE Test Probes
Materials
Copper alloy plunger and barrel, Gold or Nickel finish. Steel spring.
Current
1.5A, 2A or 3A (check individual product)
Durability
>100,000 mating cycles
Operating Temperature
-40°C to +180°C
Head Styles
- Spear or Pointed (Convex)
- Rounded – Convex Radious or Spherical Radius
- Inverted – Concave
- Multi-point – Tulip, Crown, Serrated
SMT Contact Pads
Material
Beryllium Copper, Gold finish
Current
6A
Operating Temperature
-40°C to +180°C
Downloads
Technical Documents
Catalog & Brochures
Test Reports
Browse the Range
ATE Test Probes
Probes designed for manual test jigs or automated test equipment (ATE), also known as “bed of nails”. Single and two-part…
View all
Pogo Pins
Pogo pins consisting of a plunger (or head), barrel (or body), and a fully encapsulated fine spring, to provide the…
View all
SMT Contact Pads
Multi-purpose flat contact pads for Surface Mount fixing – thicknesses between 0.1mm and 0.5mm. Supplied in Tape and Reel packaging…
View all
SMT Spring Contacts
Over 30 designs of single-piece SMT spring contacts, in a wide variety of designs – positive stop, horizontal connection, protected…
View allHow can we help you?
If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
