Active

Z80-294

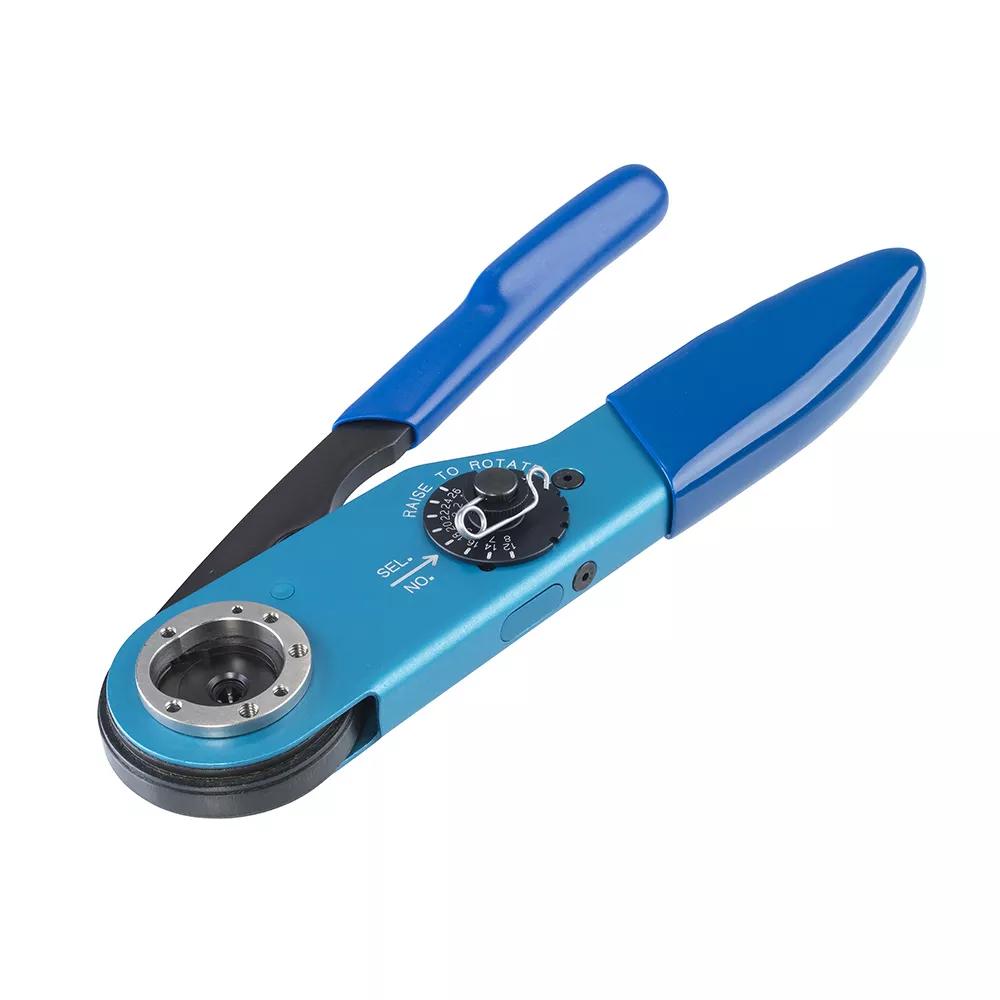

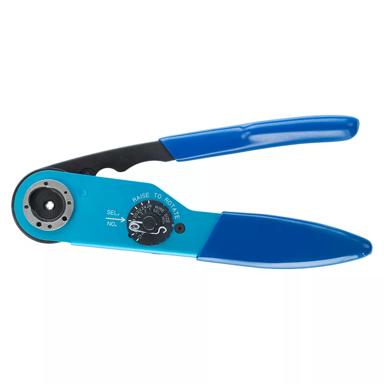

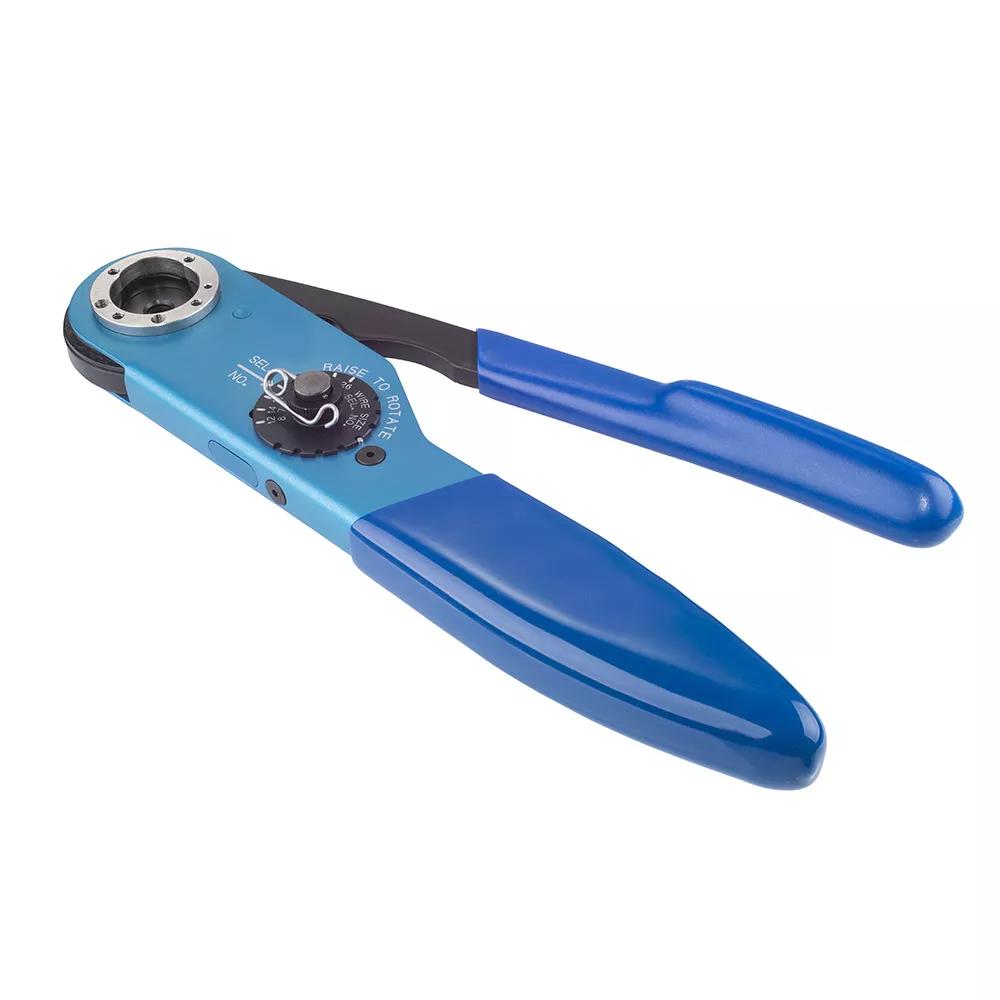

Hand Crimp Tool

4.00mm Pitch High-Reliability Connector - Datamate Power Tooling

Hand Crimp Tool for Datamate Mix-Tek Power Crimp contacts.
Suitable for power contacts M80-328, M80-329, M80-338, M80-339.
Use with Positioner Z80-295.

Availability

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

2.00mm (0.079")

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

333.4g

Overall Dimensions (L x W x D) in mm:

260.00 x 70.00 x 35.00 (in box)

Availability

10 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - Z80-294.pdf

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-29 - Z80-294 Hand Crimp Tool Instruction Sheet

PDF

Catalog page - Datamate Tooling
