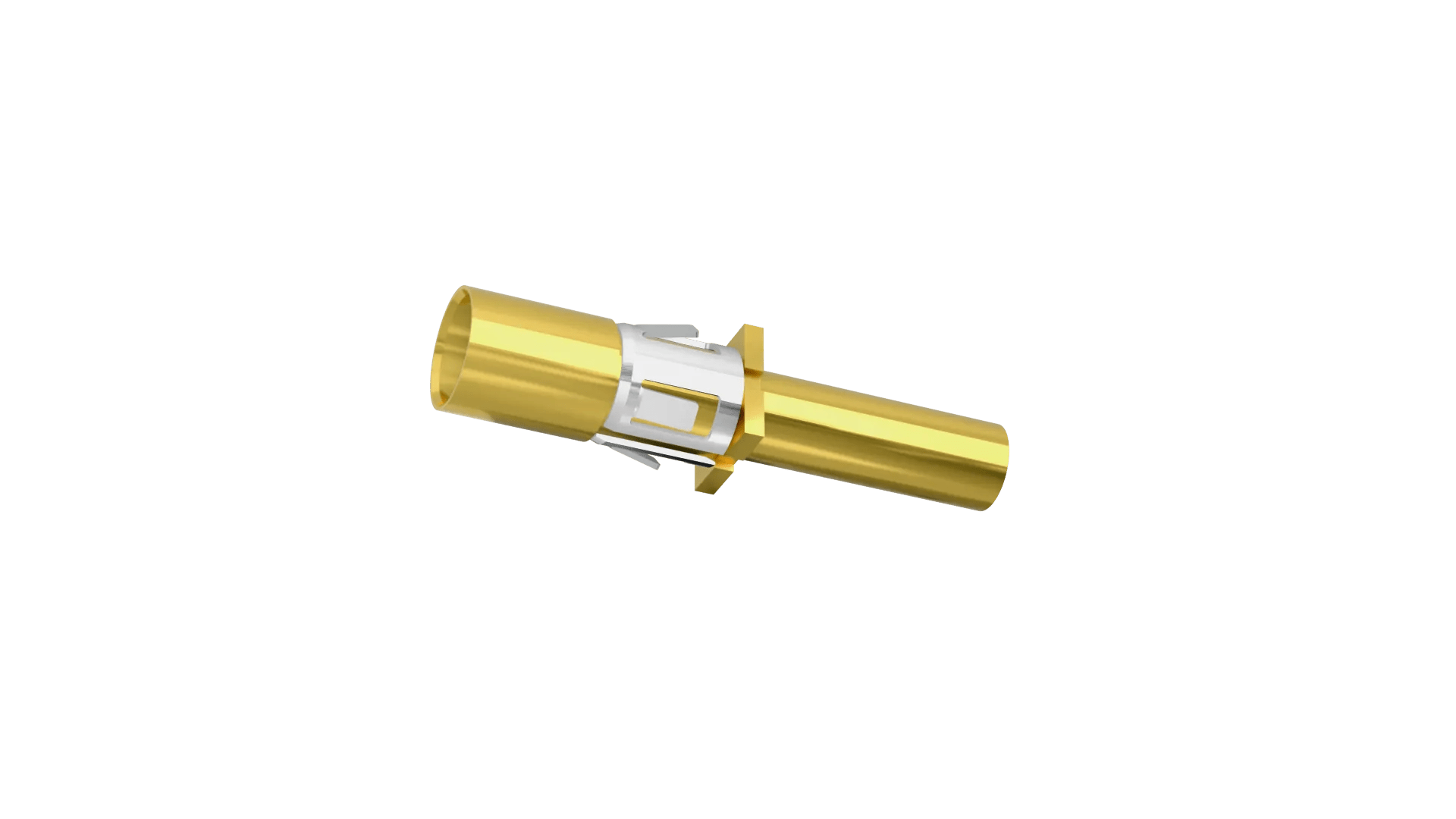

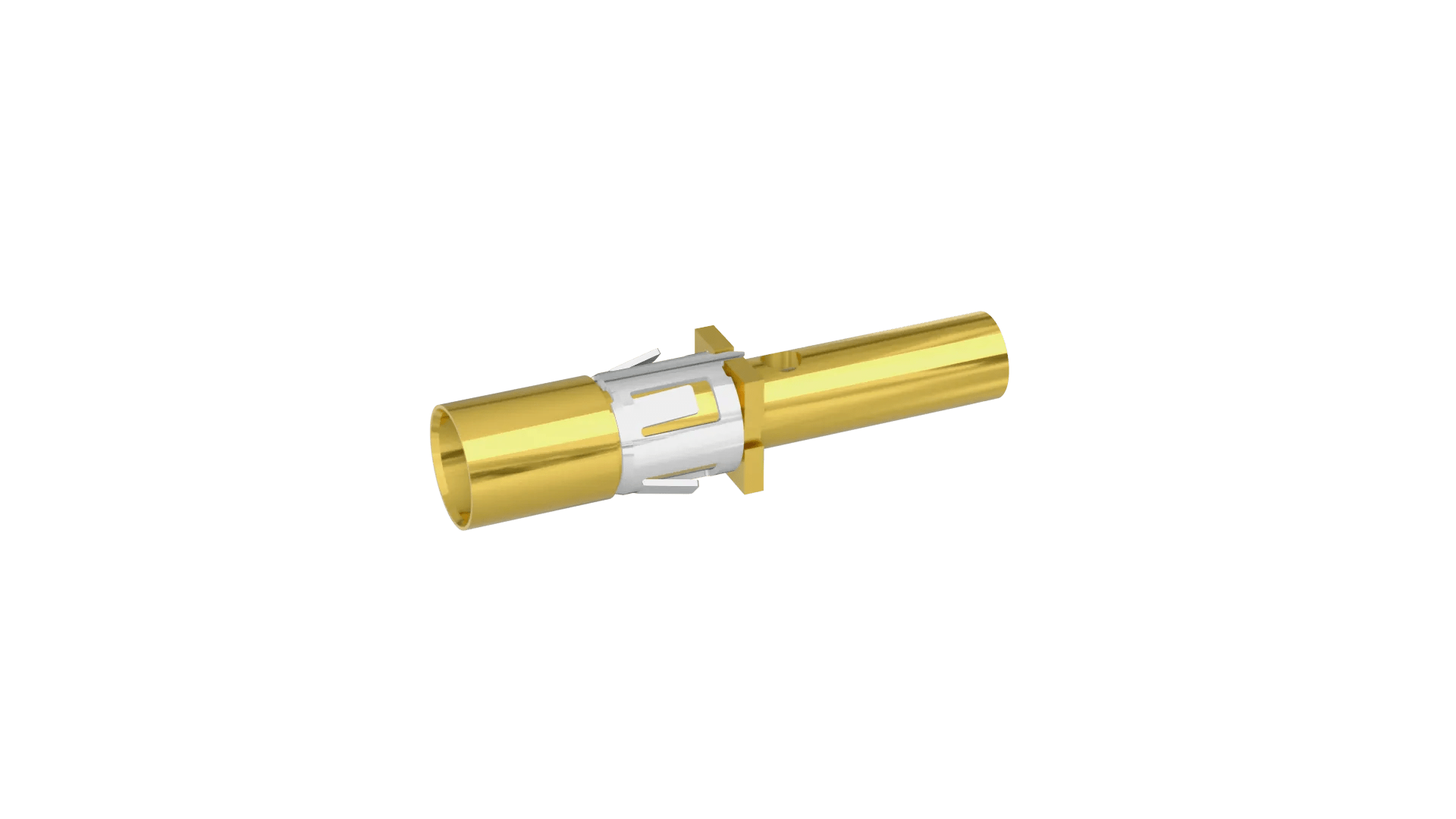

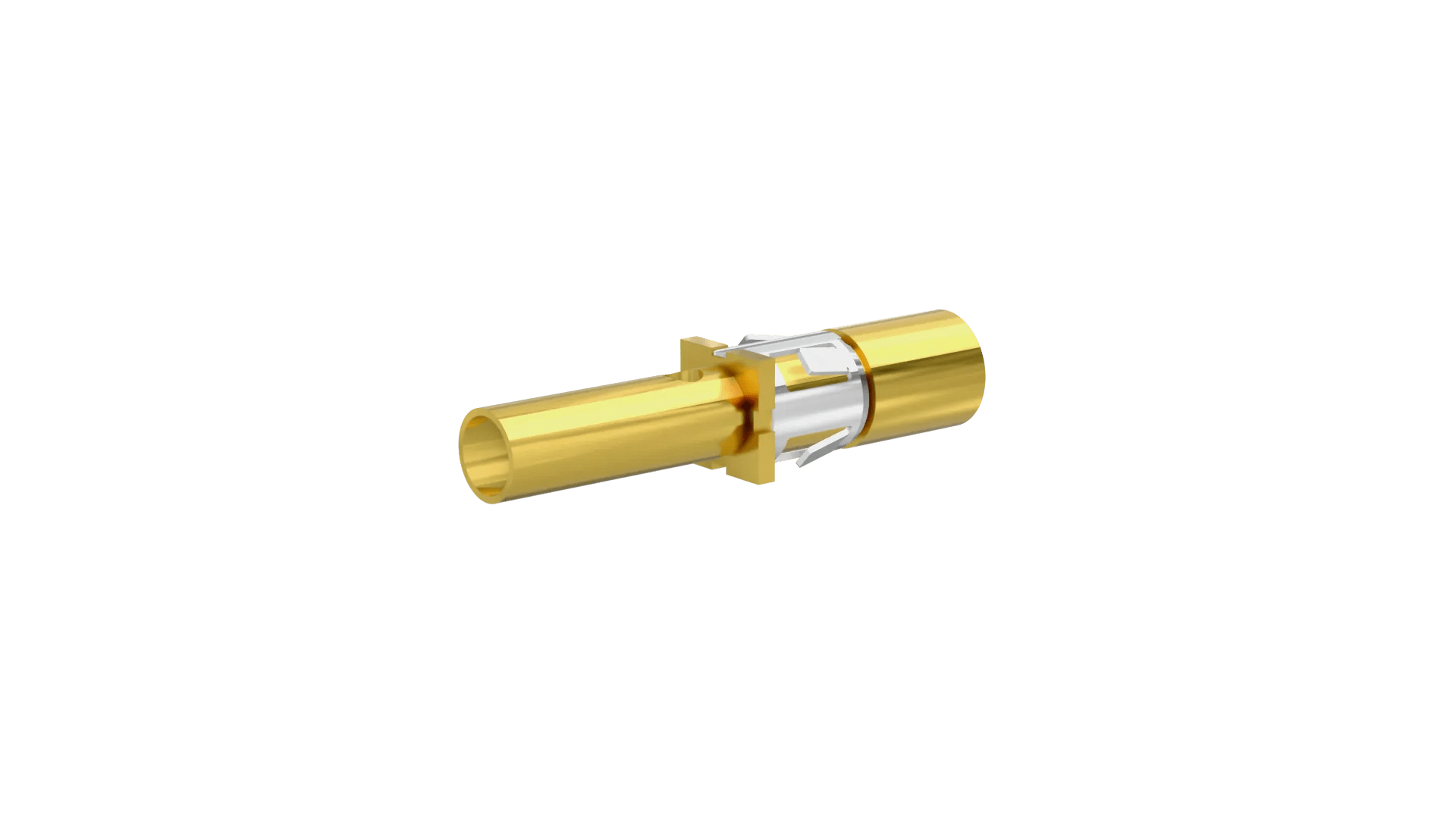

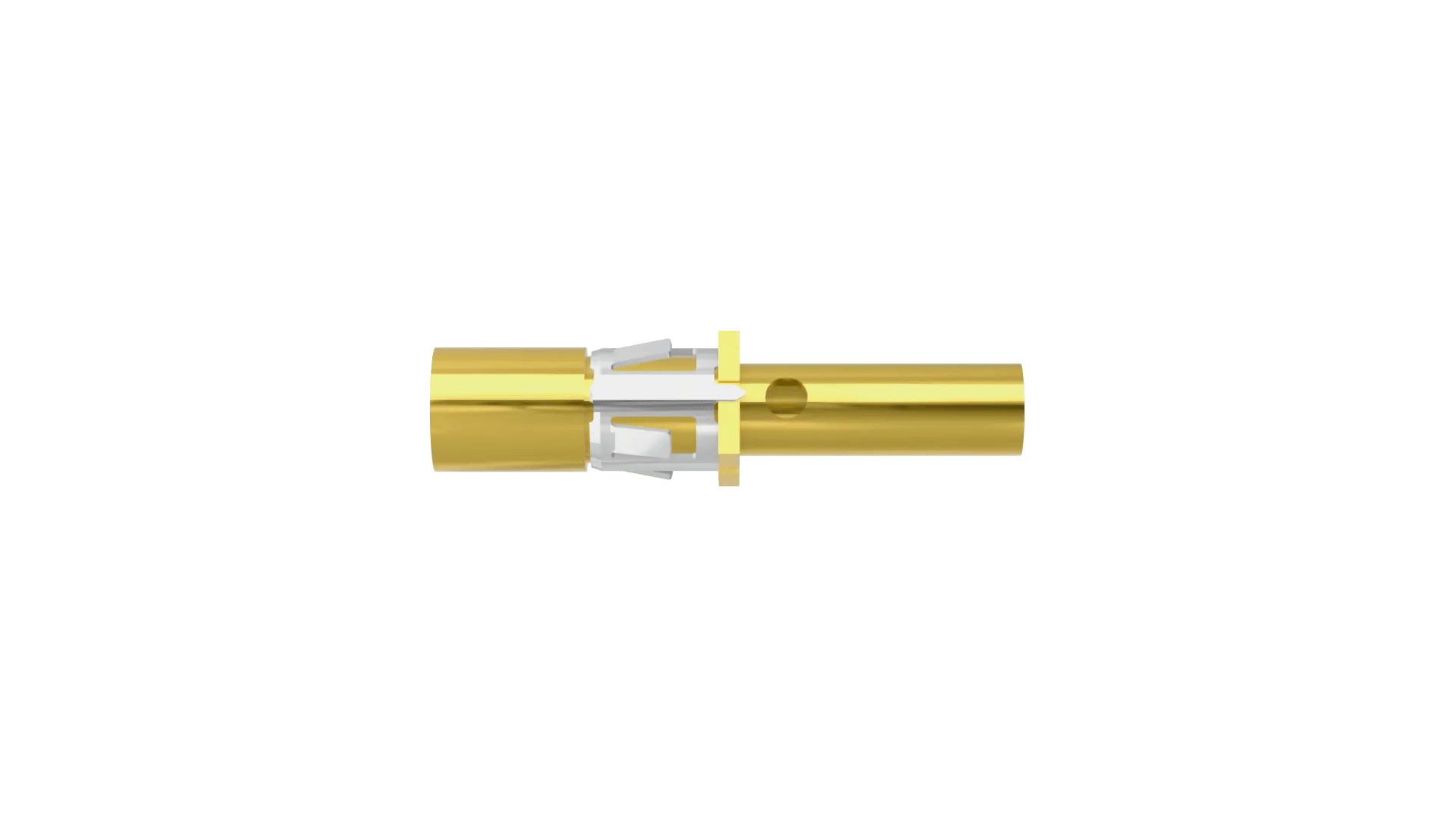

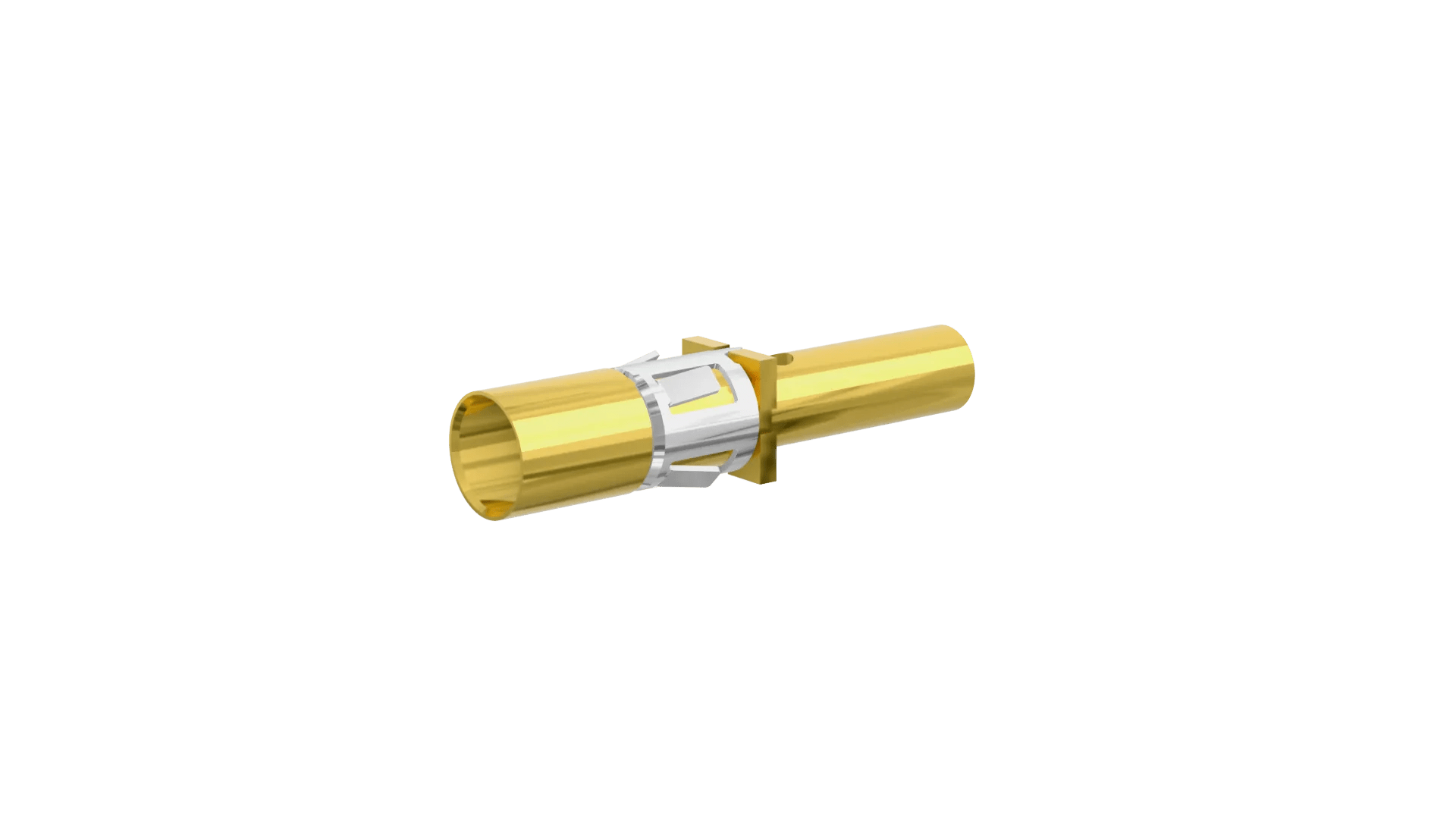

M80-328

Female 18 AWG Straight Crimp Power Contact


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Straight Crimp, suitable for 18 AWG cable.

  • Specified as 328 in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.

  • Gold finish on contact areas and termination. See instruction sheet IS-52 for advice on assembly to housing.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Number of Power/Coax Contacts:

    1

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    8A max per contact

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Contact Pitch:

    4.00mm (0.157")

  • Weight:

    0.379g

  • Dimensions:

    13.95 x 3.00 square

  • Wire Size:

    18 AWG

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-328-329.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Plating thickness on Datamate power and coax contacts

  • Product Information

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • IS-29 - Z80-294 Hand Crimp Tool Instruction Sheet

  • IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

  • Test Report HT078 - Datamate Mix-Tek 20A Power testing

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M80-328 product

  • RoHS - M80-328
