Z80-280

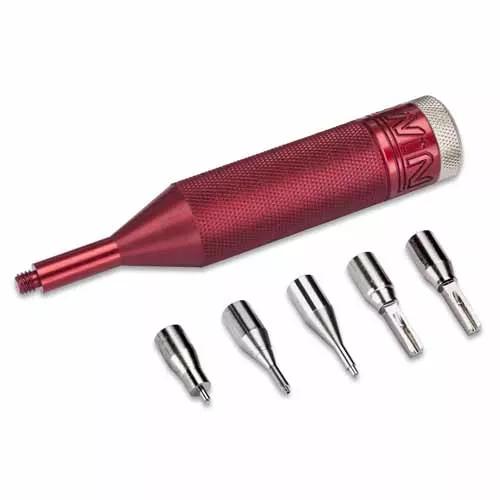

Insertion/Extraction Tool

2.00mm Pitch High-Reliability Connector - Datamate Tooling

  • For correctly inserting or extracting crimps into the housing after attaching cables. Use with Datamate L-Tek, J-Tek and Mix-Tek, all Male and Female signal contacts.
  • See instruction sheet and video for advice on use.
  • Spare tips also available separately: Z80-044C insertion tip for Ø0.9mm max cable, Z80-044D insertion tip for Ø1.1mm max cable, Z80-044E female contact extraction tip, Z80-044F male L-Tek contact extraction tip and Z80-044G male J-Tek or Mix-Tek contact extraction tip.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

34g

Overall Dimensions (L x W x D) in mm:

83.70 x Ø16.00

Availability

170 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 55
Distributor Farnell
Location Europe
Quantity (Updated Daily) 41
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 37
Distributor Newark
Location USA
Quantity (Updated Daily) 37

Questions & Answers Ask a Question

Is it possible to buy the extraction/insertion heads individually, or is this only sold as a complete set?

It is now possible to purchase the spare heads or tips separately: Z80-044C insertion tip for Ø0.9mm max cable, Z80-044D insertion tip for Ø1.1mm max cable, Z80-044E female contact extraction tip, Z80-044F male L-Tek contact extraction tip and Z80-044G male J-Tek or Mix-Tek contact extraction tip.
