Z80-044C

Spare Insertion Tool Tip for Z80-280 Tool

HRi

Z80-044C

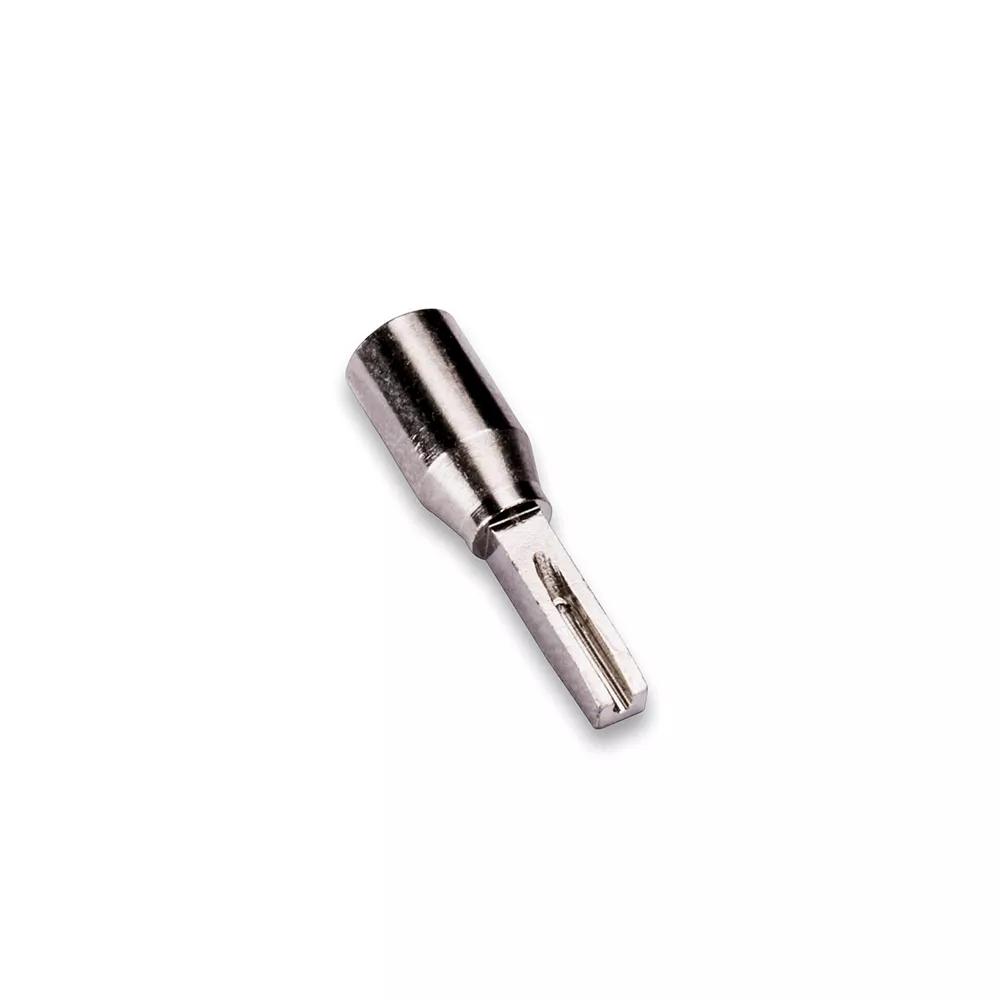

Spare Insertion Tool Tip for Z80-280 Tool

2.00mm Pitch High-Reliability Connector - Datamate

  • Spare tool tip for inserting Datamate signal contacts crimped to cables with insulation up to Ø0.9mm.

  • Replacement tip for Z80-280 Datamate signal contact insertion/extraction tool.

  • Use with Datamate L-Tek, J-Tek and Mix-Tek, all Male and Female signal contacts.

View Technical Details

Checking stock availability...

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • Country of Origin:

    GB

  • RoHS Status:

    Not applicable to RoHS (2015/863/EU)

Materials

  • Packaging Style:

    Single Pack

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    1.657g

  • Dimensions:

    20.50 x Ø5.50

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - Z80-044C-044D.pdf

Product Information

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Datasheet - Datamate Mix-Tek range (HRi)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • RoHS - Z80-044C
