Z80-044F
Image may be representative. Refer to the product title for more information.
2.00mm Pitch High-Reliability Connector - Datamate

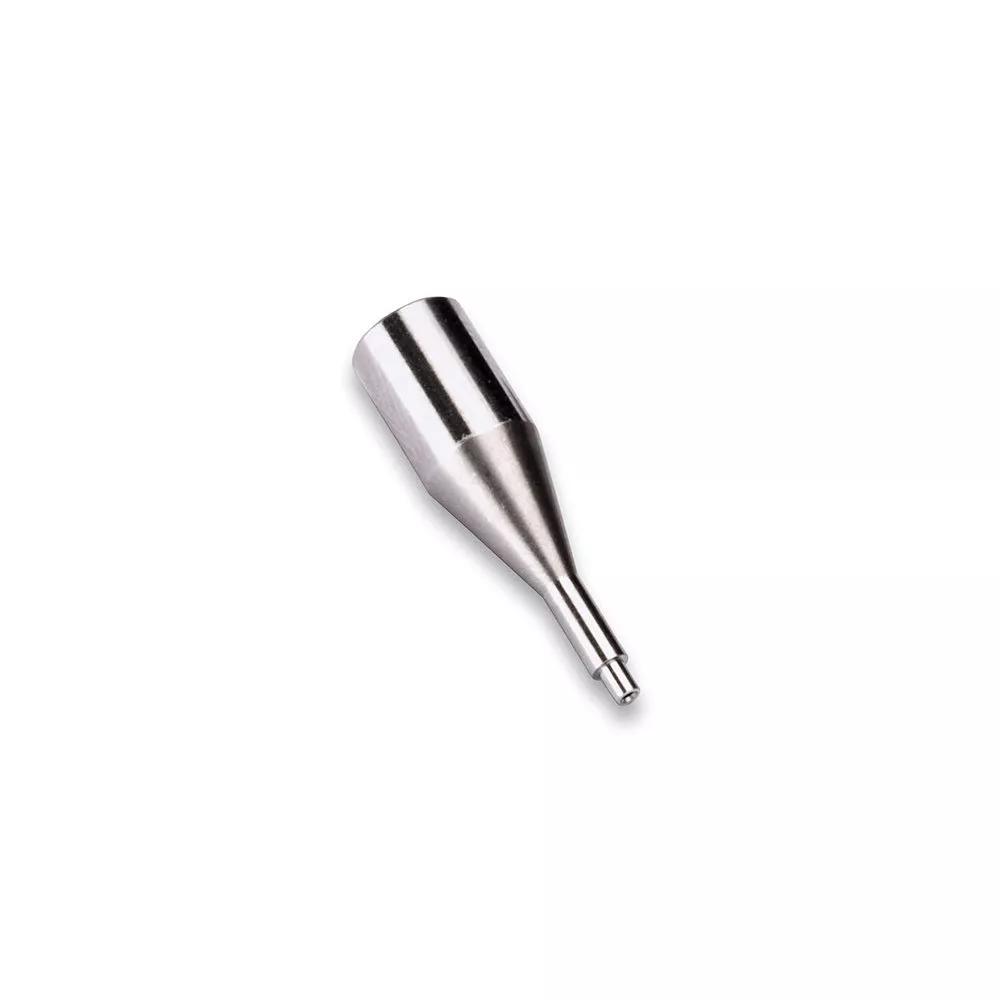

Spare tool tip for extracting male Datamate L-Tek signal contacts from housings.
Replacement tip for Z80-280 Datamate signal contact insertion/extraction tool.
Use with Datamate L-Tek Male signal contacts - use tip Z80-044G for Datamate J-Tek and Mix-Tek male contacts.
Checking stock availability...
Jump to technical details
Technical Drawing
TraceParts
CAD/ECAD
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin
GB
RoHS Status
Not applicable to RoHS (2015/863/EU)
Packaging Style
Single Pack
Contact Pitch
2.00mm (0.079")
Weight
1.617g
20.00 x Ø5.50
Technical Drawing / Datasheet - Z80-044F.pdf
IS-25 - Z80-280 Assembly Tool Instruction Sheet
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS Declaration - Z80-044F
