Z80-058

Positioner / Insert for Hand Crimp Tool

3.00mm Pitch High-Reliability Connector - M300 Tooling

Add to Favorites

25 in stock Check availability

0 similiar products View products

Samacsys account required

Product Description

For correctly positioning crimps in tool whilst crimping.
For use with M300 crimp contacts – M300-0010045, M300-0020045, M300-1010045, M300-1020045 – and Datamate Legacy 3-row Power Crimp contacts (M80-055).
Use with Hand Crimp Tool M22520/2-01.

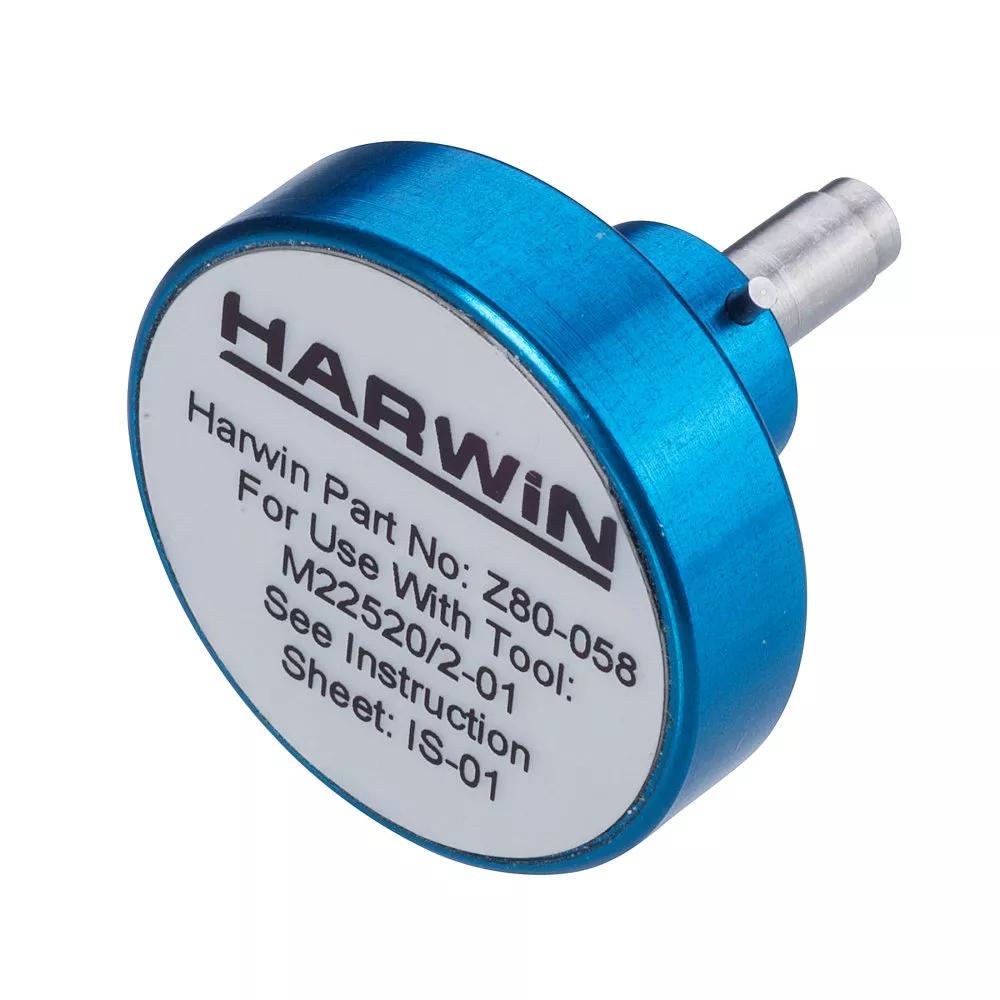

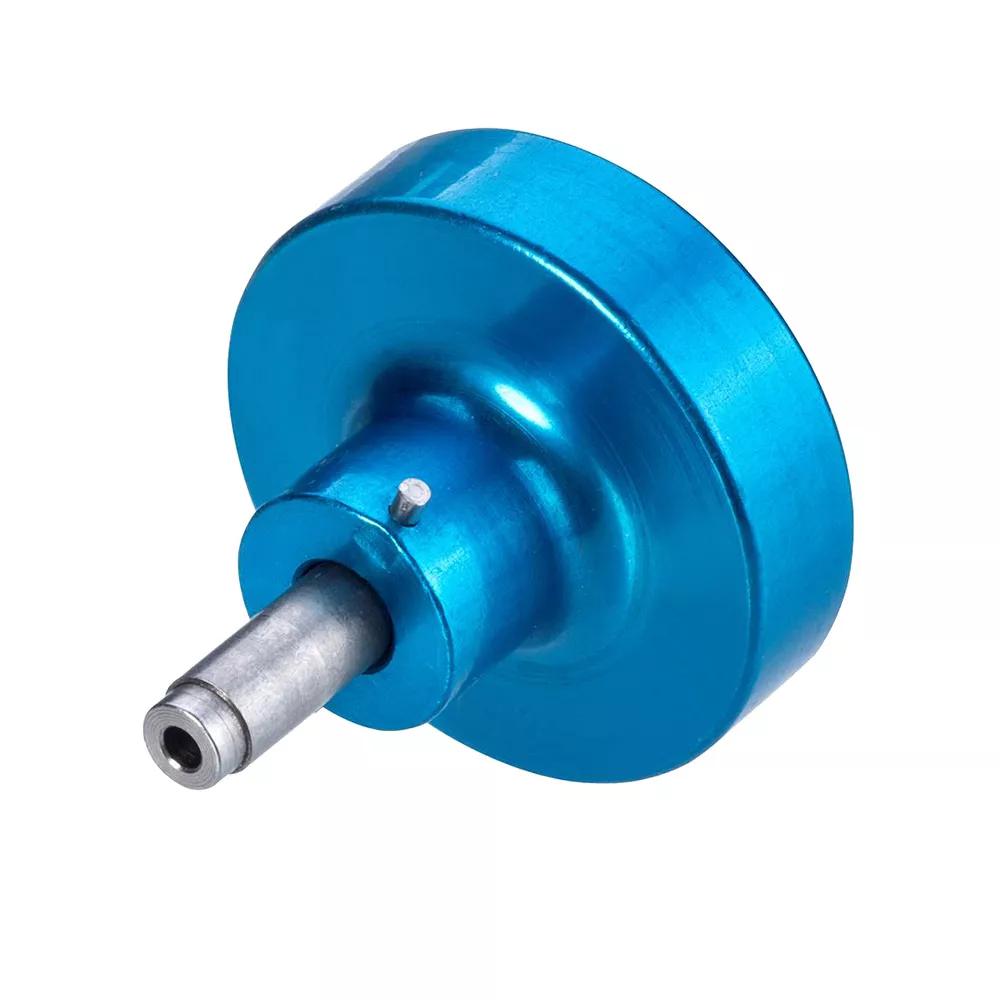

Z80-058 - Positioner / Insert for Hand Crimp Tool

Samacsys account required

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

3.00mm (0.118")

Packaging Style:

Single Pack

Individual Part Weight:

10.09g

Overall Dimensions (L x W x D) in mm:

Ø23.65 x 23.80
