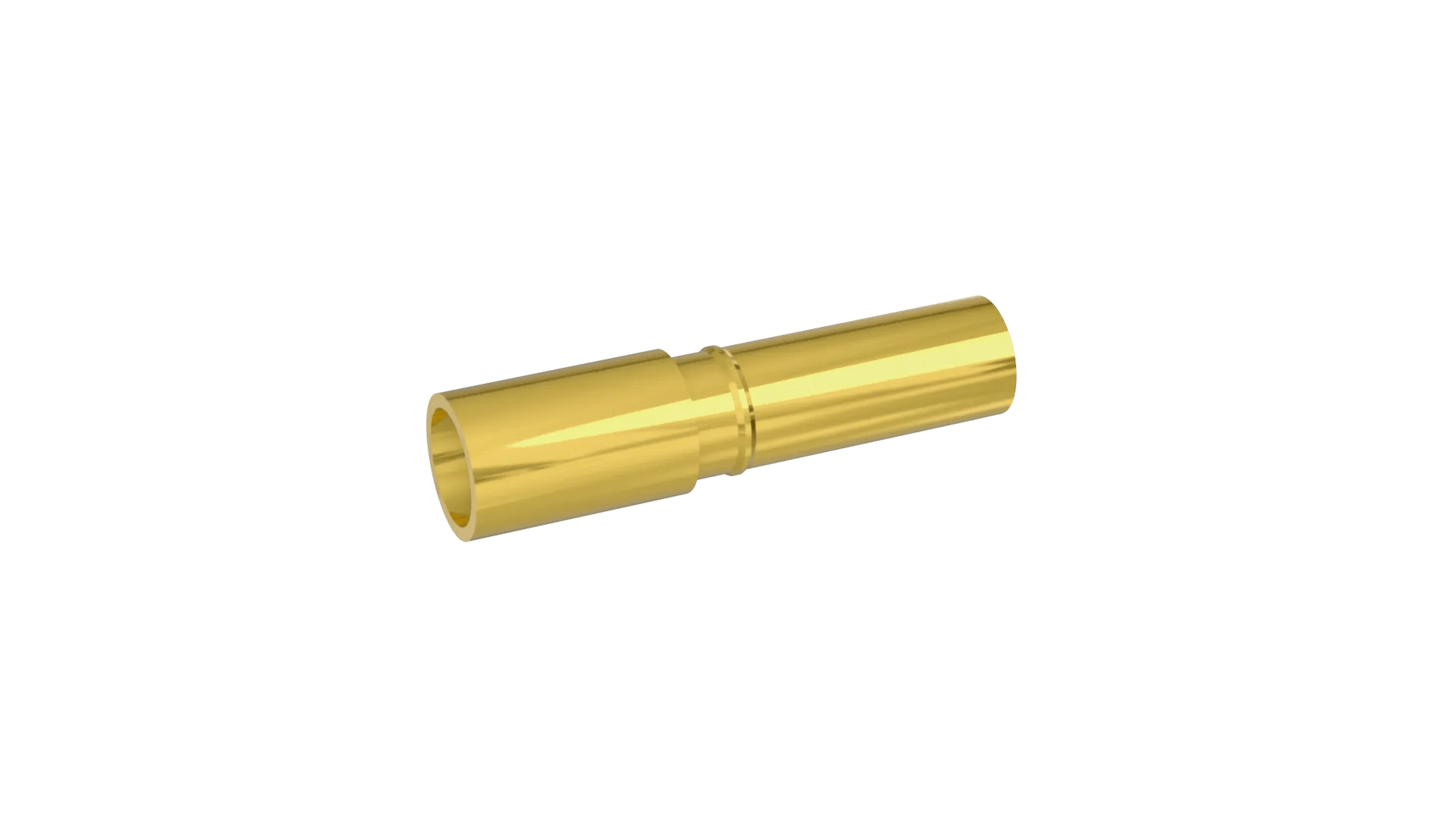

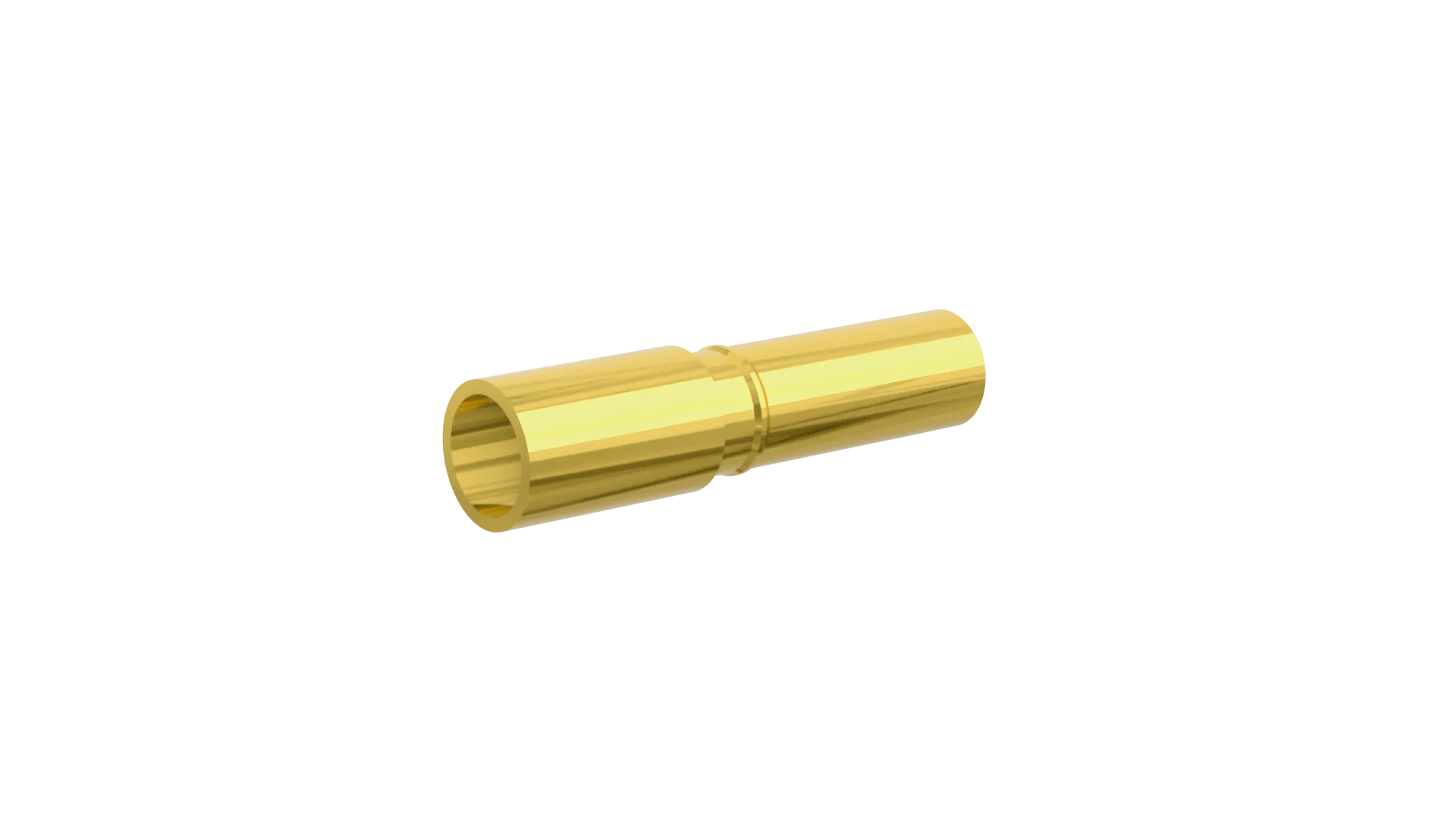

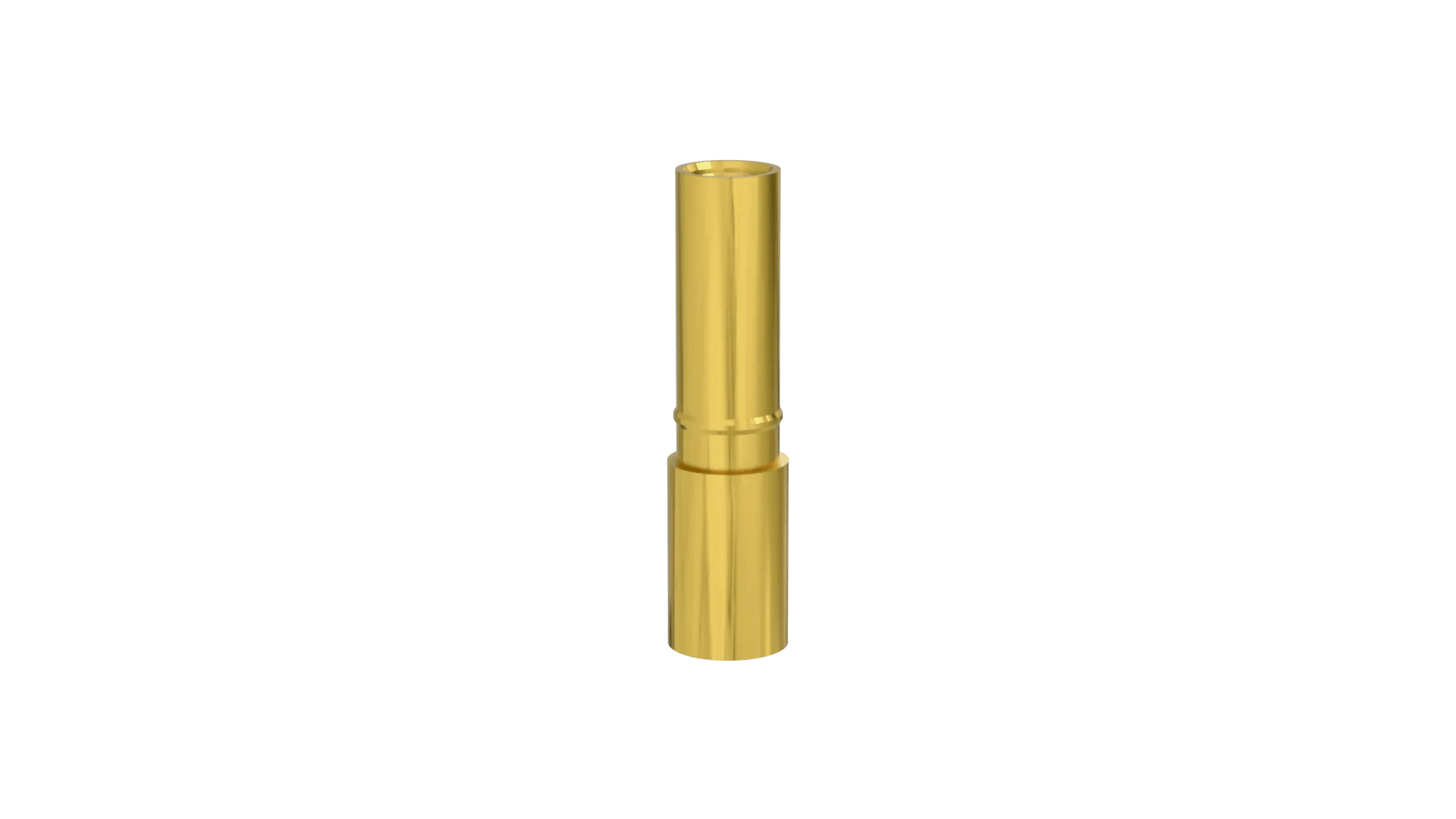

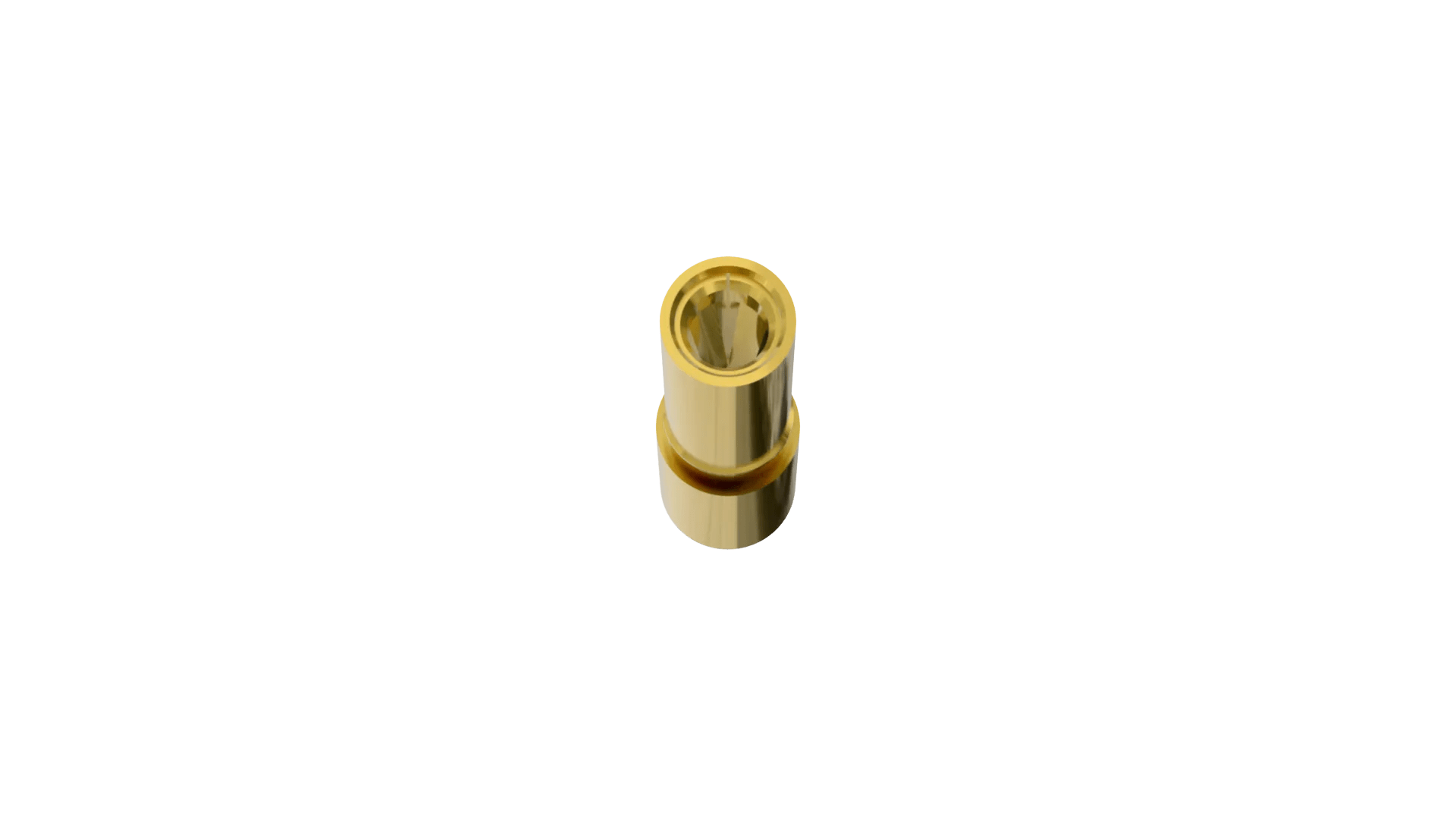

3.00mm Pitch High-Reliability Connector - M300
Individual female crimp contact, suitable for 18 and 20 AWG cable, up to 10A per contact.
Use with crimp housings M300-2240696F2, M300-2241096F2 or M300-2250396F2.
Gold finish on contact area and termination.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
Ø1mm
Connector Orientation:
Straight
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Operating Temperature:
-65°C to +175°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
10A max per contact simultaneous
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Contact Pitch:
3.00mm (0.118")
Weight:
0.159g
Dimensions:
9.35 x Ø2.33
Wire Size:
18 AWG20 AWG
