M300-0020045

M300-0020045

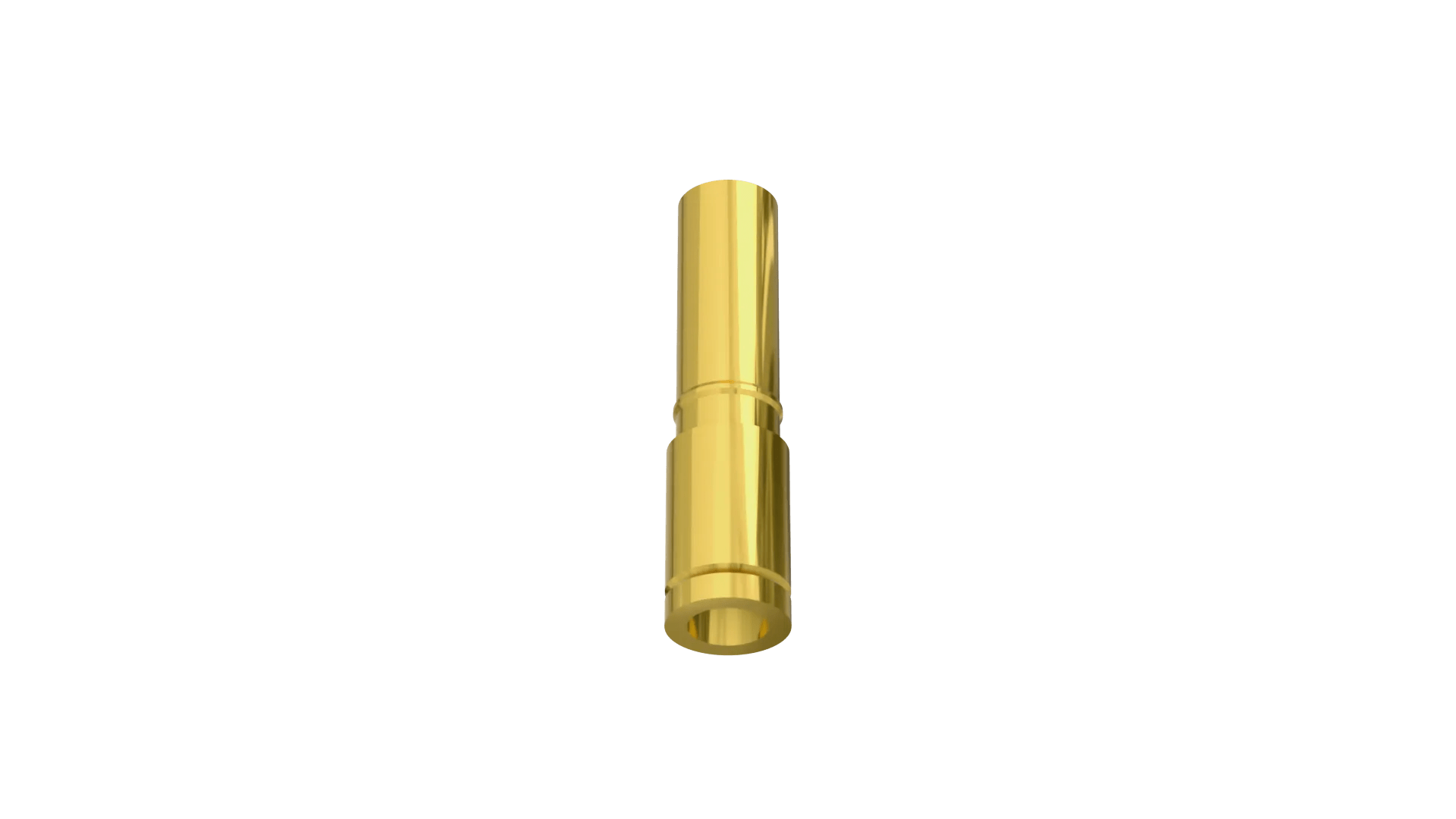

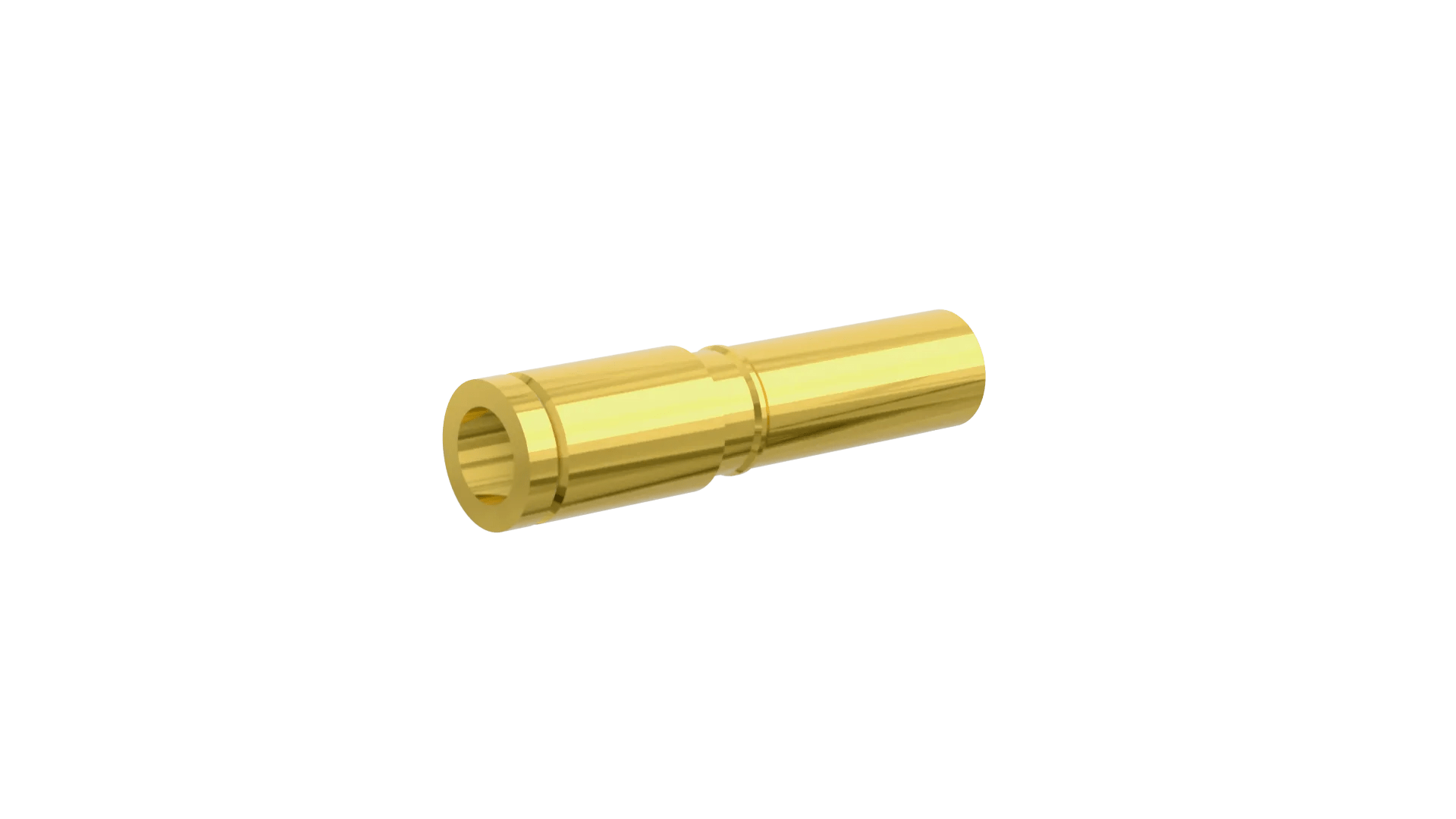

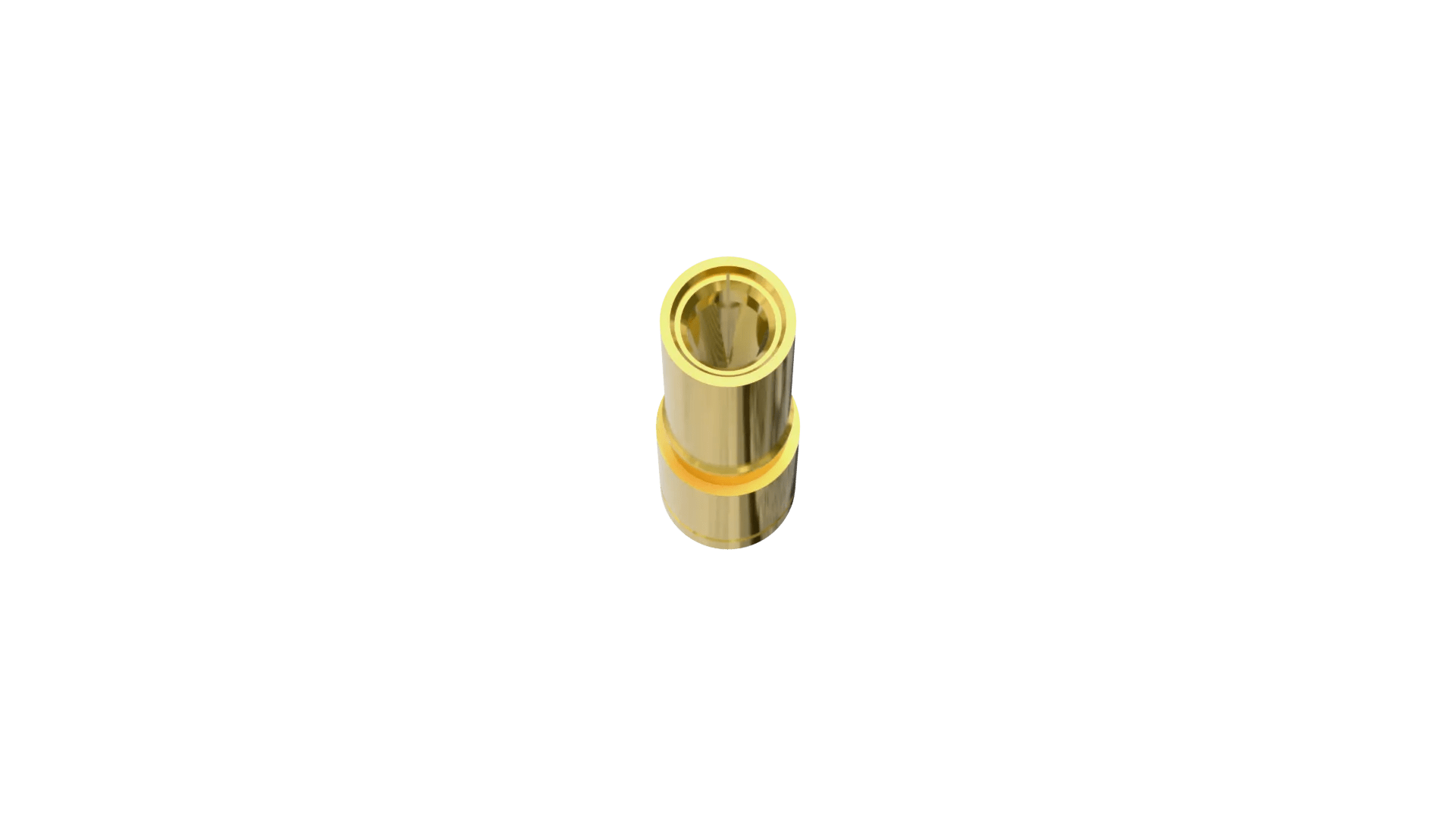

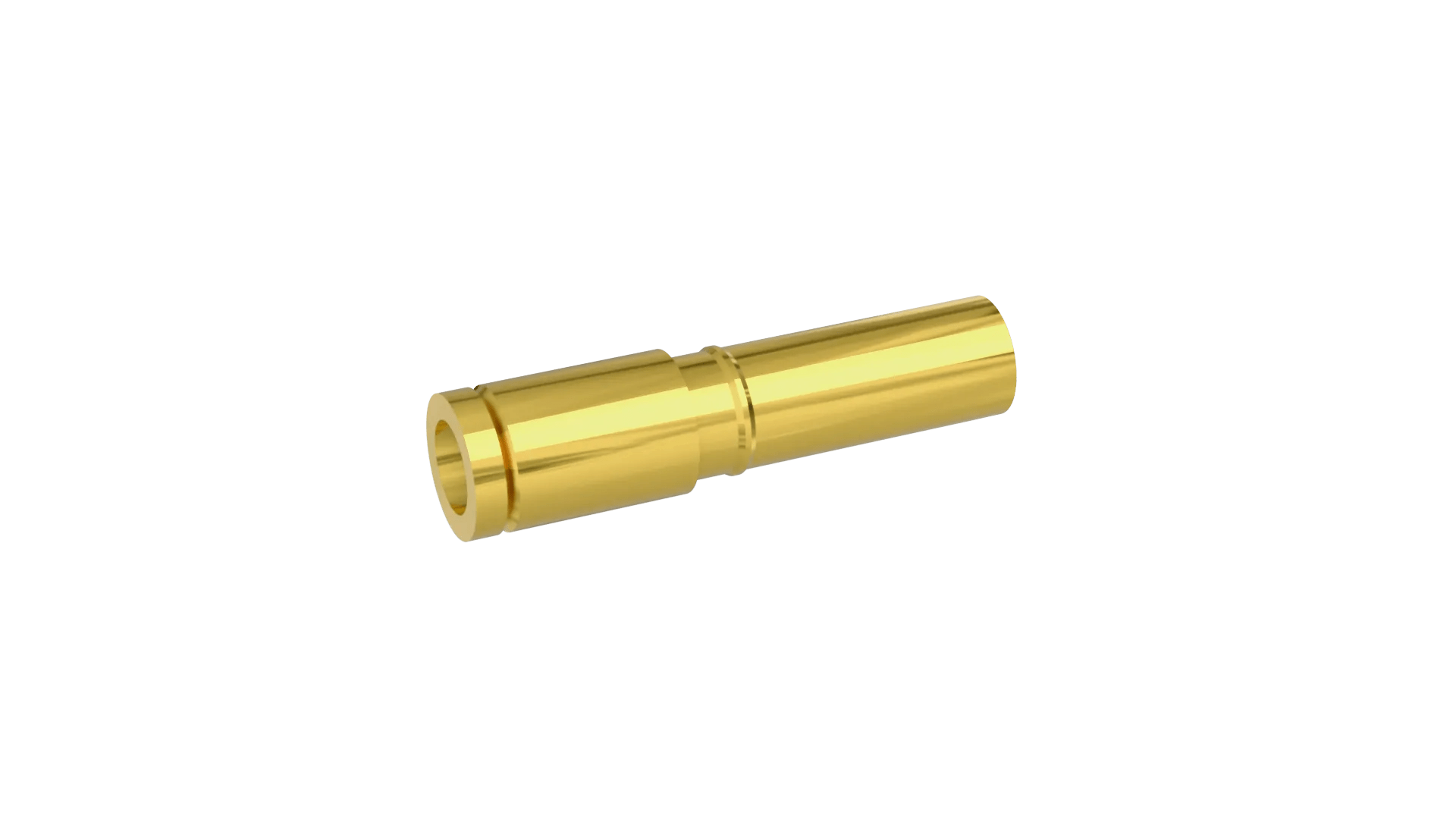

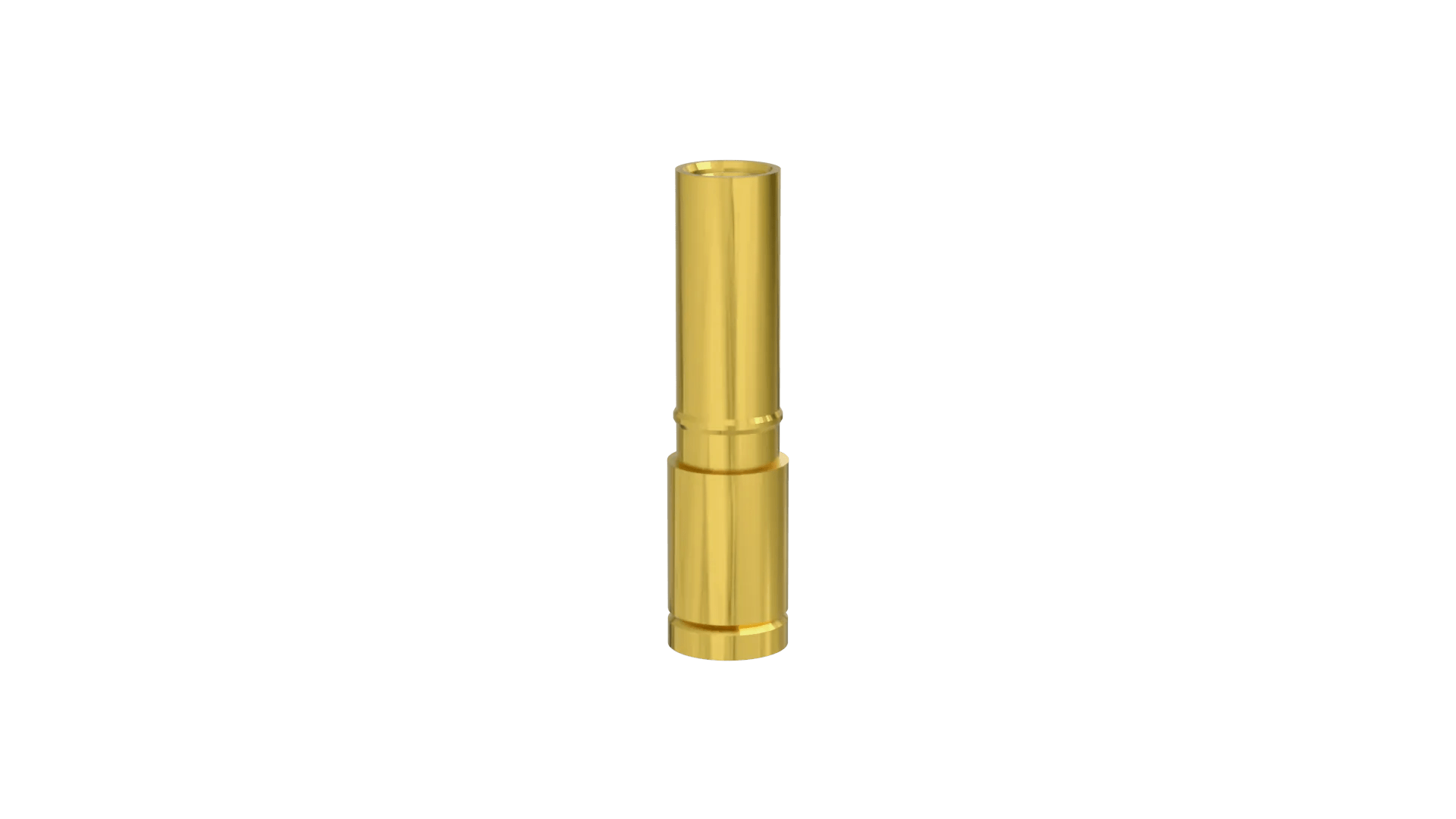

M300 Female Crimp Contact, suitable for 22 AWG cable, up to 10A per contact

HRi
HRi

Traceparts account required

M300-0020045

M300 Female Crimp Contact, suitable for 22 AWG cable, up to 10A per contact


3.00mm Pitch High-Reliability Connector - M300


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    3.00mm (0.118")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    22 AWG

  • Mating Pin Size:

    Ø1mm

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    5A max per contact simultaneous

  • Weight:

    0.18g

  • Dimensions:

    9.35 x √ò2.33

  • Operating Temperature:

    -65°C to +175°C

  • Country of Origin:

    GB

Downloads

    Environmental Compliance

  • RoHS - M300-0020045

  • Material composition for M300-0020045 product

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M300-002.pdf

  • Plating thickness on M300 contacts

  • C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-40 - Z300-902 Assembly Tool Instruction Sheet

  • Catalog page - M300 Mating Profiles + Pin Numbering

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Test Reports

  • Test Report HT043 - M300 Series - General (Electrical + Mechanical and Environmental)
