Z125-902

Insertion/Extraction Tool

1.25mm Pitch High-Reliability Connector - Gecko

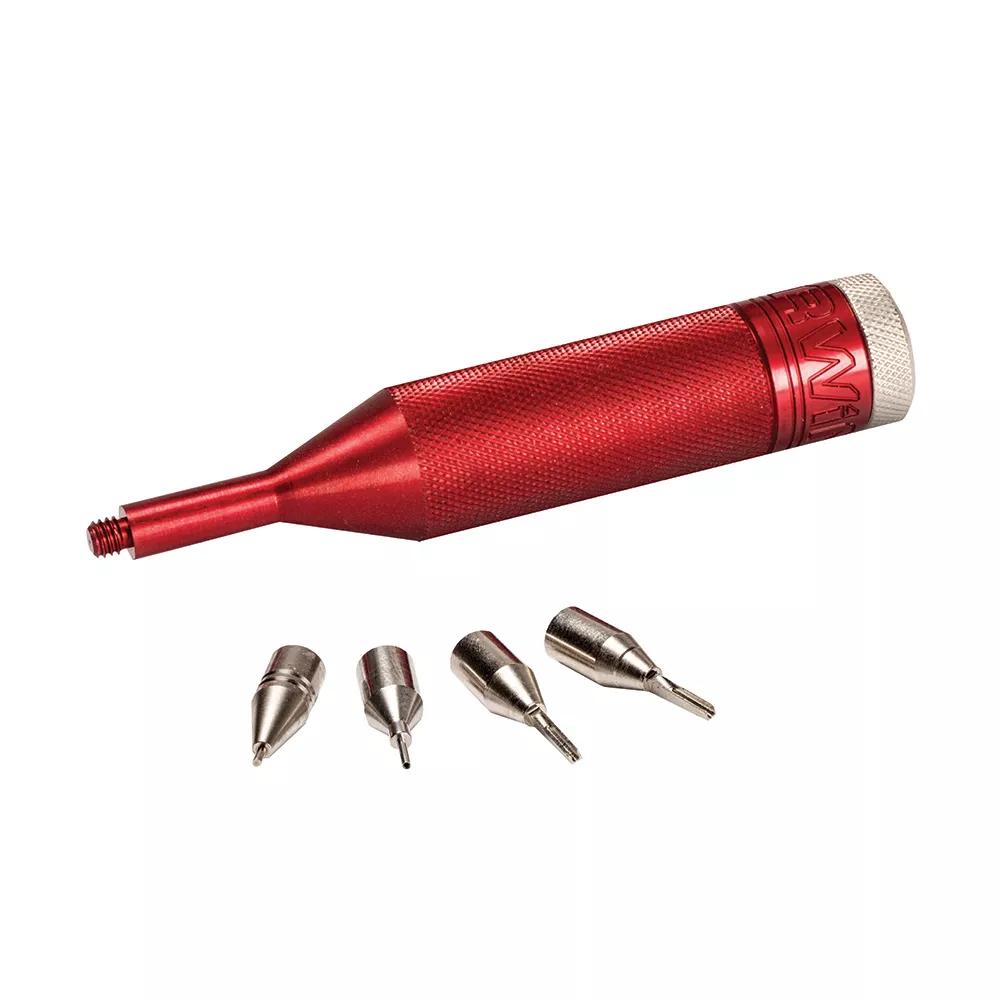

For assembling Gecko Male & Female signal crimp connectors to applicable housings after attaching cables. Suitable for all Gecko signal crimps – Gecko-SL, Gecko-MT and Gecko with Latches.
See instruction sheet and video for advice on use.
Spare tips also available separately: Z125-920 insertion tip for Ø0.8mm max cable, Z125-921 insertion tip for Ø0.65mm max cable, Z125-922 female contact extraction tip and Z125-923 male contact extraction tip.

Availability

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

1.25mm (0.049")

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

33.98g

Overall Dimensions (L x W x D) in mm:

83.70 x Ø16.00

Availability

147 in stock

Questions & Answers Ask a Question

Is it possible to buy the extraction/insertion heads individually, or is this only sold as a complete set?

It is now possible to purchase the spare heads or tips separately: Z125-920 insertion tip for Ø0.8mm max cable, Z125-921 insertion tip for Ø0.65mm max cable, Z125-922 female contact extraction tip and Z125-923 male contact extraction tip.

Downloads

PDF

Technical Drawing / Datasheet - Z125-902.pdf

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

PDF

Catalog page - Gecko Tooling

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-MT High-Reliability Connectors

PDF

Product Summary - Gecko-SL High-Reliability Connectors

Want to talk to someone?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
