Z125-923

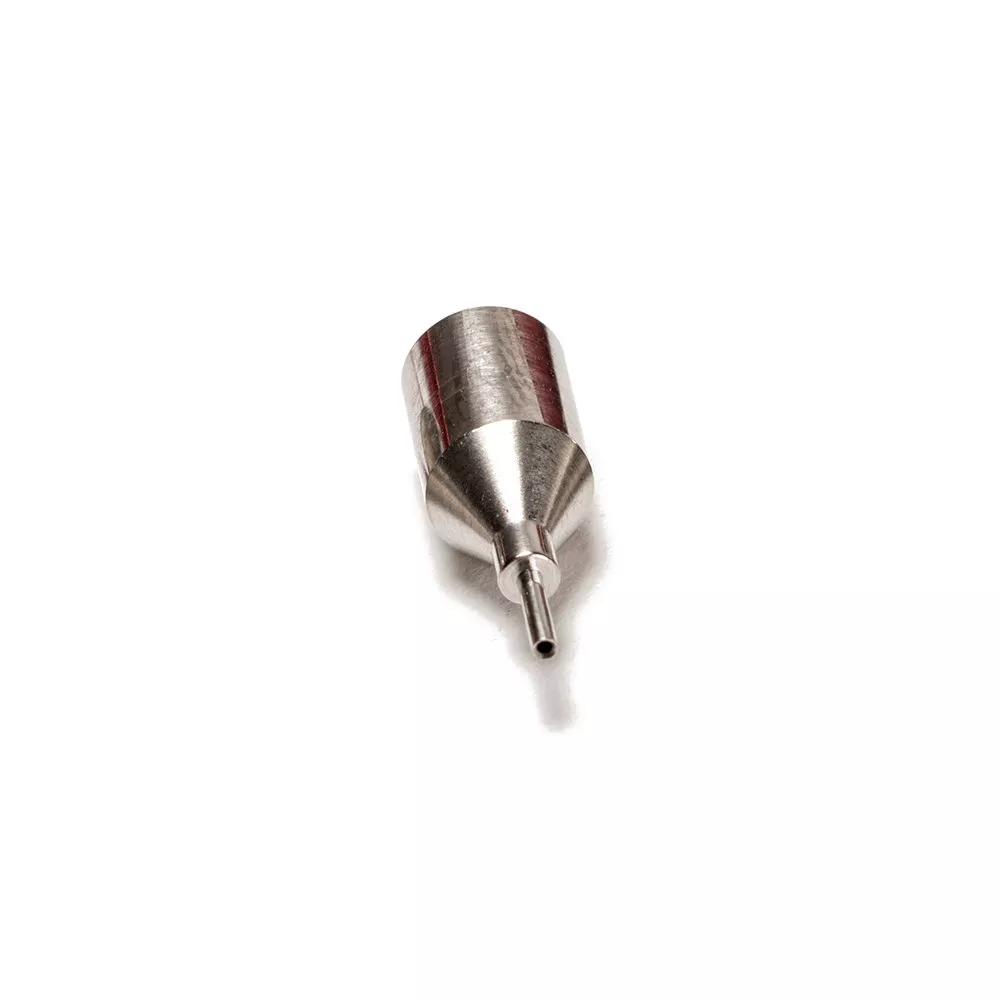

Spare Extraction Tool Tip for Z125-902 Tool

HRi

Z125-923

Spare Extraction Tool Tip for Z125-902 Tool

1.25mm Pitch High-Reliability Connector - Gecko

  • Spare tool tip for extracting male Gecko signal contacts from housings.

  • Replacement tip for Z125-902 Gecko signal contact insertion/extraction tool.

  • Use with Gecko-SL, Gecko-with Latches and Gecko-MT signal contacts.

View Technical Details

Checking stock availability...

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • Country of Origin:

    GB

  • RoHS Status:

    Not applicable to RoHS (2015/863/EU)

Materials

  • Packaging Style:

    Single Pack

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    1.26g

  • Dimensions:

    16.20 x Ø5.50

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - Z125-923.pdf

    • Product Information

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • IS-38 - Z125-902 Assembly Tool Instruction Sheet

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Datasheet - Gecko-MT range (HRi)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • RoHS - Z125-923
