Z125-920
Image may be representative. Refer to the product title for more information.

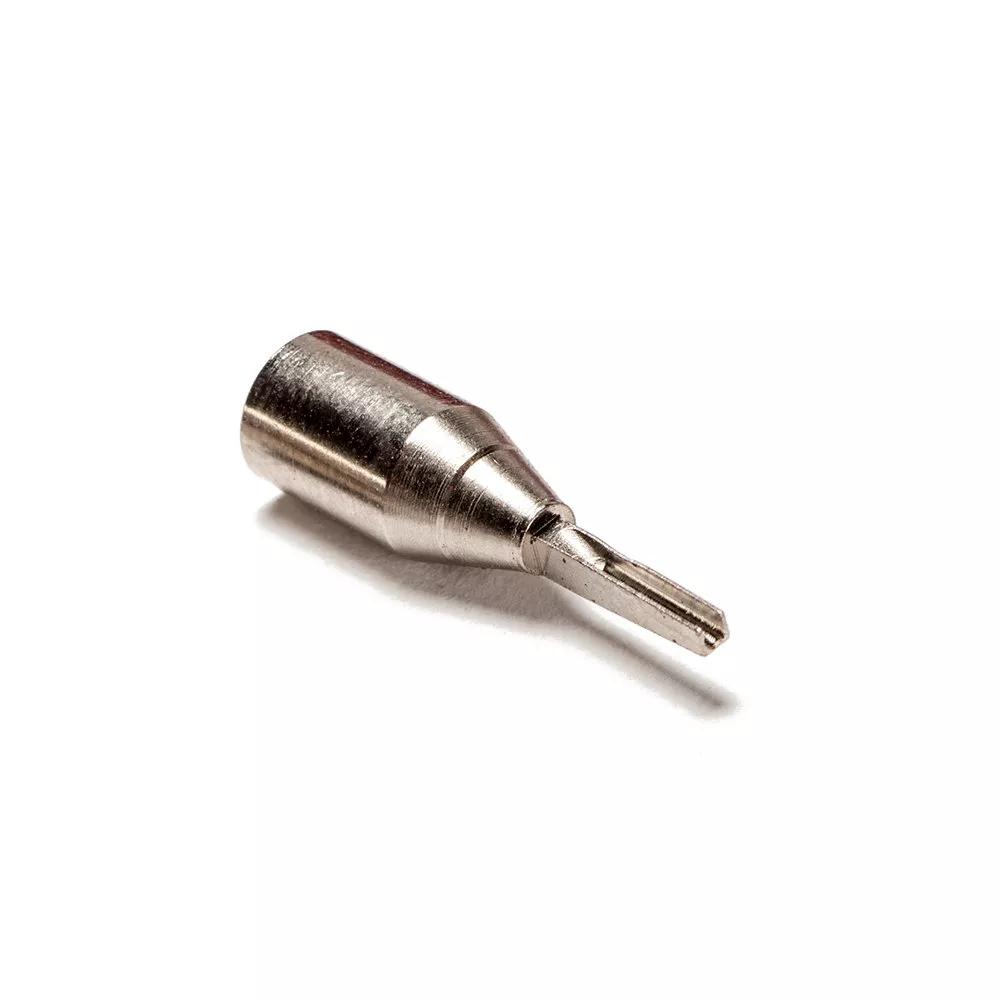

1.25mm Pitch High-Reliability Connector - Gecko
Spare tool tip for inserting Gecko signal contacts crimped to cables with insulation up to Ø0.8mm.
Replacement tip for Z125-902 Gecko signal contact insertion/extraction tool.
Use with Gecko-SL, Gecko-with Latches and Gecko-MT signal contacts.
