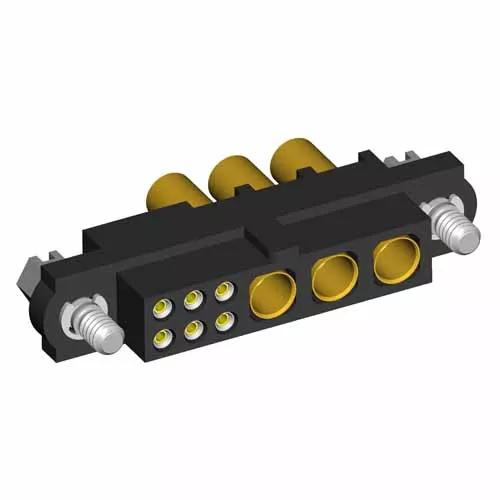

Product Characteristics

• End Stackable:

  No

• Style of Jackscrews:

  Floating Jackscrew with Hex Slotted Head (Standard Gender)

• Mating Pin Size:

  Ø0.5mm (signal)

• Number of Rows:

  Mixed

• Connector Orientation:

  Straight

• Side Stackable:

  No

• Number of Special (Power or Coax) Contacts:

  3

• Number of Signal Contacts:

  6

• Operating Temperature:

  -55°C to +125°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with Exemption 6c

• Current Rating:

  Signal = 3.3A max individual contact, 3A max simultaneous; Power = 10A max per contact

• Polarised:

  Yes

• Cuttable:

  No

Materials

• Finish / Plating on Contact Surface:

  Gold

• Housing Material:

  PPS

• Base Material of Contact:

  Beryllium Copper contact clip + Brass shell (signal), Brass (power)

• Flammability Rating:

  UL94V-0

• Packaging Style:

  Single Pack

• Finish / Plating on Termination:

  100% Tin over Nickel (signal), Gold (power)

• Housing Colour:

  Black

Dimensions

• Contact Pitch:

  2.00mm/4.00mm (0.079"/0.157")

• Weight:

  2.982g

• Dimensions:

  28.00 x 5.50 x 13.00

• Thread Size:

  M2

• Wire Size:

  24-28 AWG + 16 AWG
