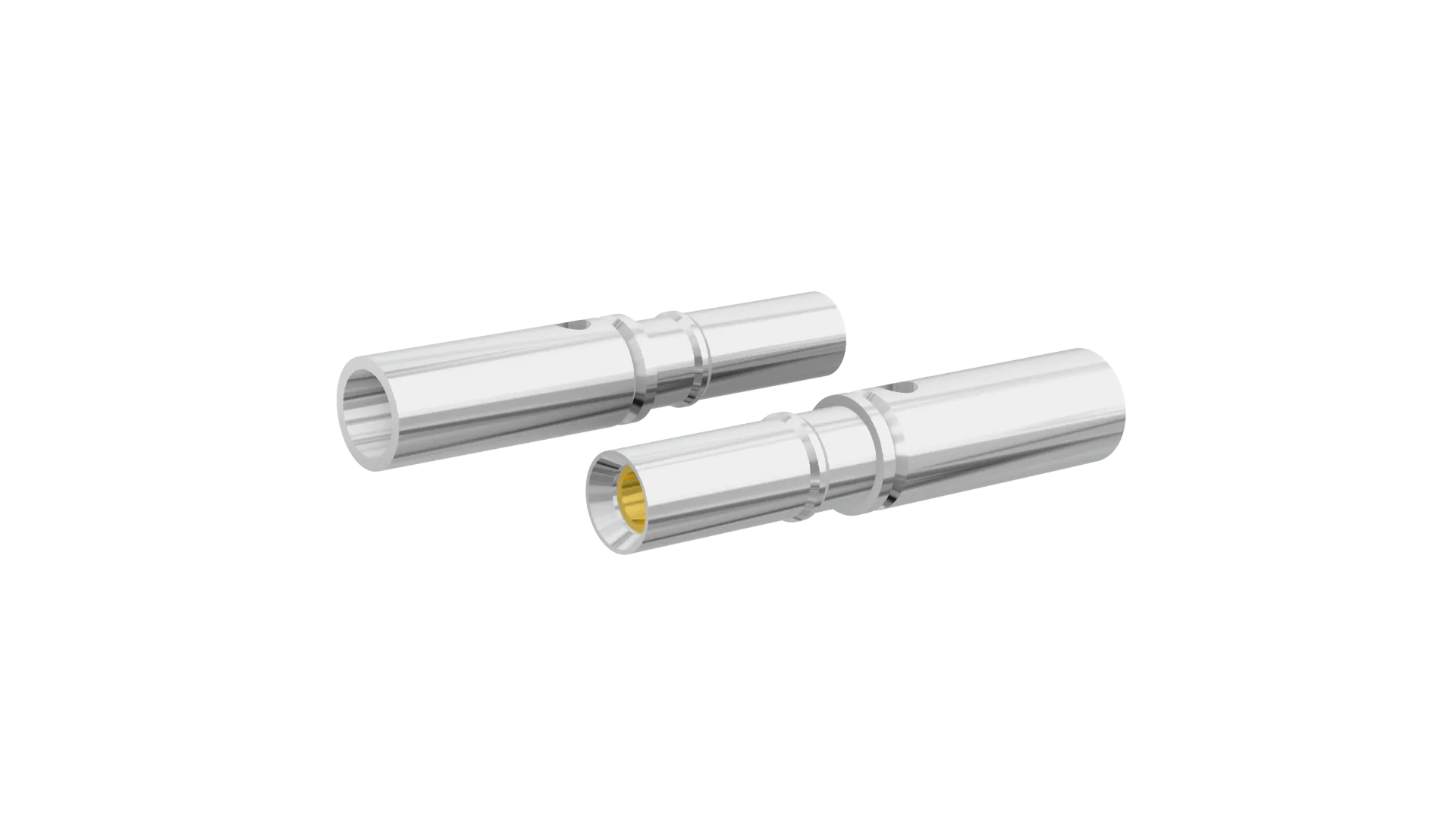

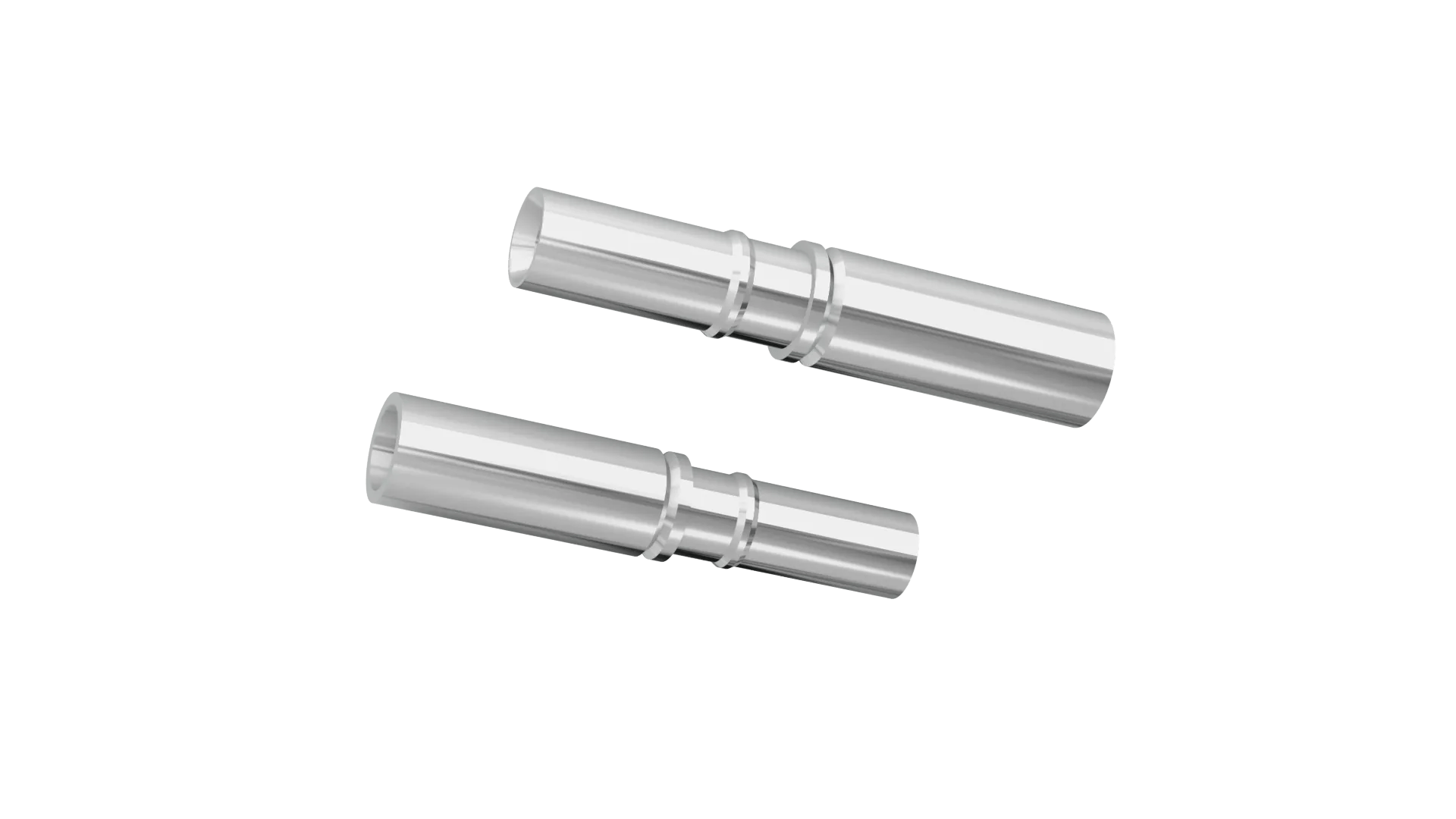

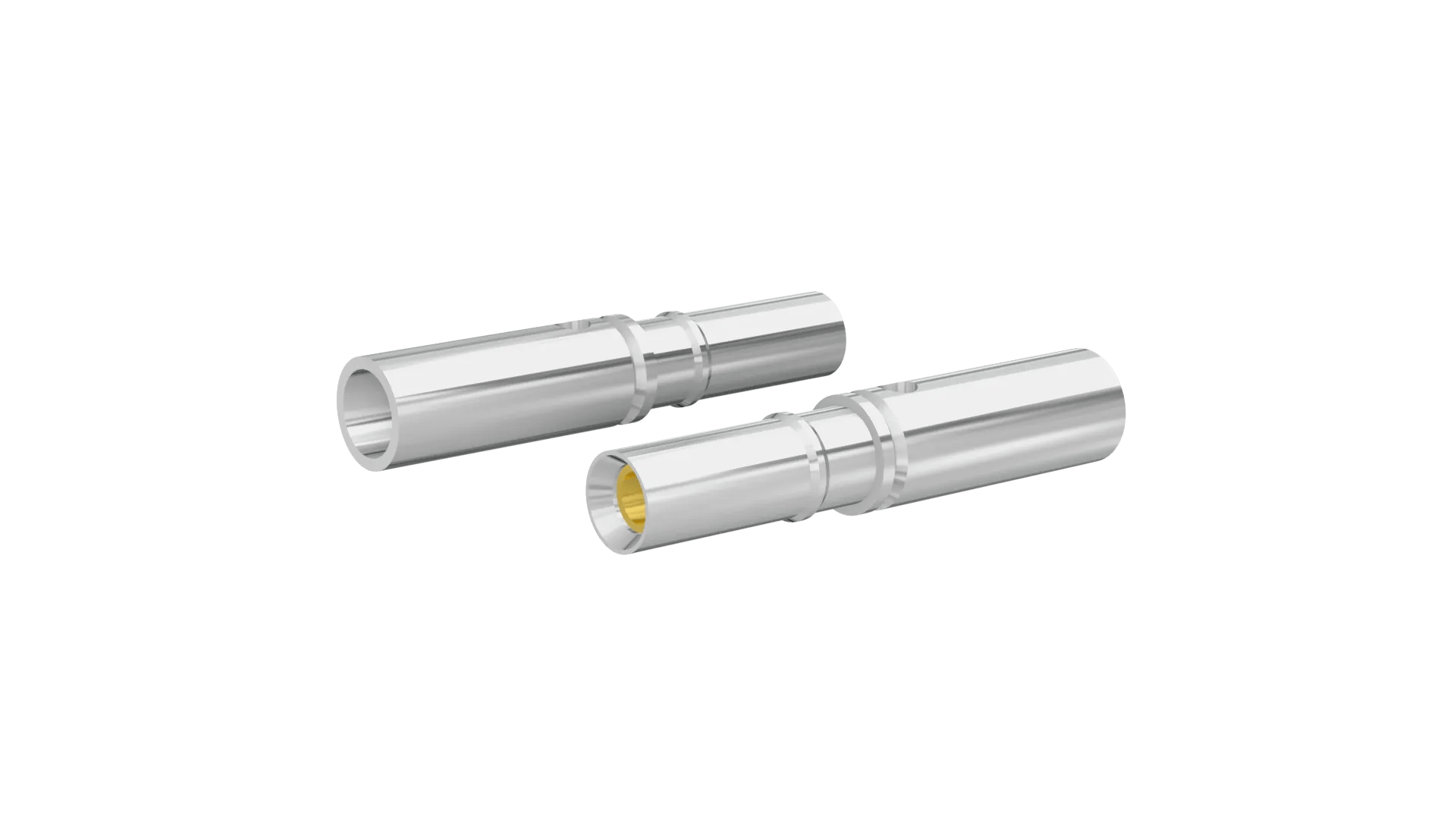

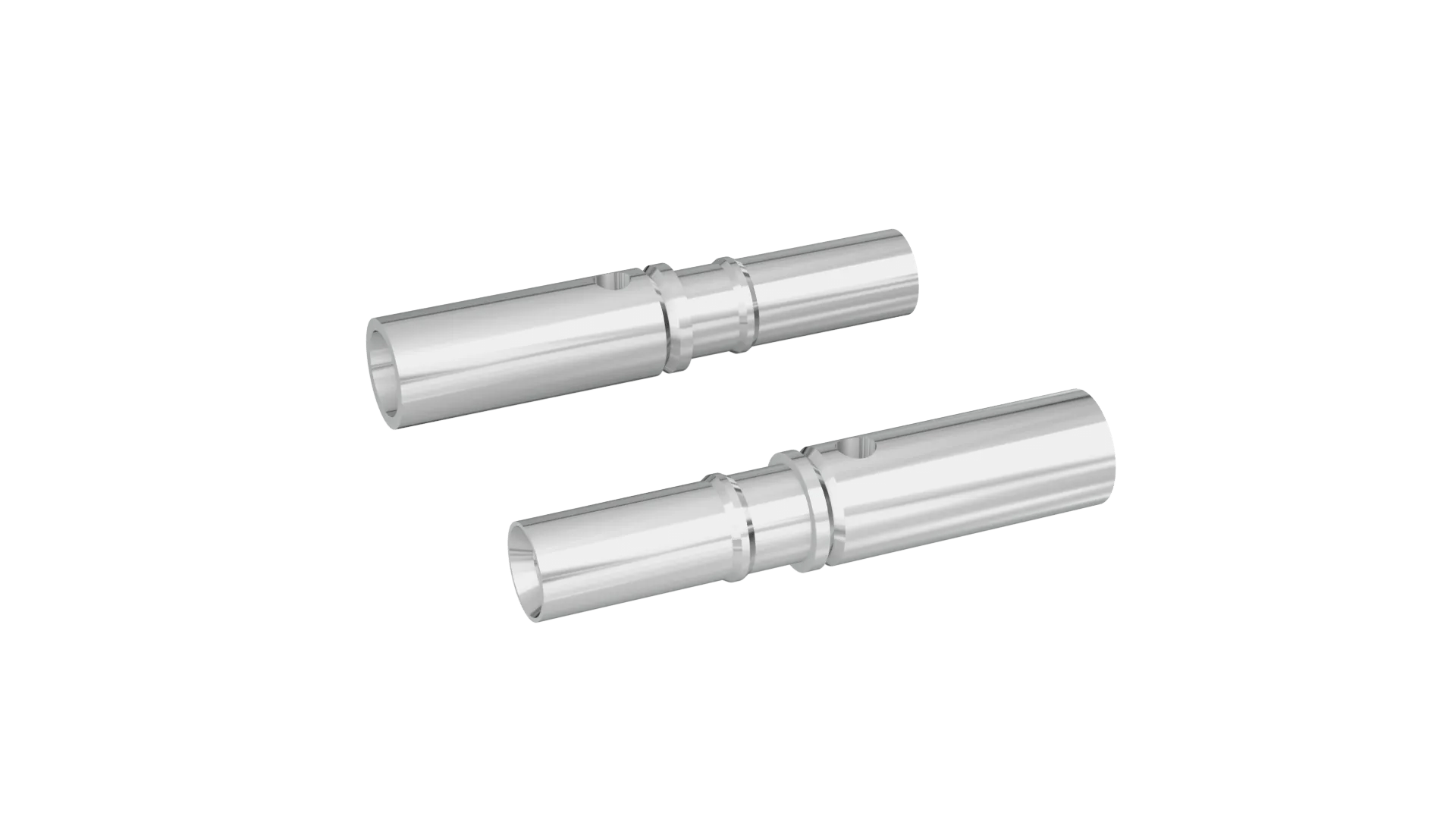

Datamate L-Tek, J-Tek Female Crimp Contact, Small Bore (24-28 AWG), gold clip + tin shell


Traceparts account required


Datamate L-Tek, J-Tek Female Crimp Contact, Small Bore (24-28 AWG), gold clip + tin shell

2.00mm Pitch High-Reliability Connector - Datamate

  • Small Bore signal contact, for 24-28 AWG wire (Ø1.1mm max insulation).

  • Use with all types of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).

  • Gold finish on contact area, Tin finish on termination.

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details



Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details


  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:


  • Connector Orientation:


  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    24-28 AWG

  • Mating Pin Size:


  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:


  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Packaging Style:


  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Weight:


  • Dimensions:

    7.45 x Ø1.46

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:



    Environmental Compliance

  • RoHS - M80-0130001

  • Material composition for M80-013 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-013.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Product Training Module - Datamate Mix-Tek Housings

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
