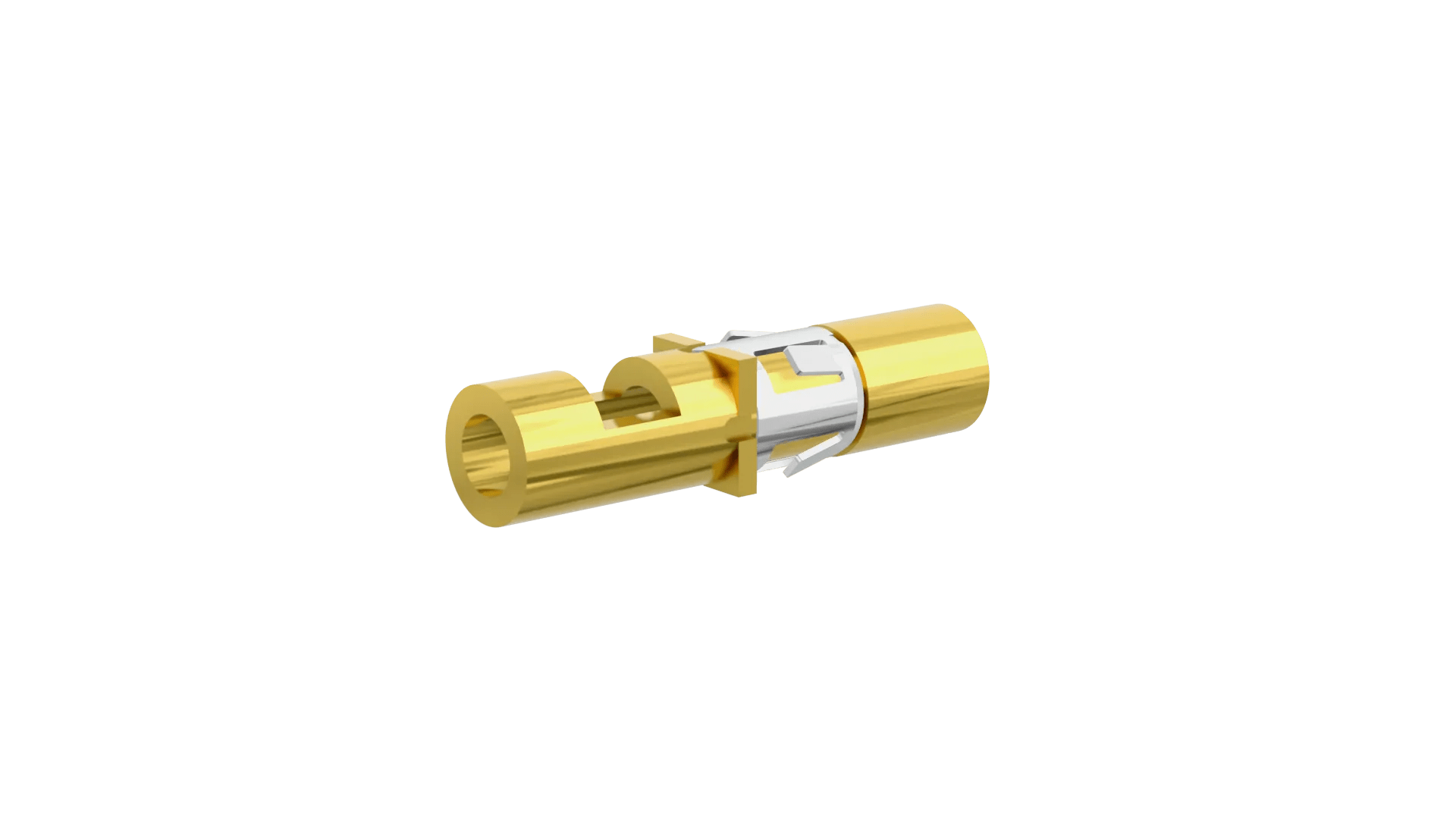

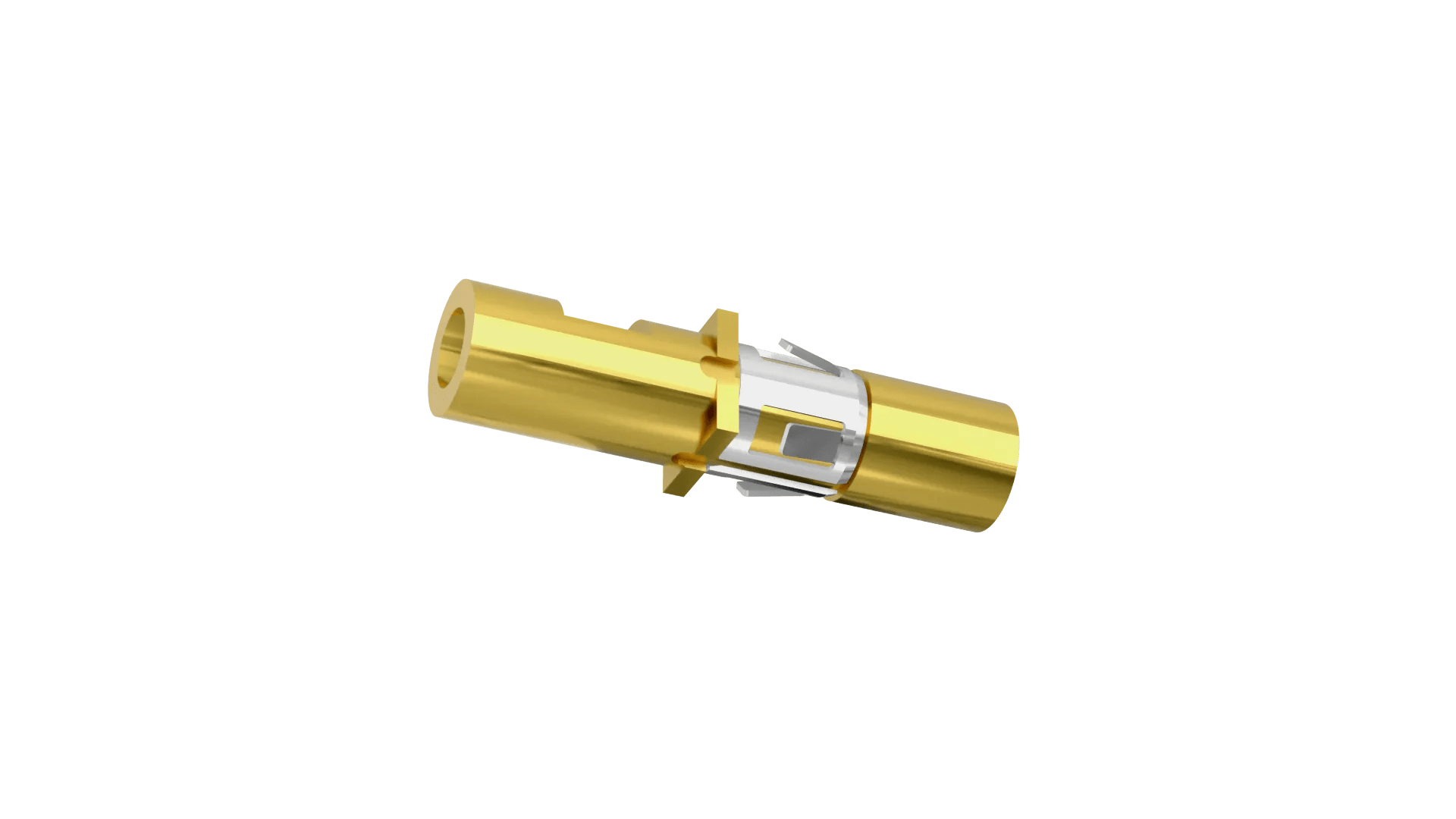

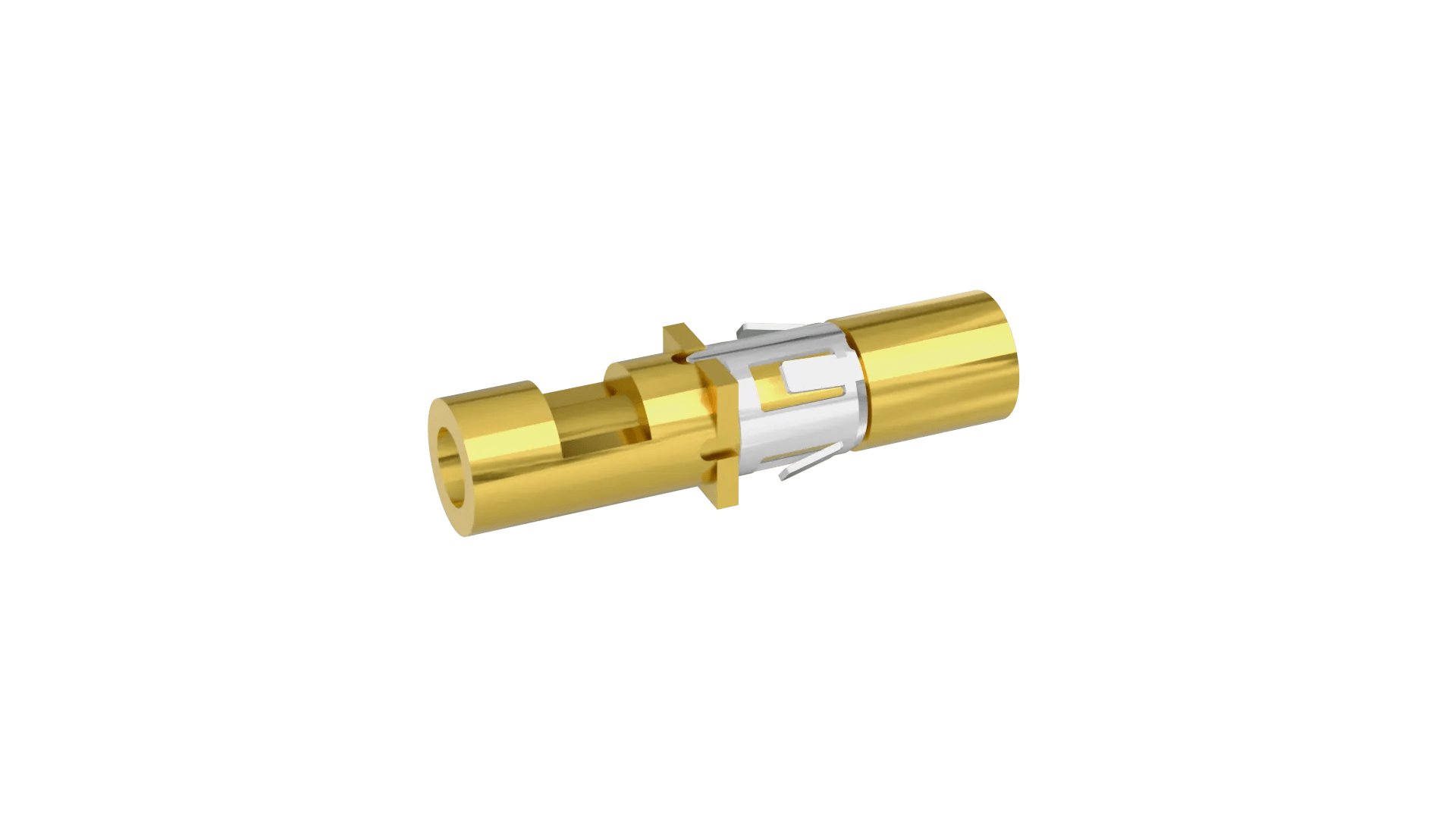

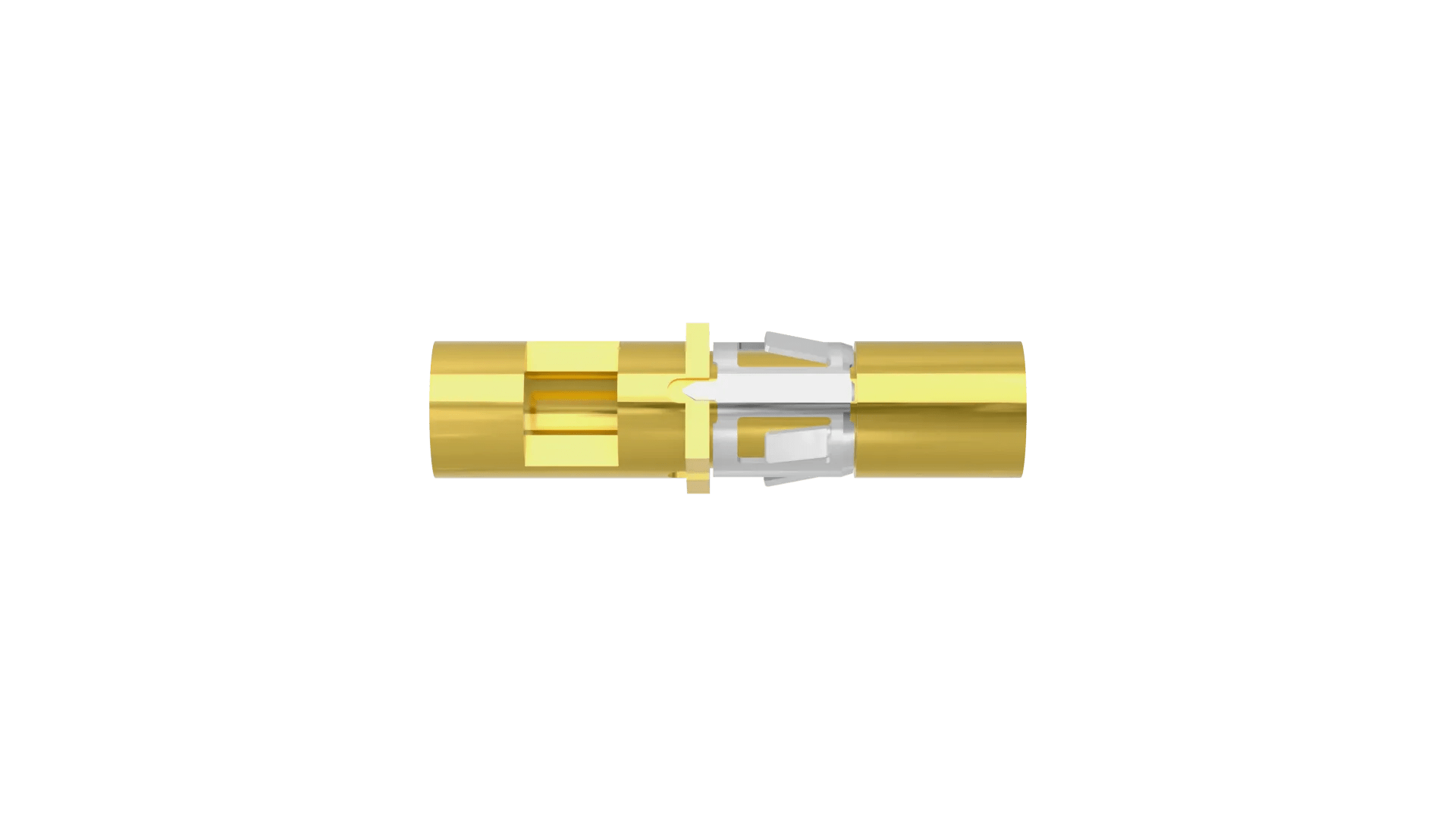

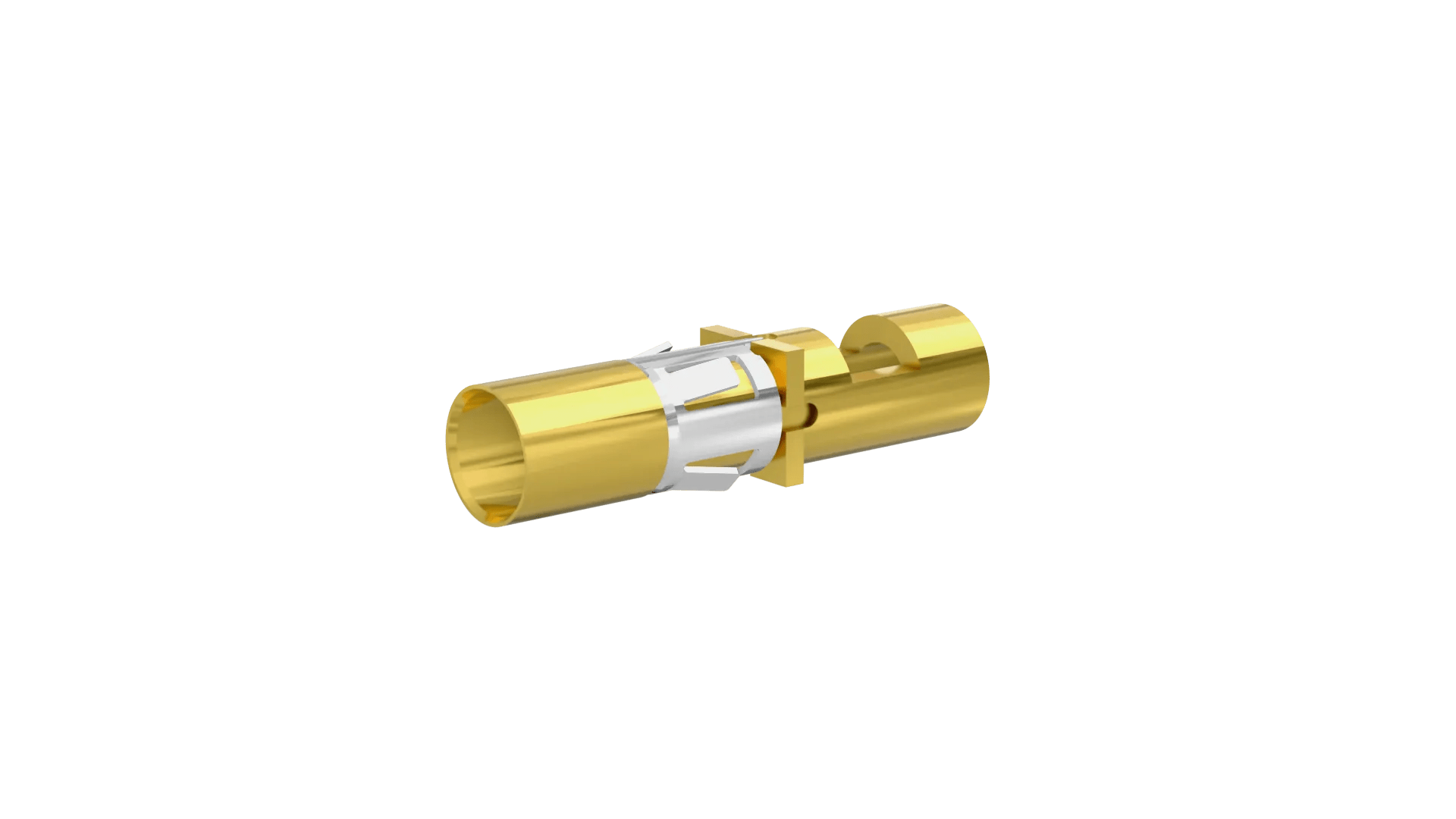

M80-327

Datamate Mix-Tek Female Straight Solder Power Contact, 16 AWG Cable


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Straight Solder, suitable for 16 AWG cable.

  • Specified as 327 in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.

  • Gold finish on contact area and termination.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Solder)

  • Wire Size:

    16 AWG

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Solder)

  • Current Rating:

    10A max per contact

  • Weight:

    0.433g

  • Dimensions:

    12.70 x 3.00 square

  • Operating Temperature:

    -55°C to +125°C
