M300-FC30605F2-0450L

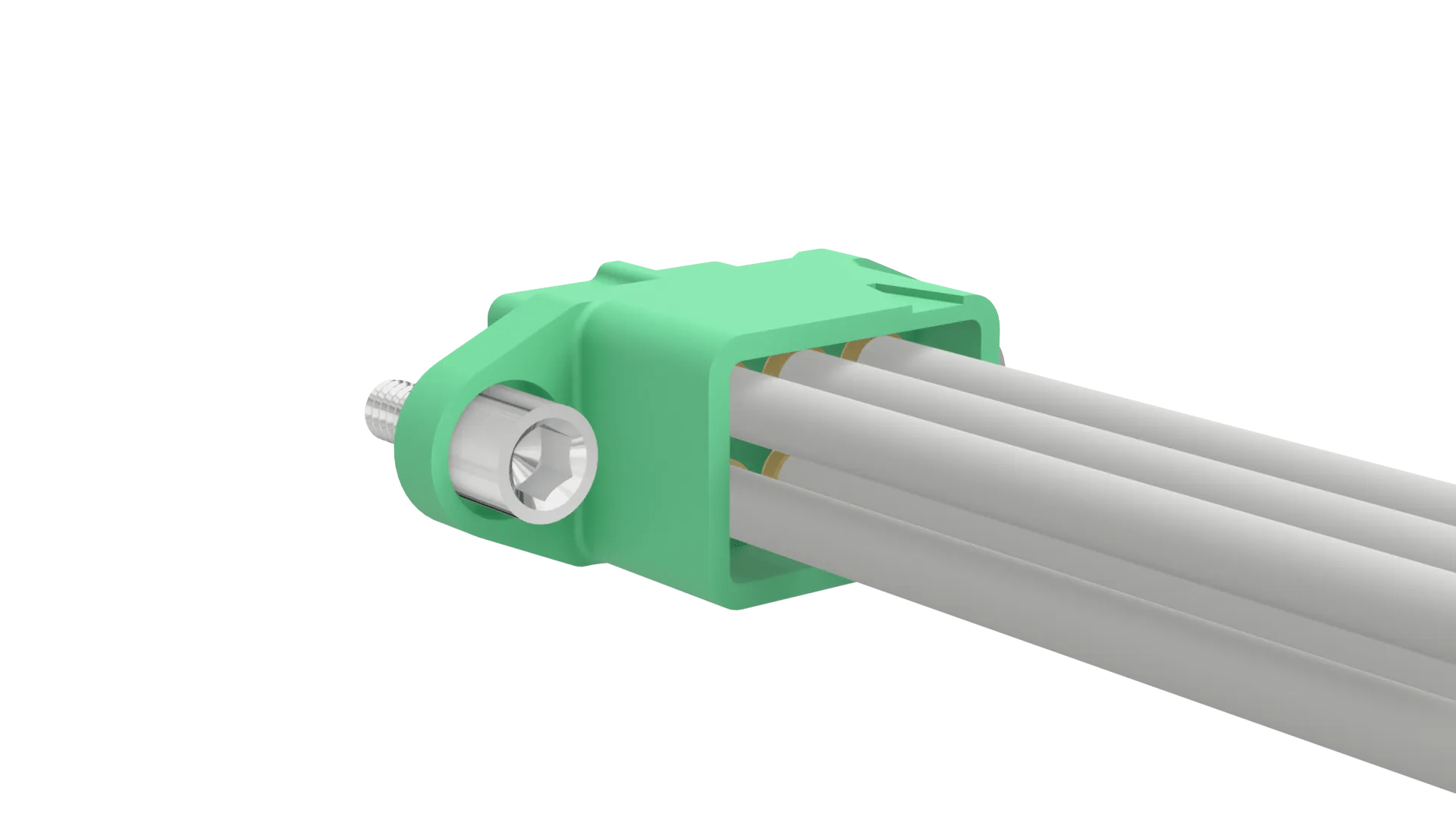

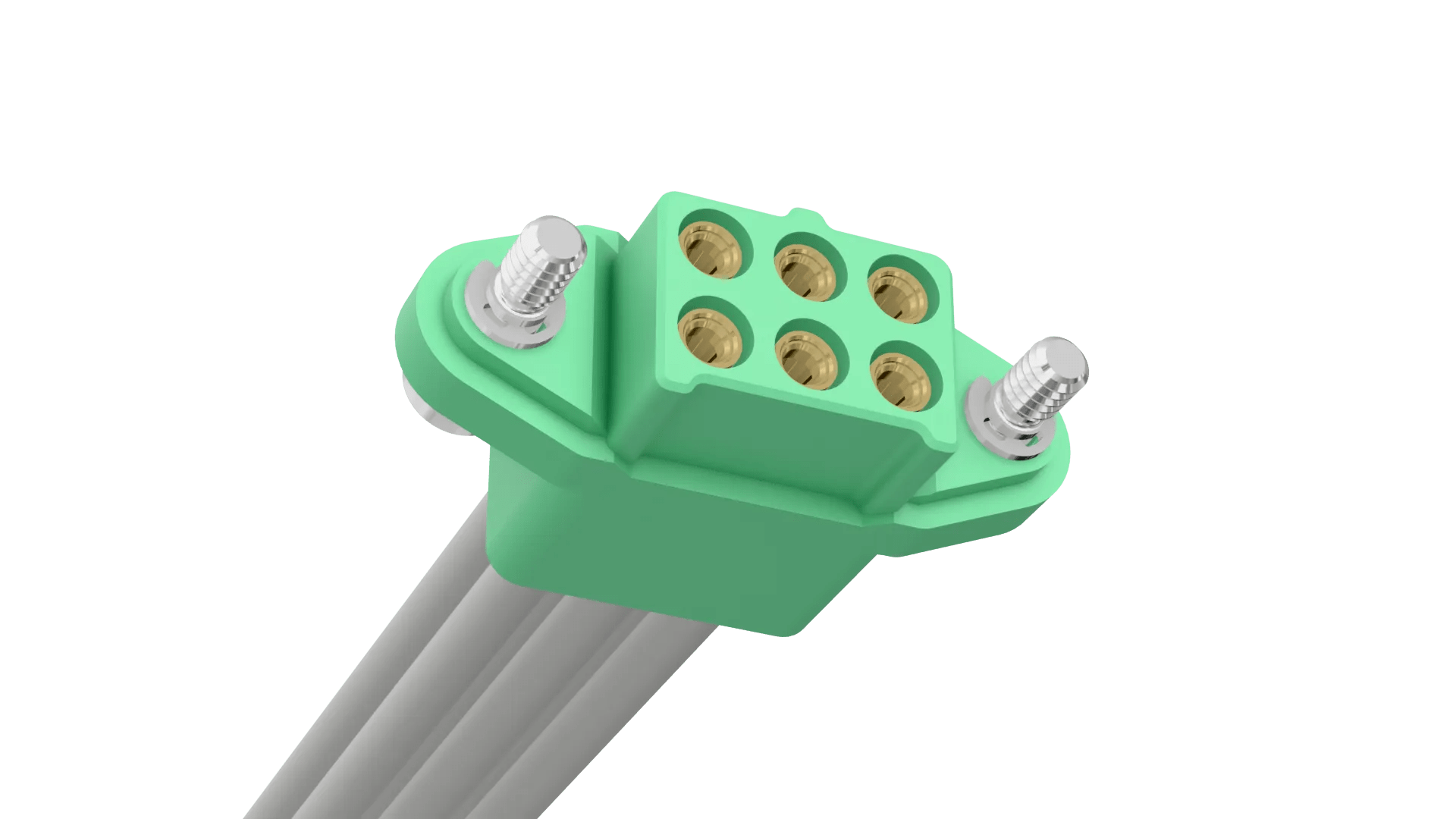

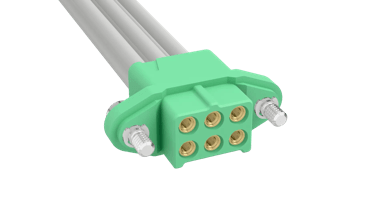

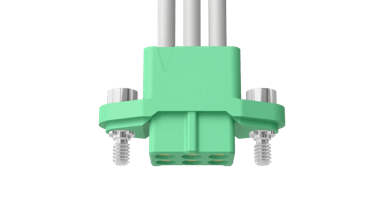

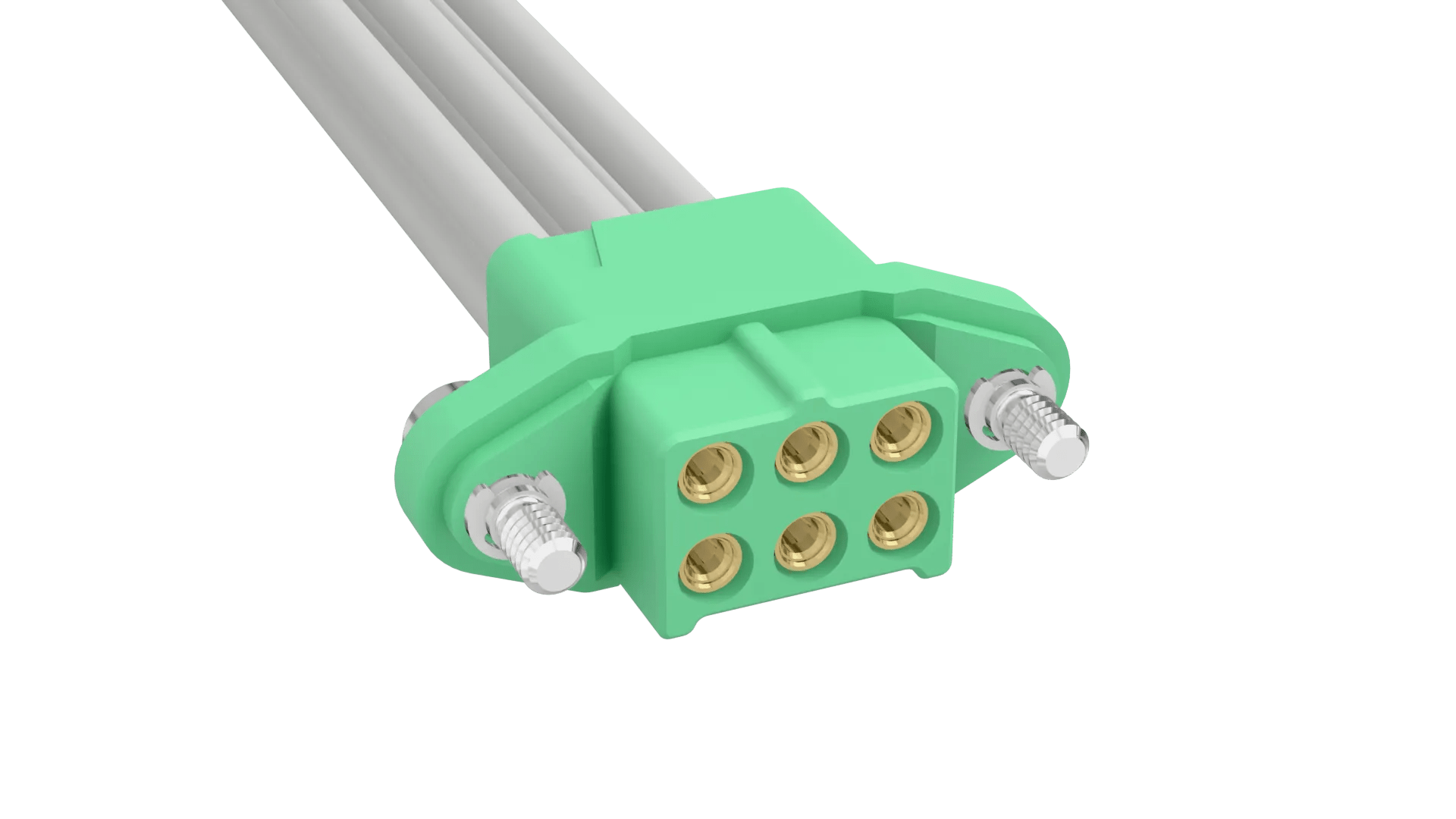

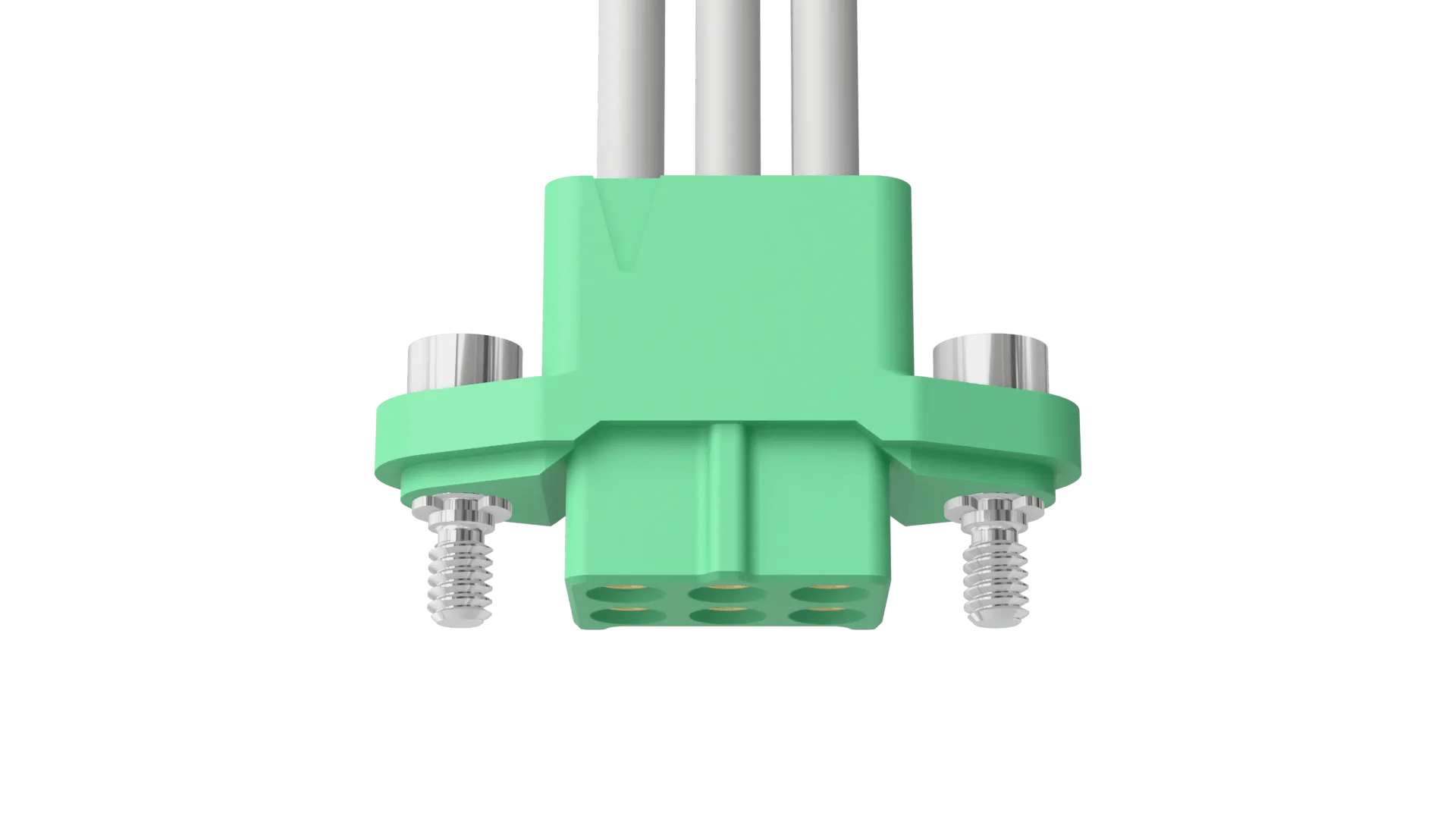

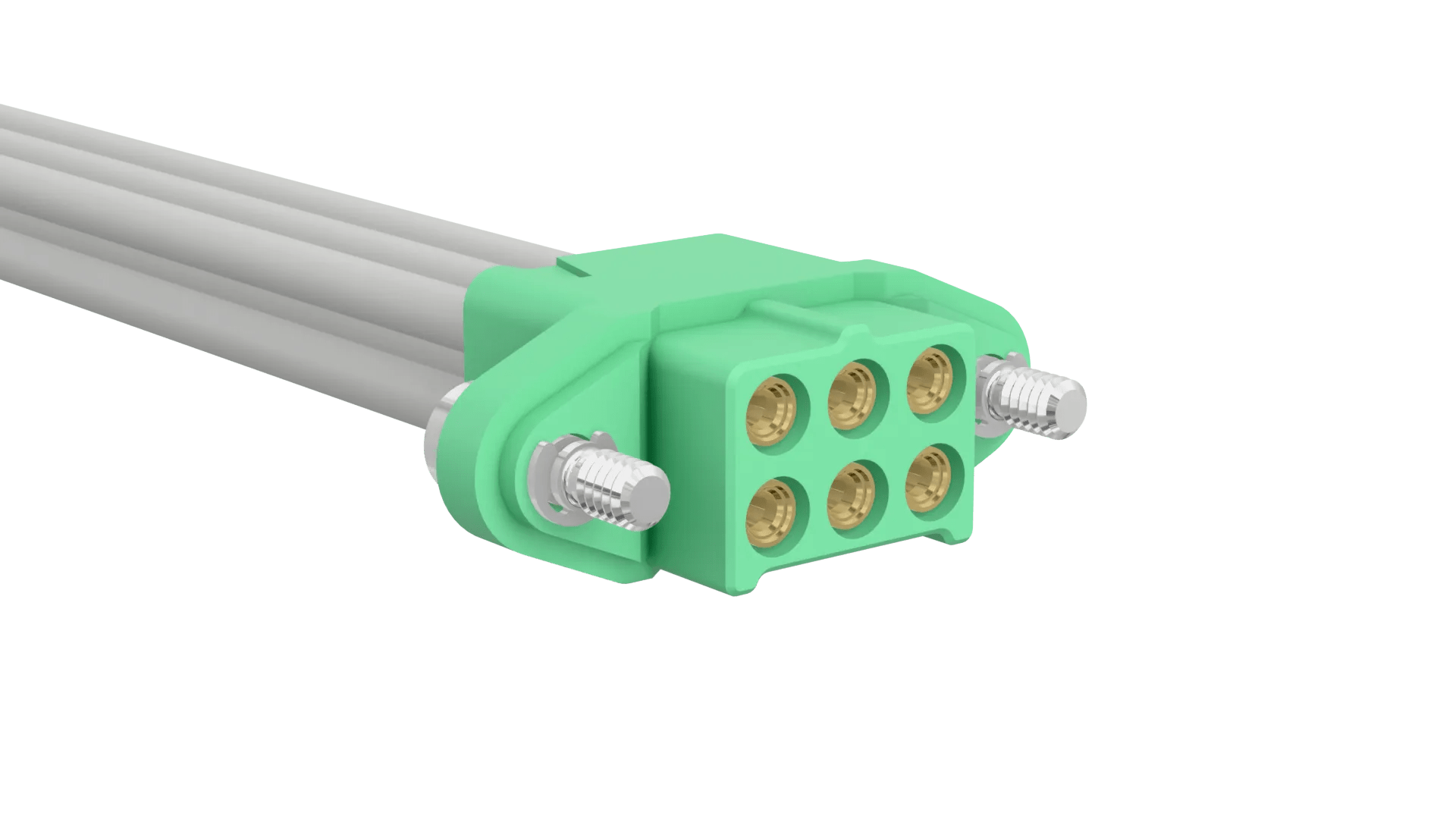

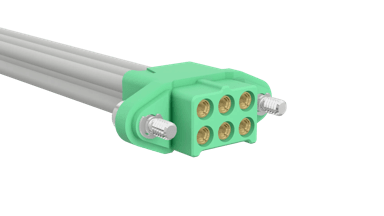

3+3 Pos. Female DIL 22AWG Cable Assembly, 450mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

  • Female Single-Ended with white 22 AWG cable, 450mm long – 6 contacts (3+3). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
  • Manufactured with the M300-0020045 crimp contacts, M300-2240696F2 Double Row crimp housing.
  • For complete pin numbering or pin out information, see Component Specification C048XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø1mm

Current Rating:

5A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

17.334g

Overall Dimensions (L x W x D) in mm:

451.00 x 21.30 x 8.00

Thread Size:

M2

Availability

64 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 55
Distributor Farnell
Location Europe
Quantity (Updated Daily) 9

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
