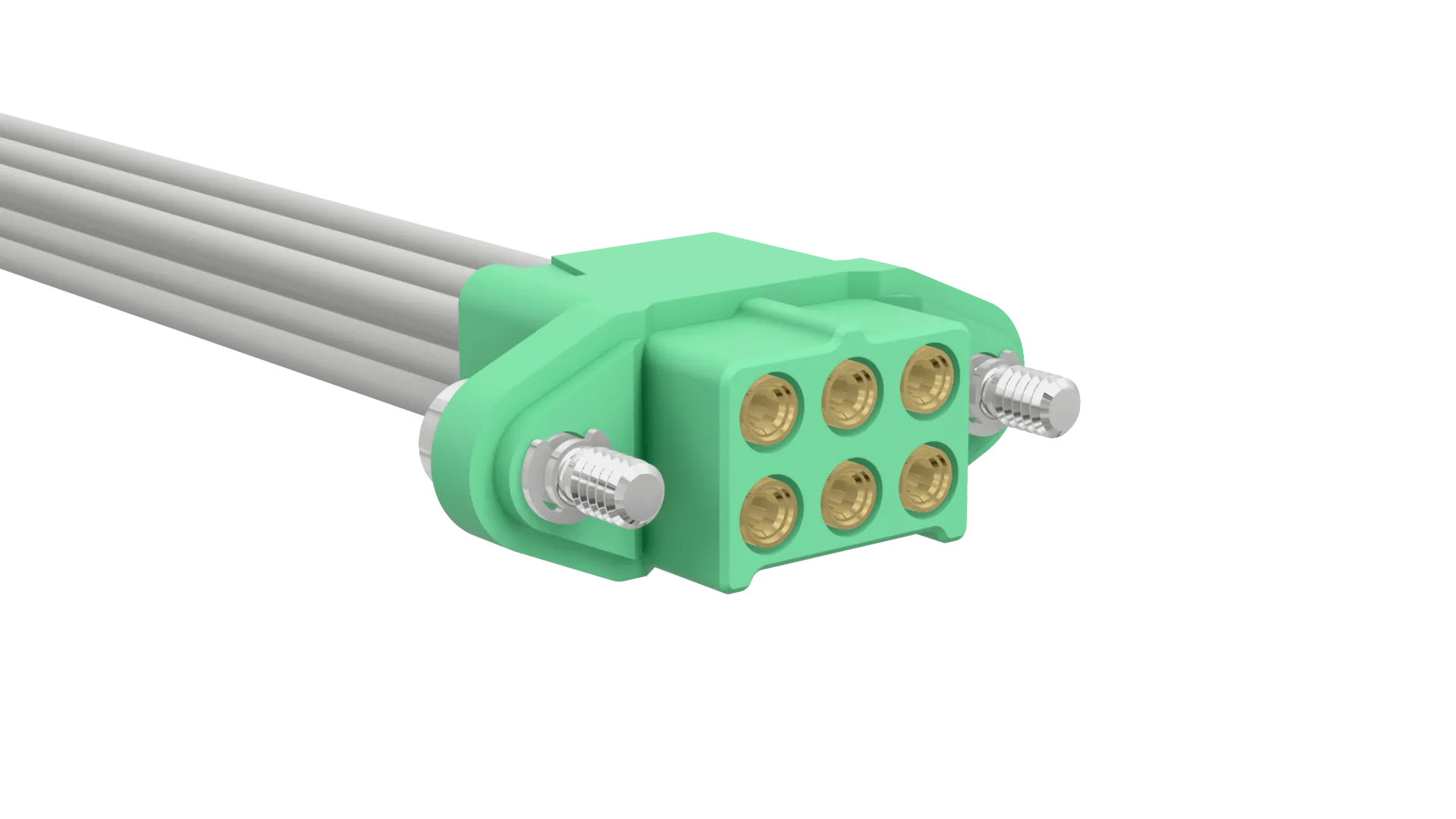

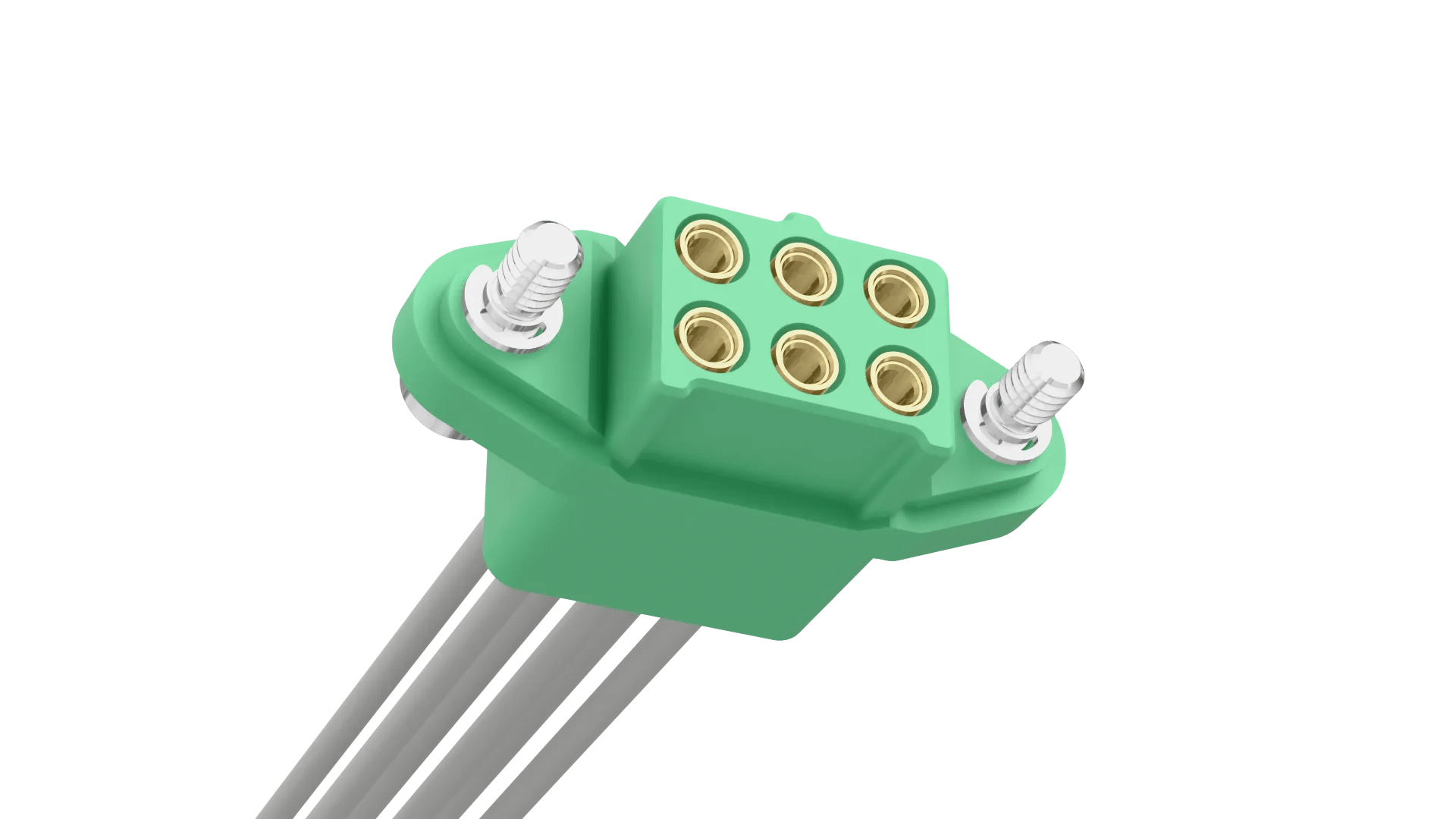

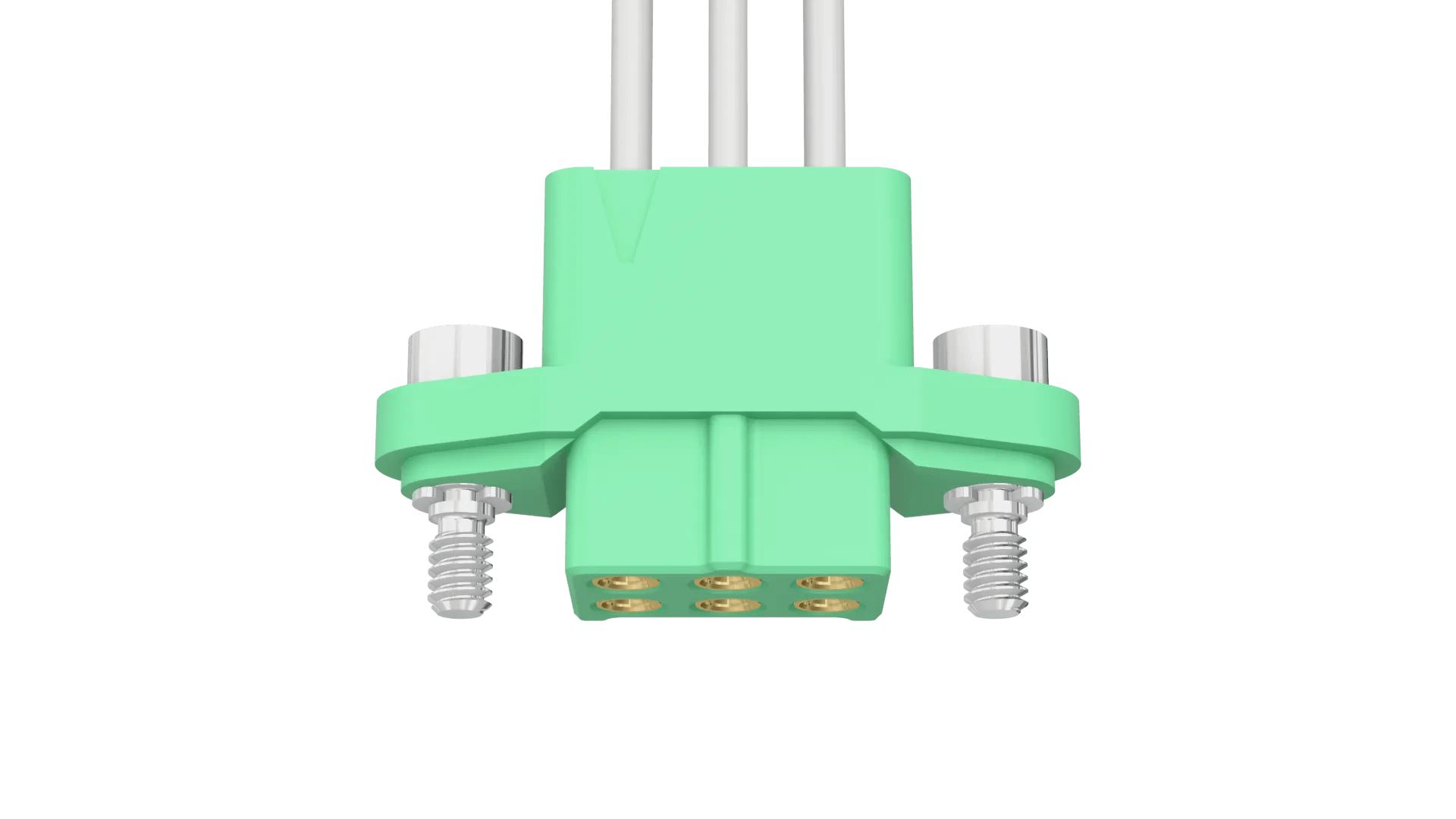

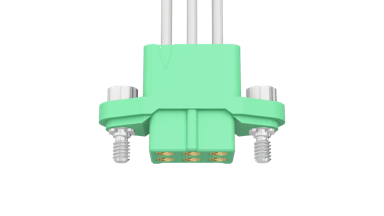

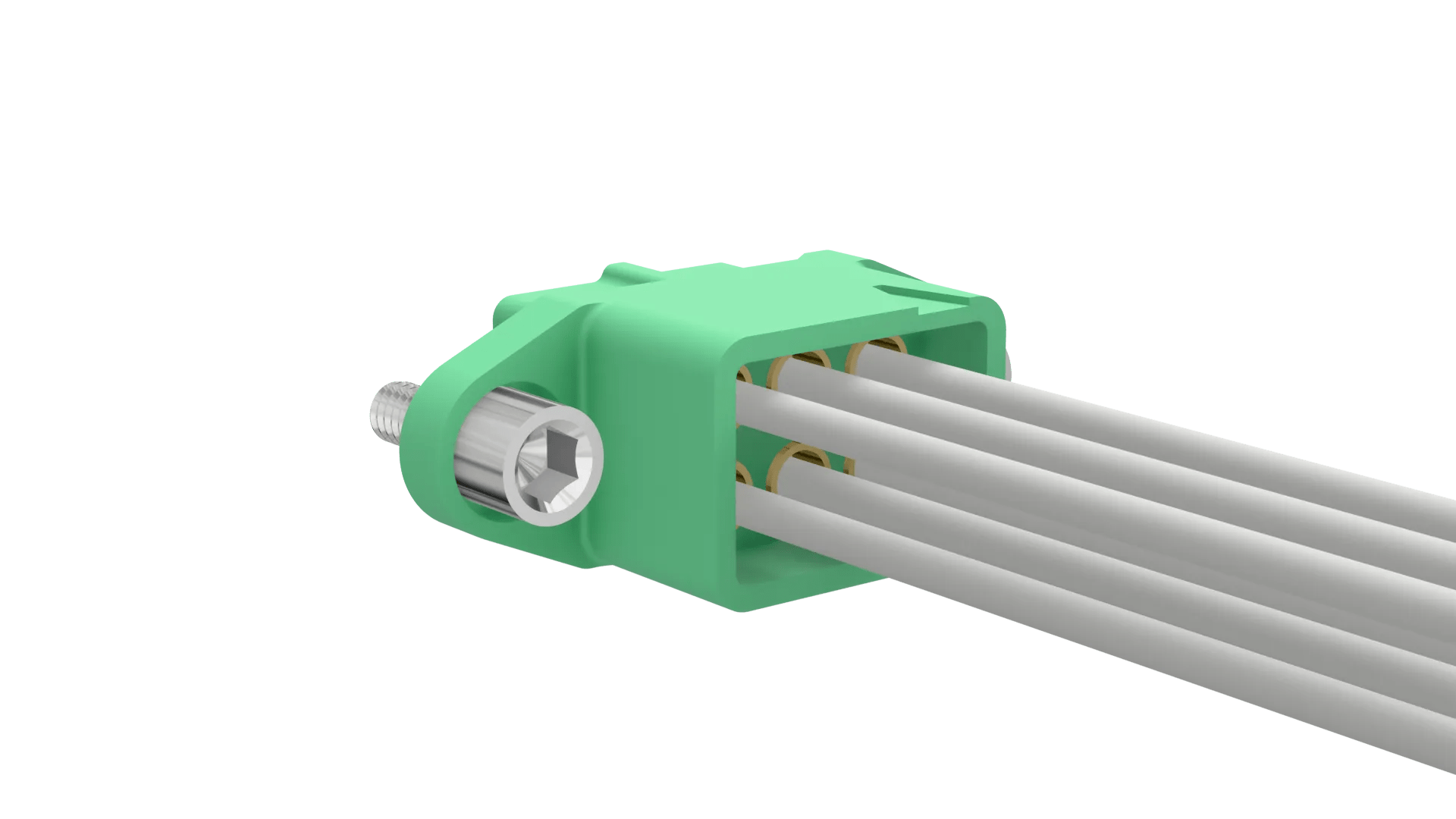

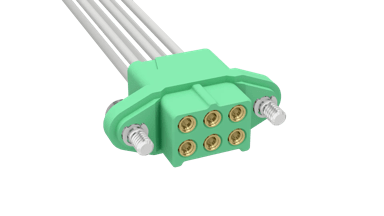

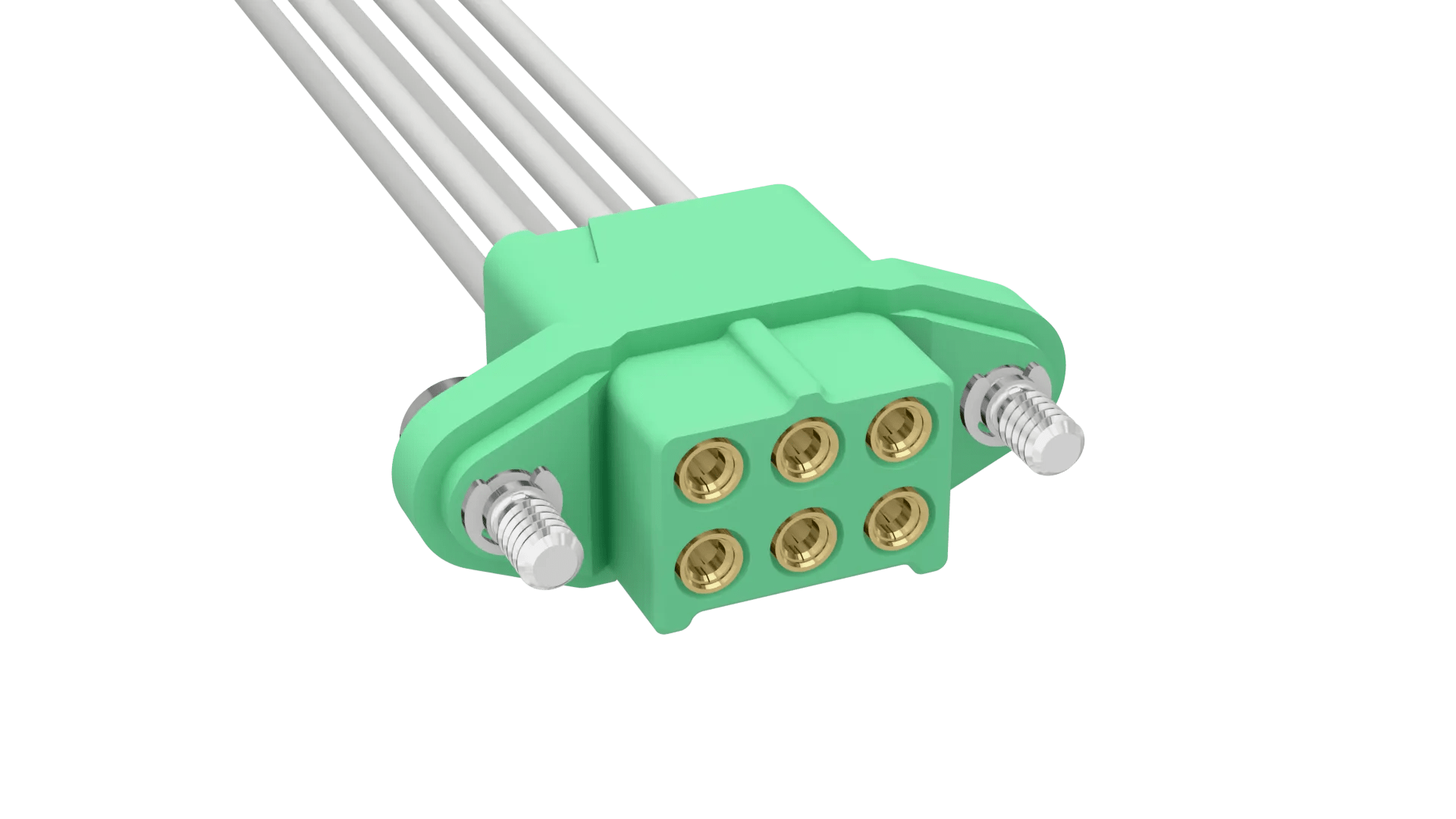

M300-FC20605F2-0150L

M300 DIL Cable Assembly, Female Single-Ended with Hex Socket jackscrews, white 20 AWG cable, 150mm long, 3+3 contacts


3.00mm Pitch High-Reliability Connector - M300

  • Female Single-Ended with white 20 AWG cable, 150mm (6") long - 6 contacts (3+3). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.

  • Manufactured with the M300-0010045 crimp contacts, M300-2240696F2 Double Row crimp housing.

  • For complete pin numbering or pin out information, see Component Specification C048XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    3.00mm (0.118")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    20 AWG

  • Mating Pin Size:

    Ø1mm

  • Style of Jackscrews:

    Floating Jackscrew with Hex Socket Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    6

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    8A max per contact simultaneous

  • Weight:

    9.557g

  • Dimensions:

    151.00 x 21.30 x 8.00

  • Operating Temperature:

    -65°C to +175°C

Downloads

    Environmental Compliance

  • M300-FC20605F2-0150L

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M300-FCXXX05F2-XXXXL.pdf

  • Plating thickness on M300 contacts

  • C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT043 - M300 Series - General (Electrical + Mechanical and Environmental)

  • Product Information

  • Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability

  • Catalog page - M300 Mating Profiles + Pin Numbering

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin
