M300-FC10605F2-0150L
3+3 Pos. Female DIL 18 AWG Cable Assembly, 150mm, single-end, Jackscrews
3.00mm Pitch High-Reliability Connector - M300
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description

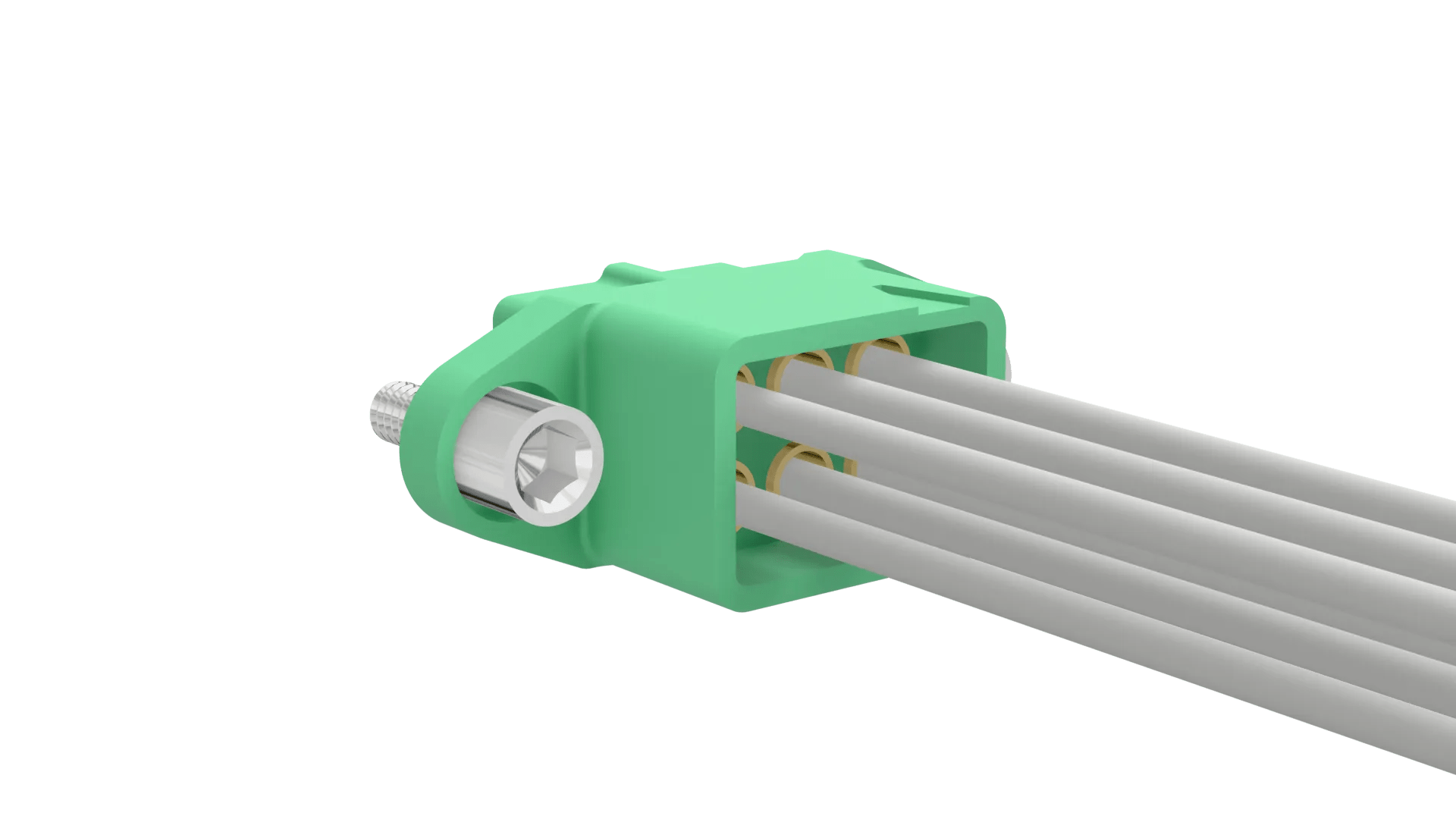

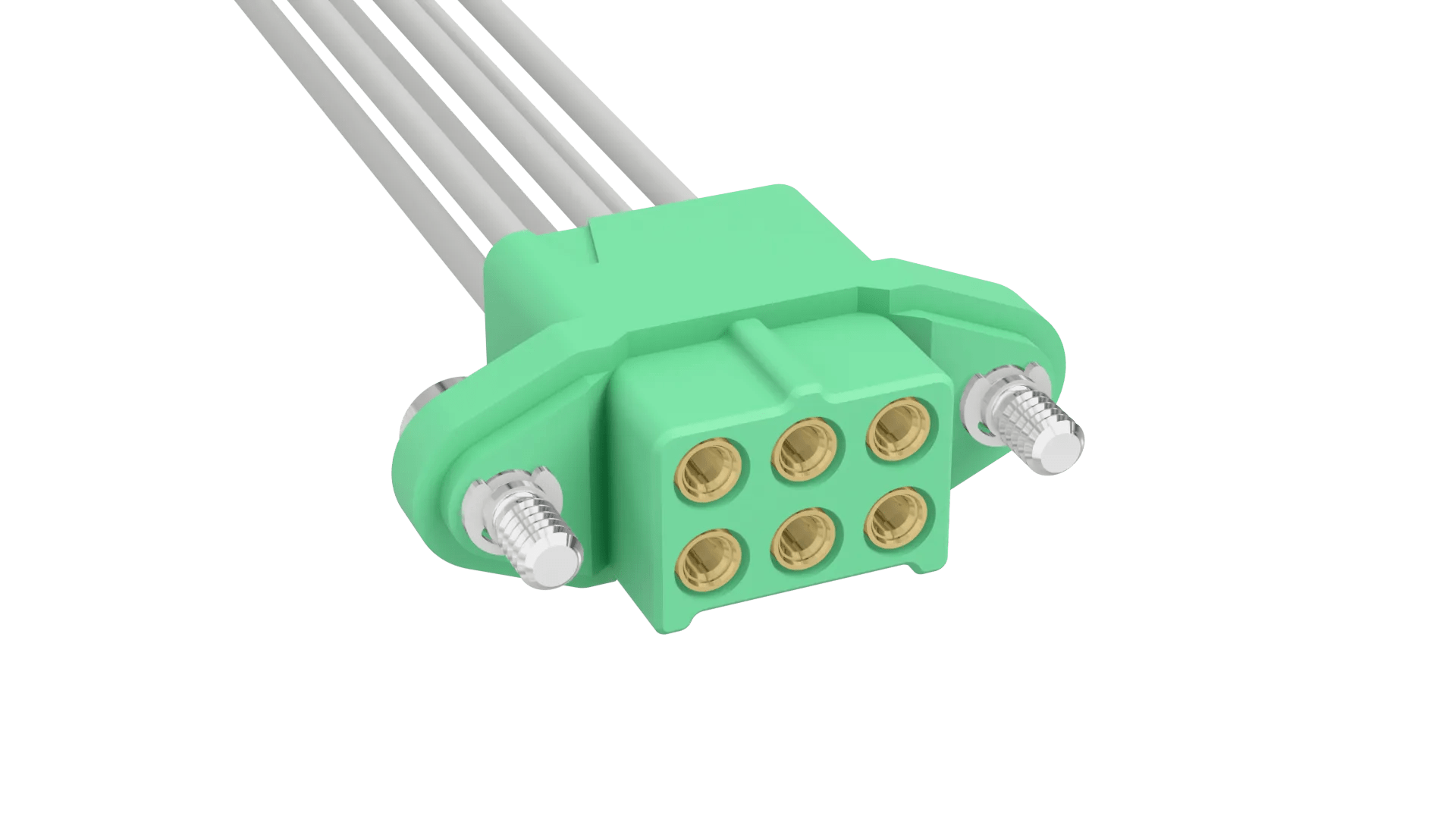

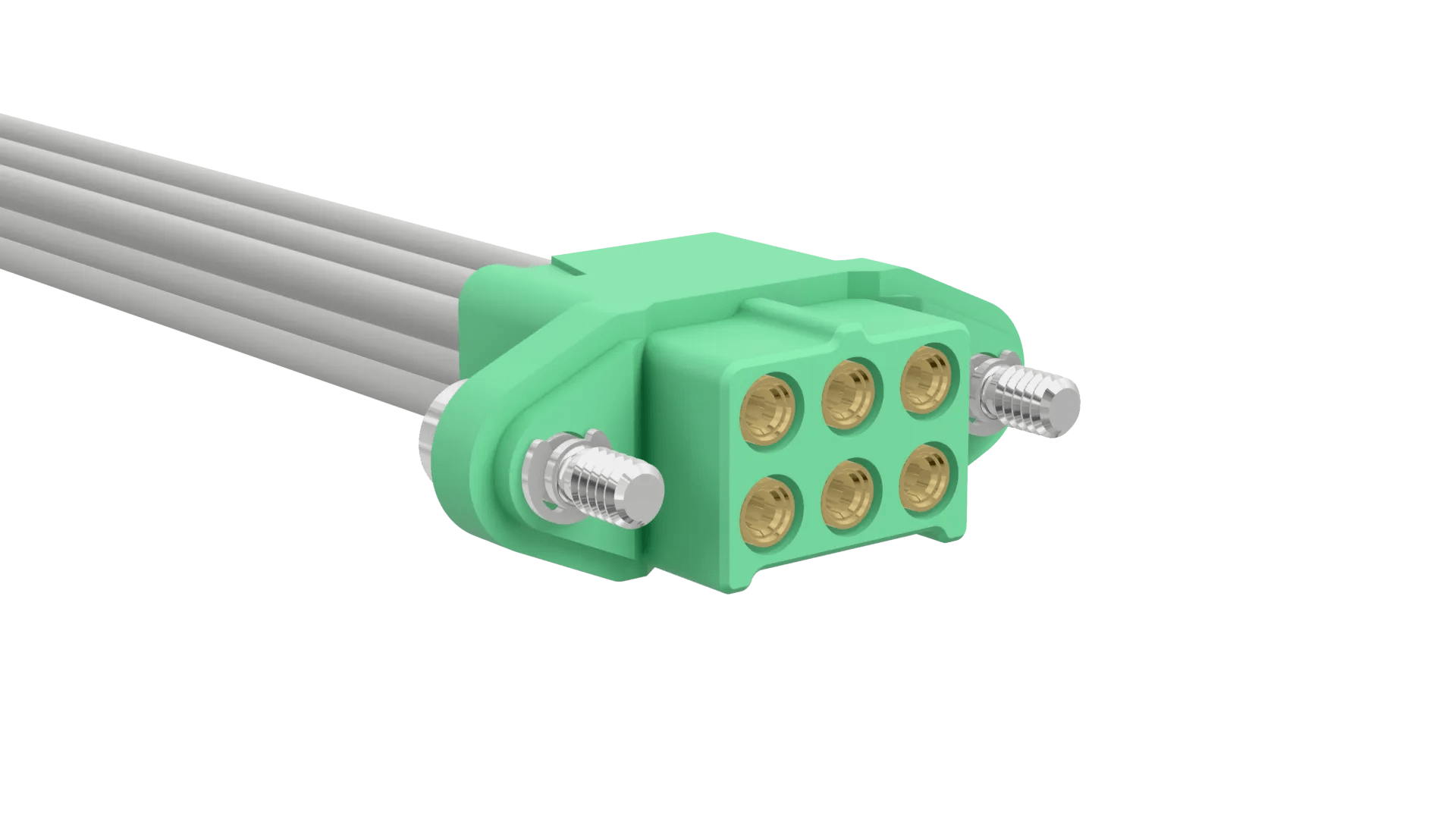

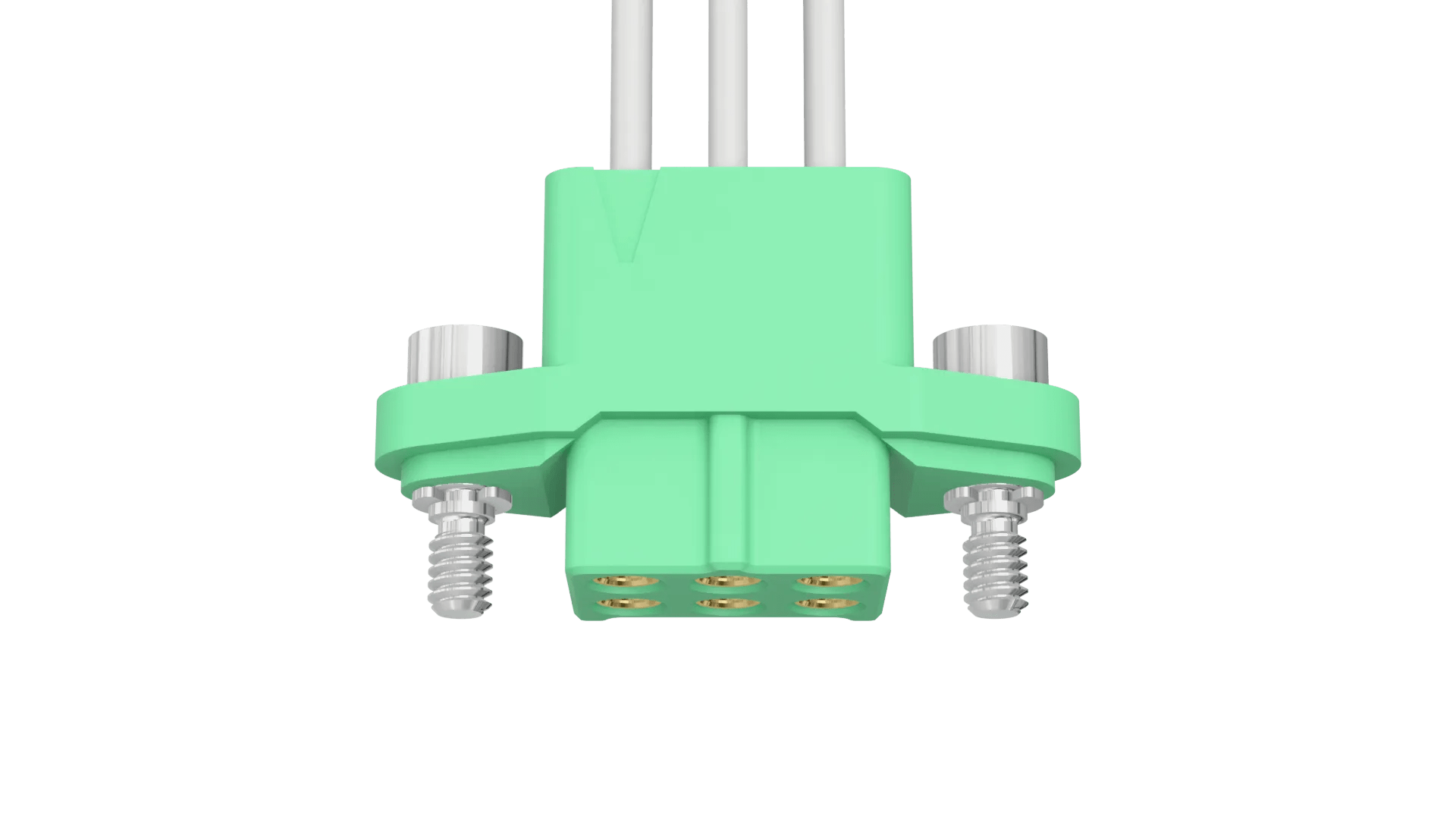

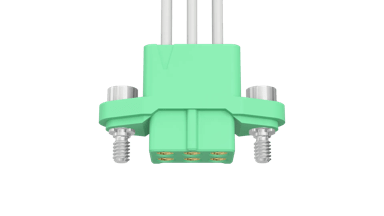

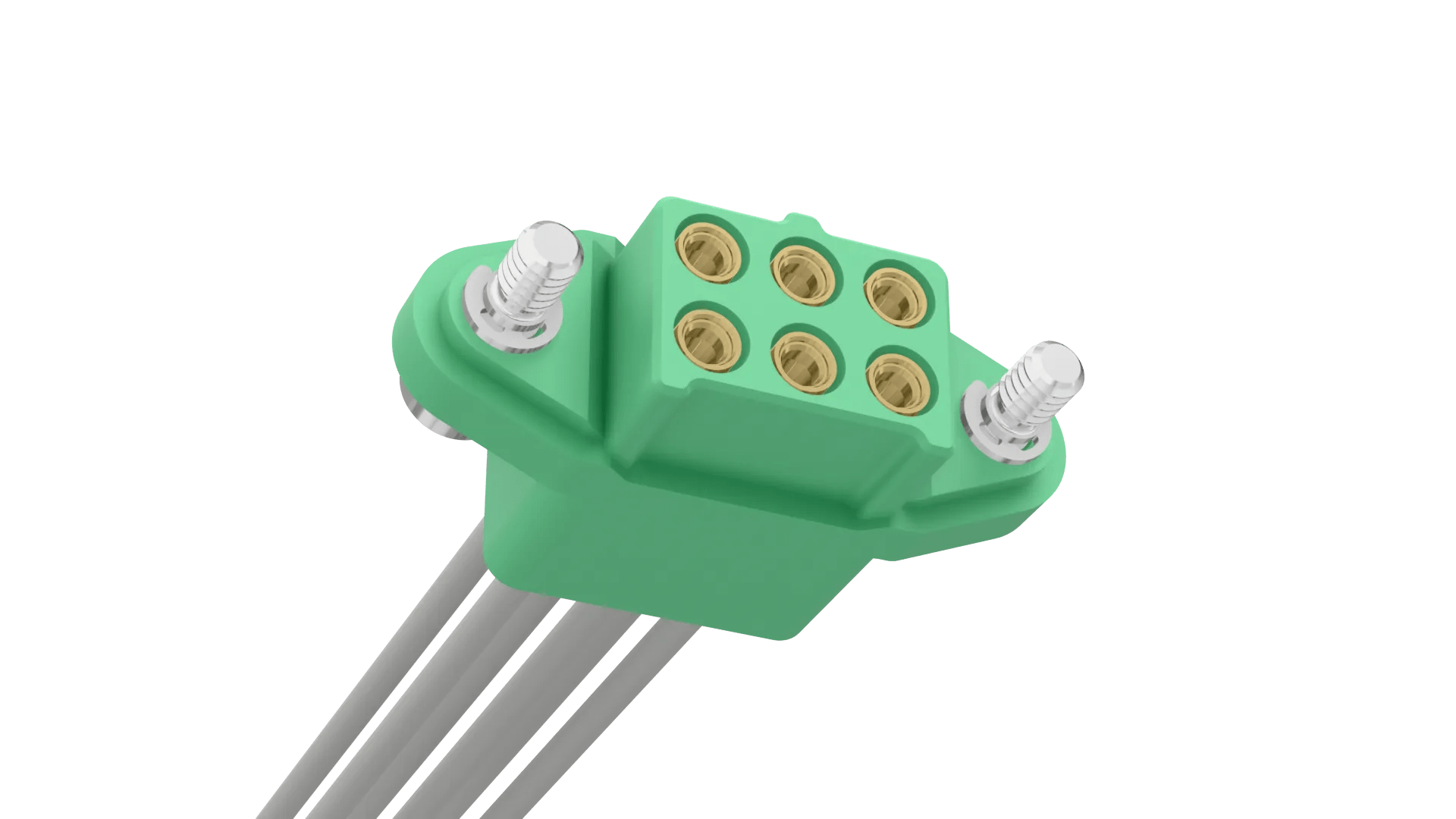

- Female Single-Ended with white 18 AWG cable, 150mm (6″) long – 6 contacts (3+3). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
- Manufactured with the M300-0010045 crimp contacts, M300-2240696F2 Double Row crimp housing.
- For complete pin numbering or pin out information, see Component Specification C048XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
3.00mm (0.118")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
18 AWG
Mating Pin Size:
Ø1mm
Current Rating:
10A max per contact simultaneous
Operating Temperature:
-65°C to +175°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
6
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
Polyamide (Nylon) 4T
Housing Colour:
Green
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
13.039g
Overall Dimensions (L x W x D) in mm:
151.00 x 21.30 x 8.00
Thread Size:
M2
Mating Profiles:
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).
Was this answer useful?
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Was this answer useful?
I can see the current rating – what is the maximum voltage rating?
The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
Was this answer useful?
