M300-2250396F2

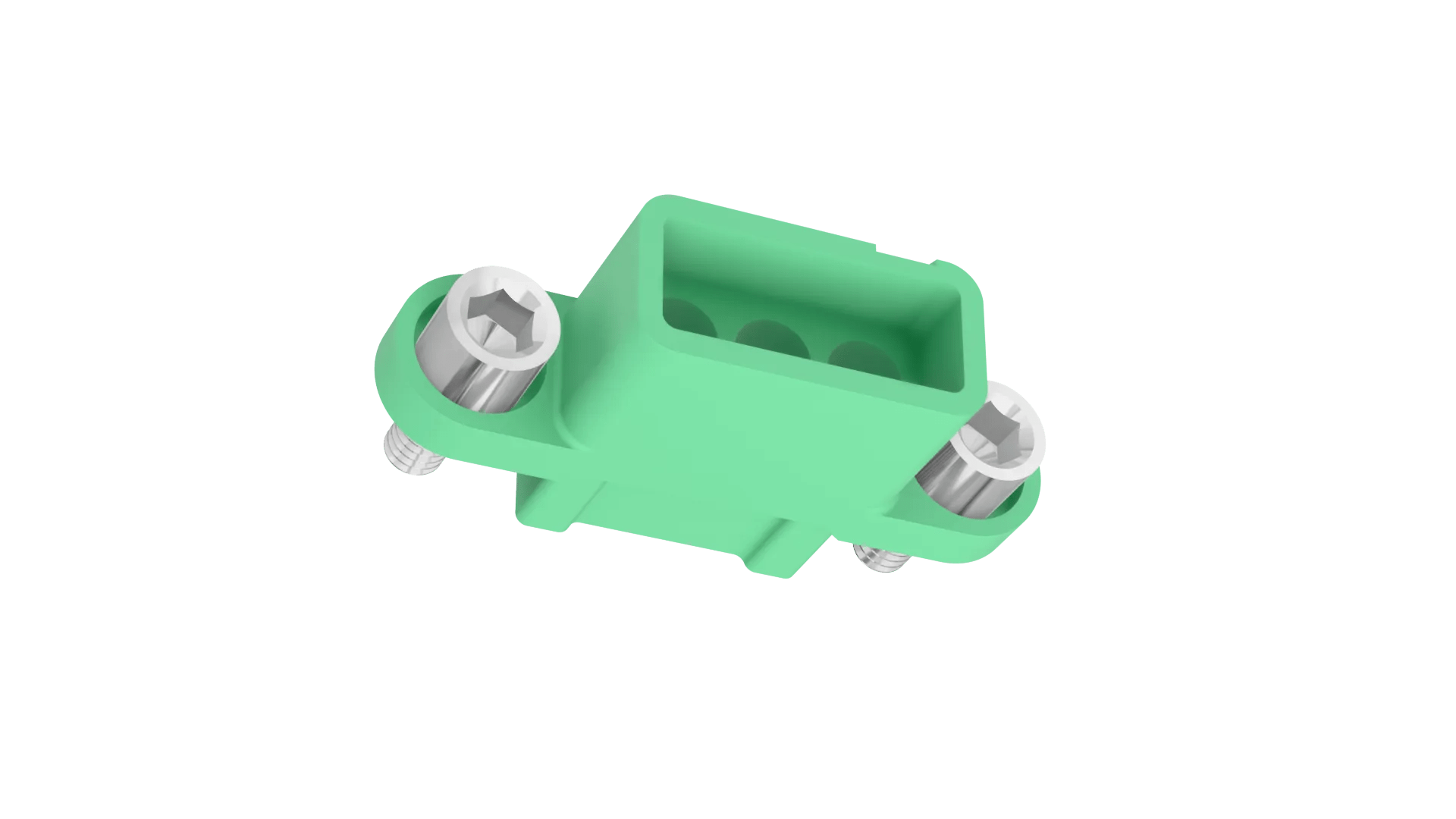

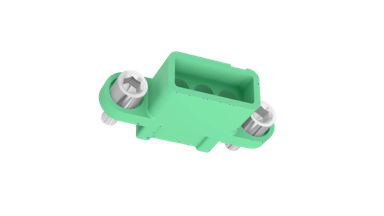

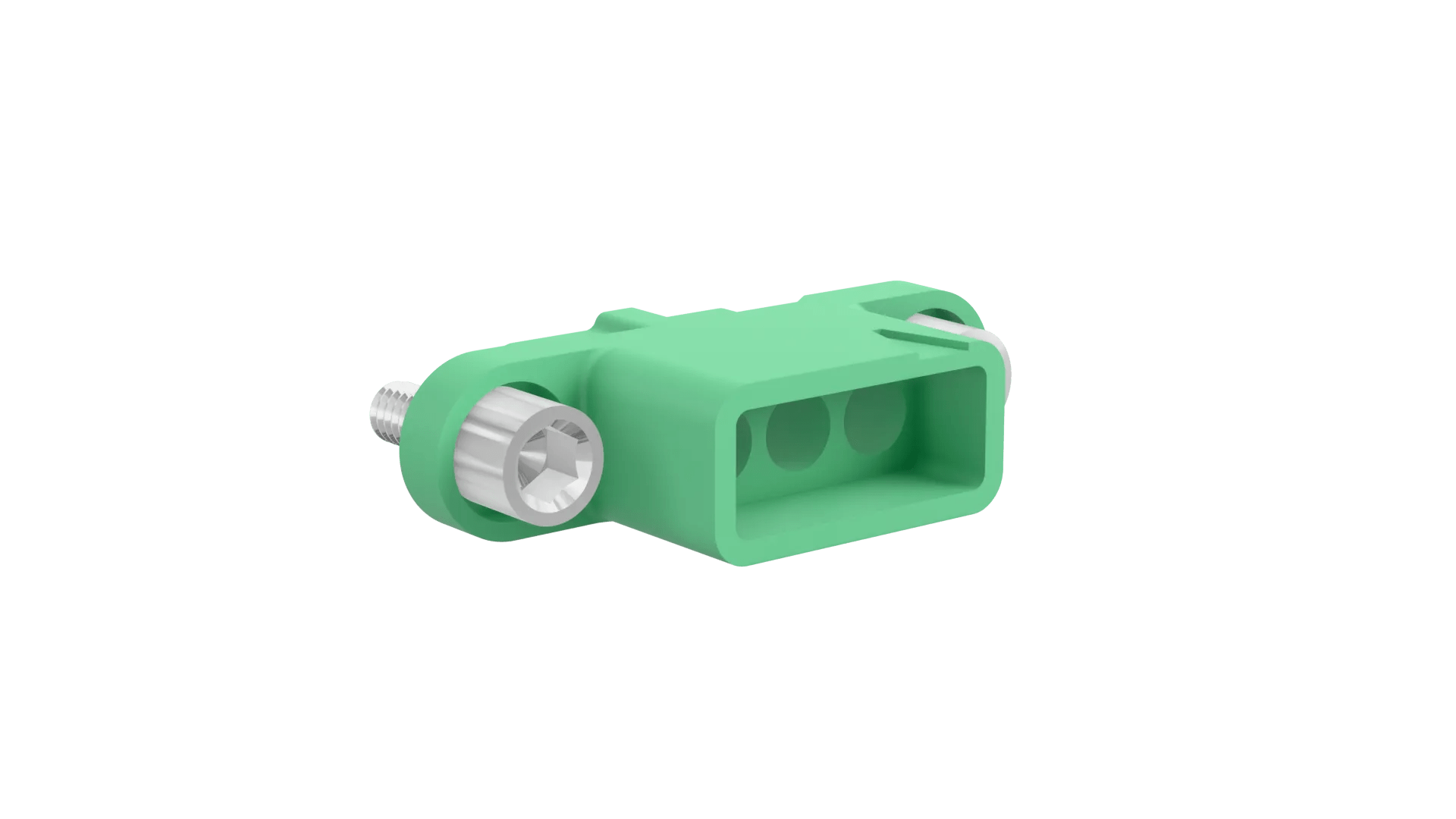

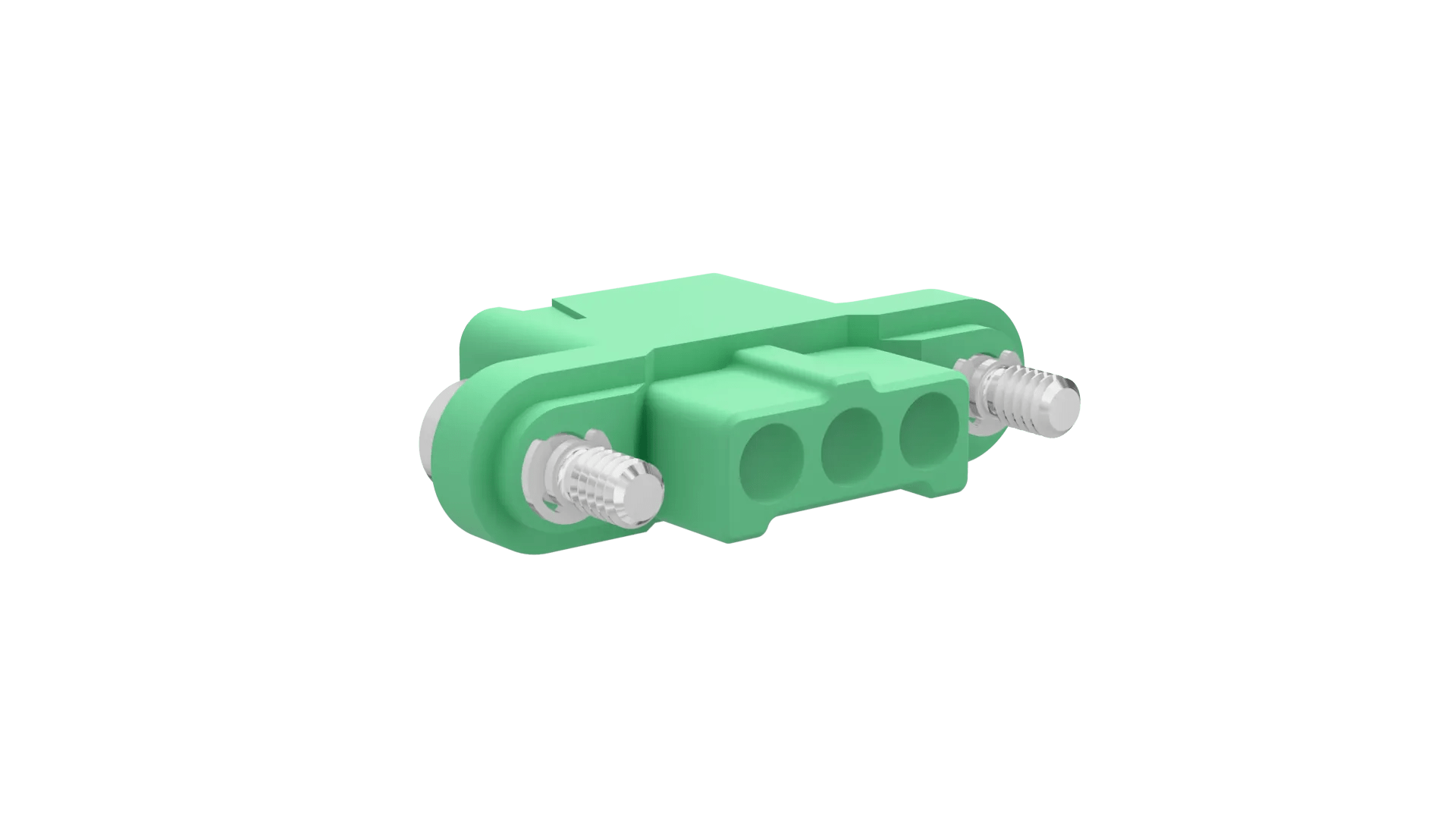

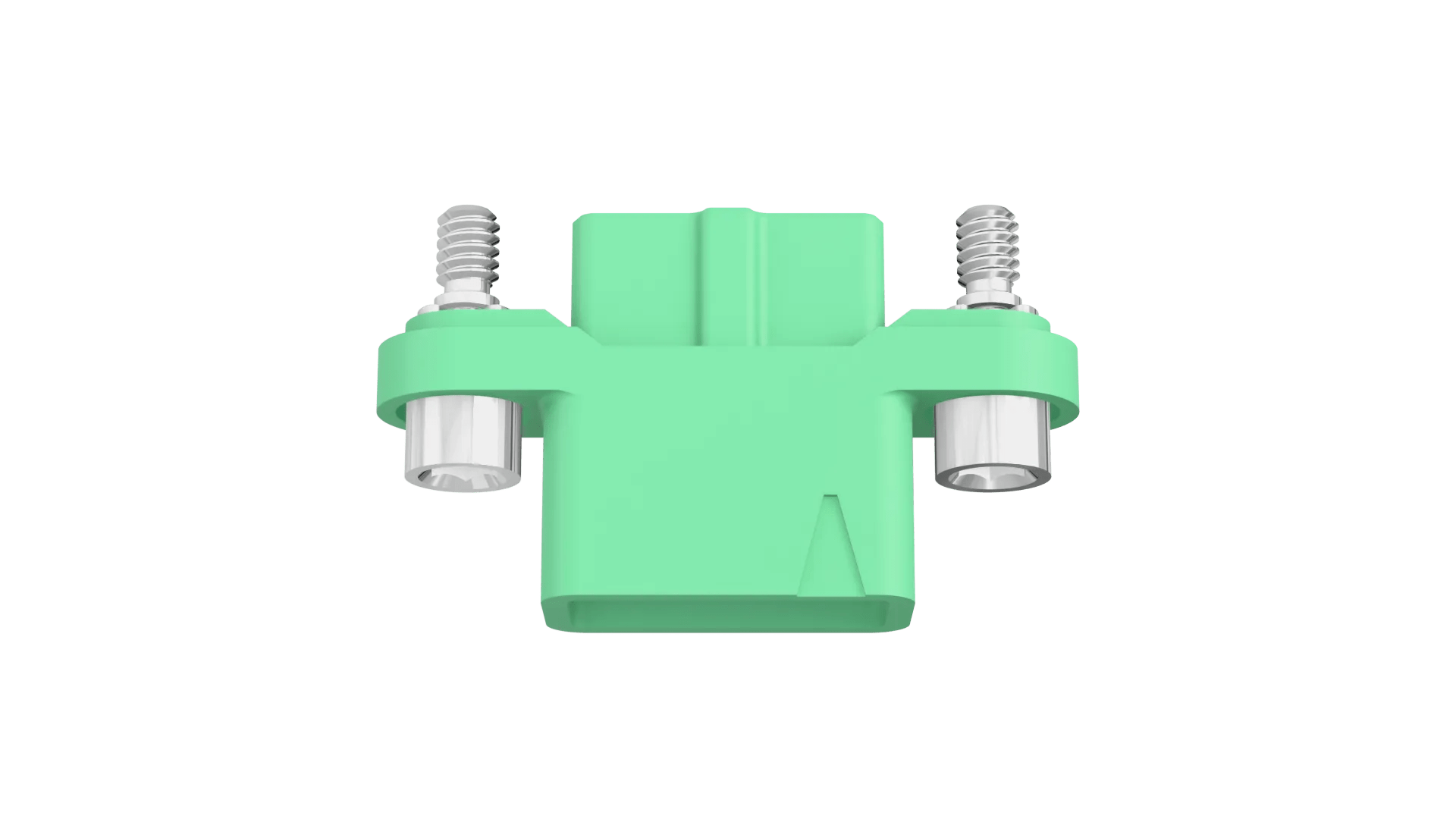

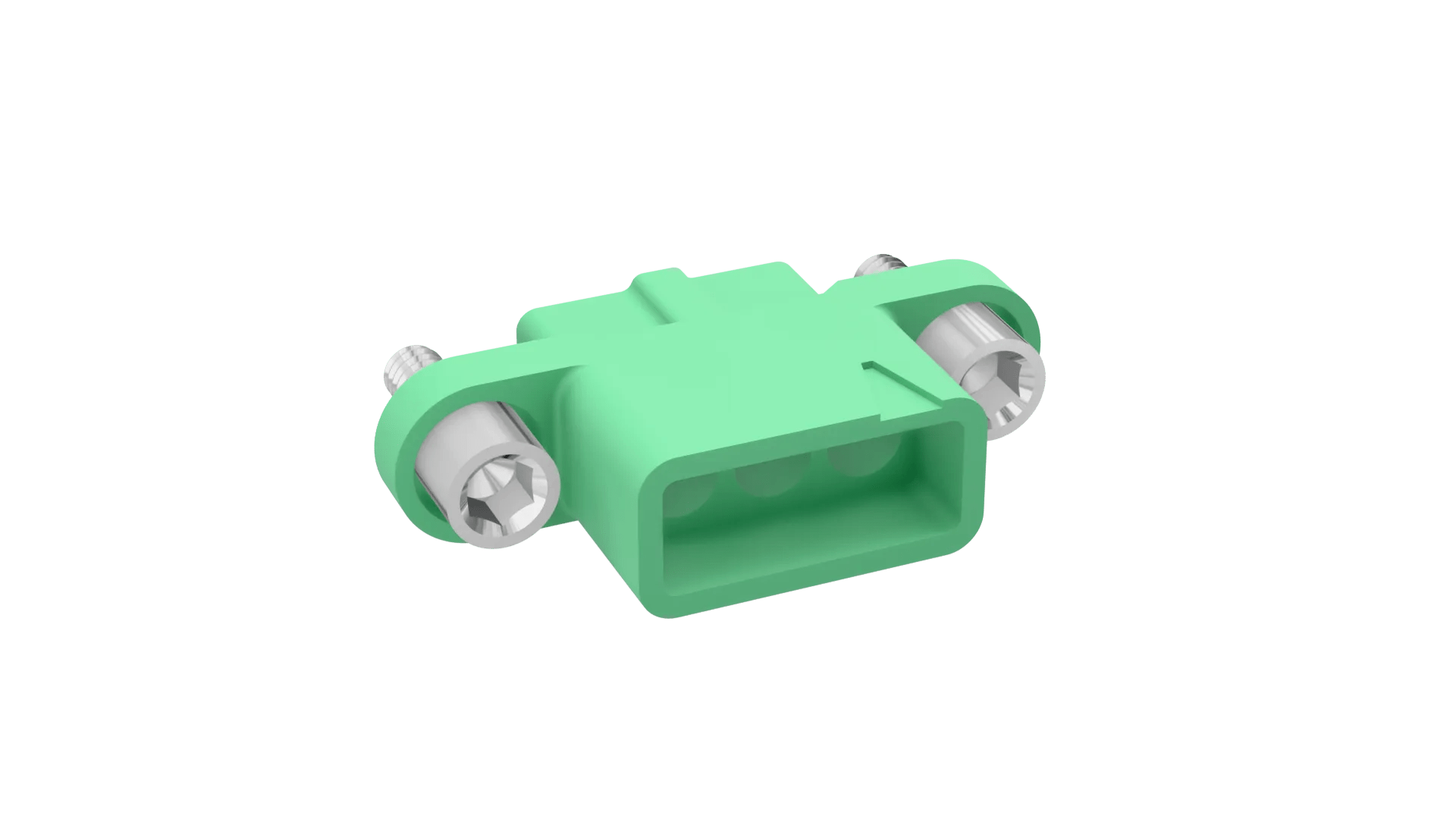

3 Pos. Female SIL Cable Housing, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

  • Single Row Polarized Female Housing, with Hex Socket jackscrews and rear potting area – 3 contact. Contacts to be purchased separately.
  • Contacts to be purchased separately – use with crimp contacts M300-0010045 or M300-0020045.
  • For complete pin numbering or pin out information, see Component Specification C048XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

3.00mm (0.118")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Mating Pin Size:

Ø1mm

Current Rating:

10A max per contact simultaneous

Operating Temperature:

-65°C to +175°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

3

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.32g

Overall Dimensions (L x W x D) in mm:

21.30 x 5.30 x 12.70

Thread Size:

M2

Availability

3,320 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Newark
Location USA
Quantity (Updated Daily) 1221
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1138
Distributor Farnell
Location Europe
Quantity (Updated Daily) 740
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 106
Distributor Powell Electronics
Location USA
Quantity (Updated Daily) 101
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 9
Distributor Anglia
Location Europe
Quantity (Updated Daily) 5

Questions & Answers Ask a Question

What potting material do you recommend using for backpotting this connector?

We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).

I can see the current rating – what is the maximum voltage rating?

The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
