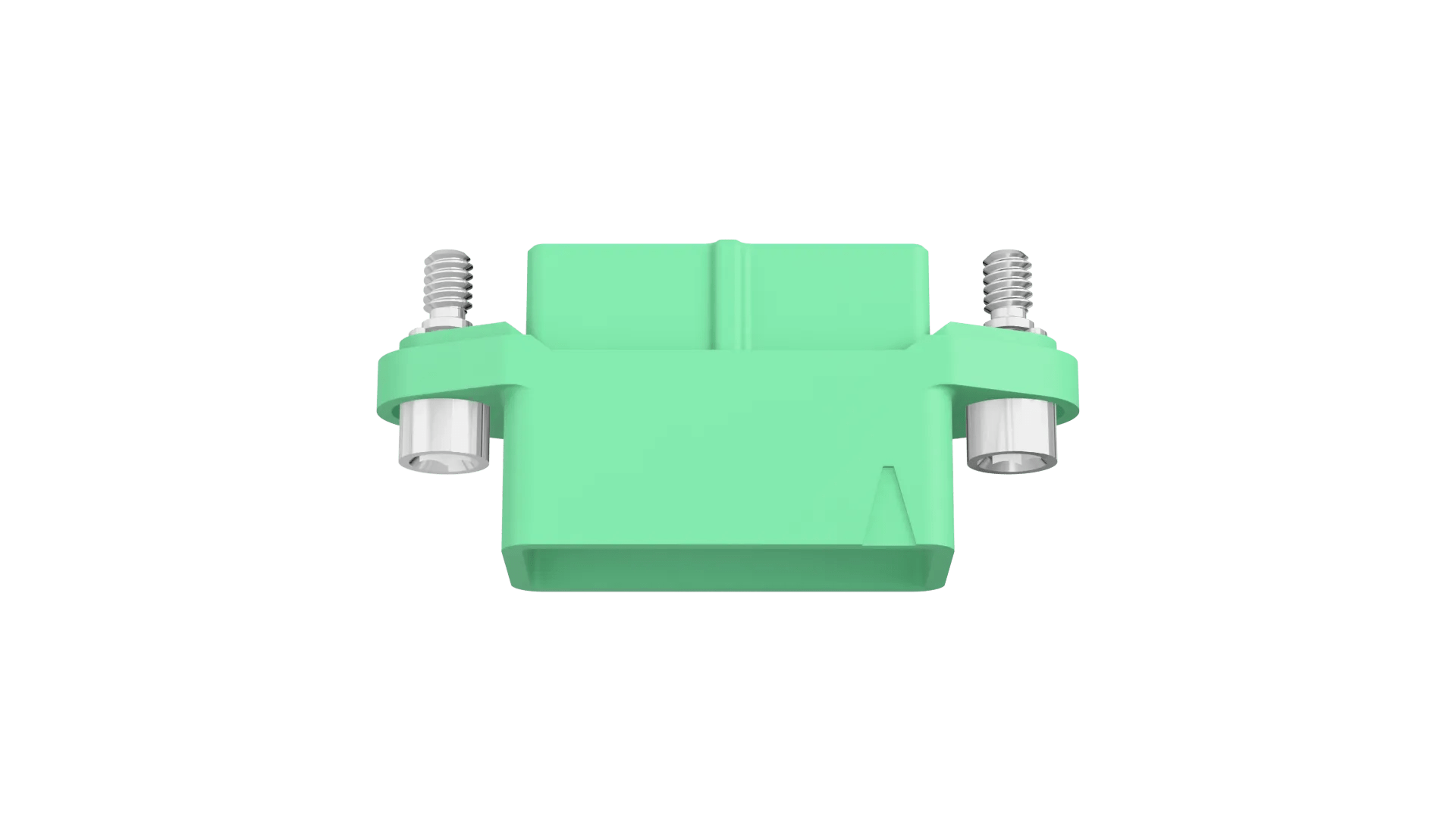

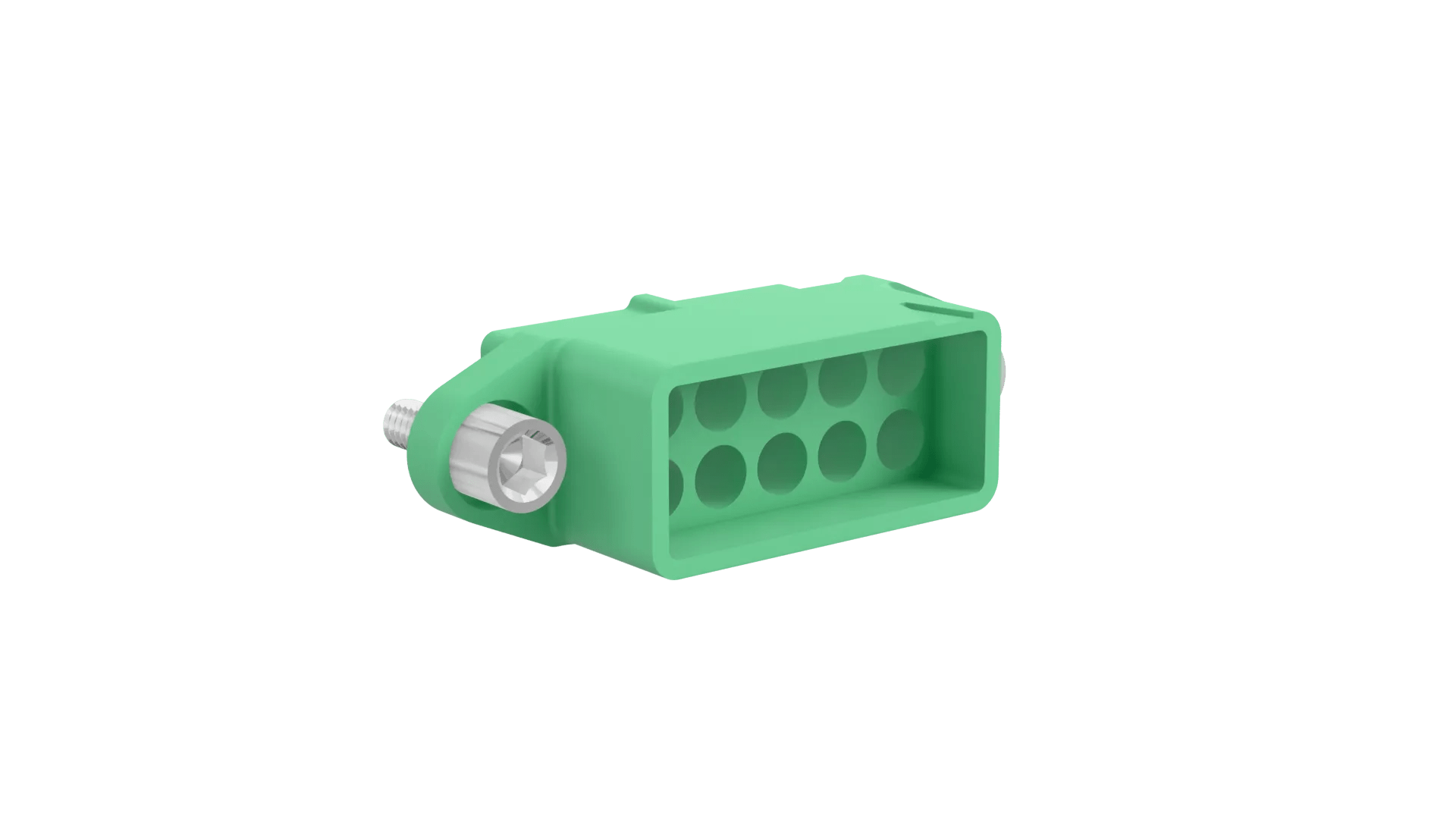

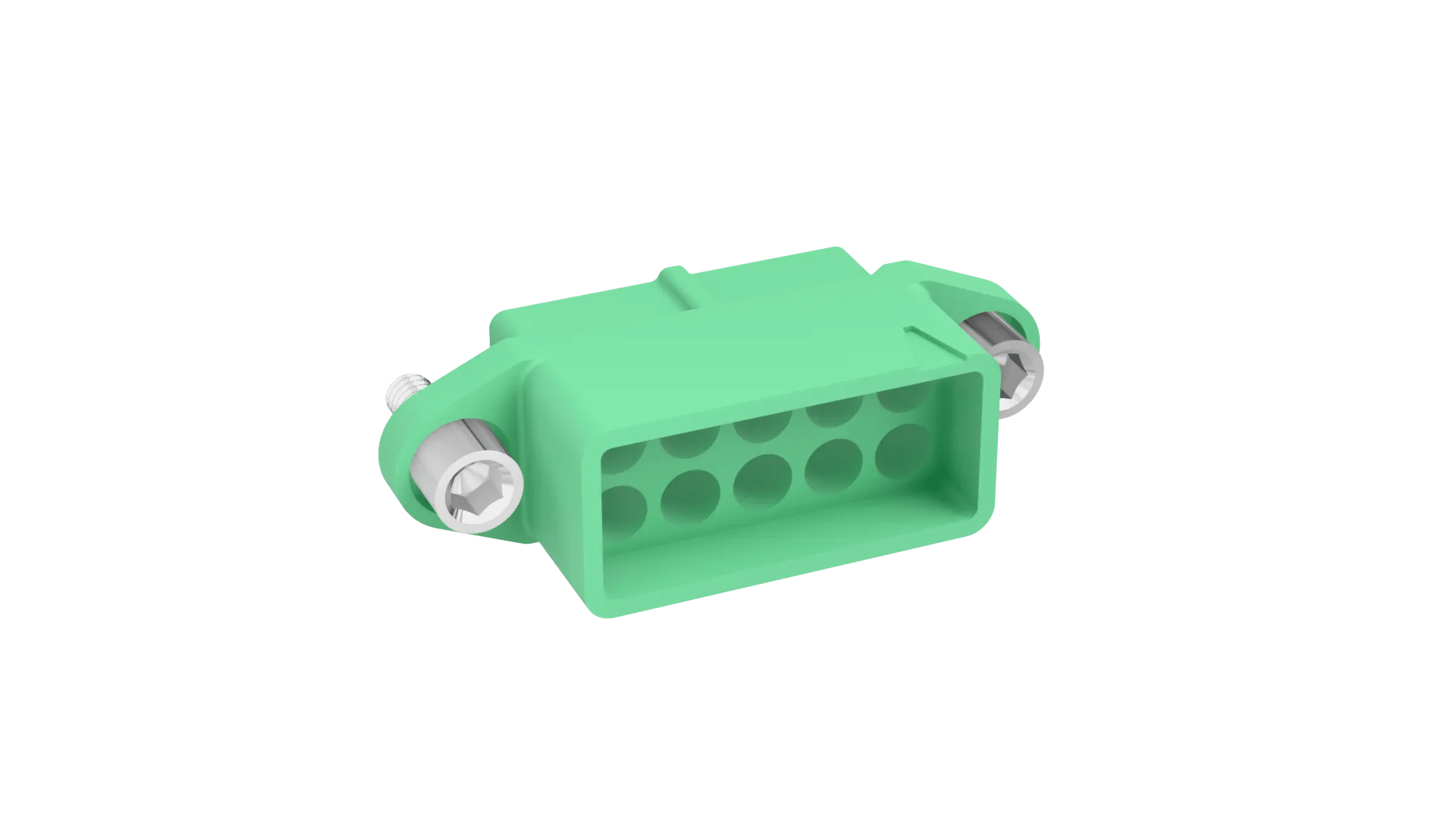

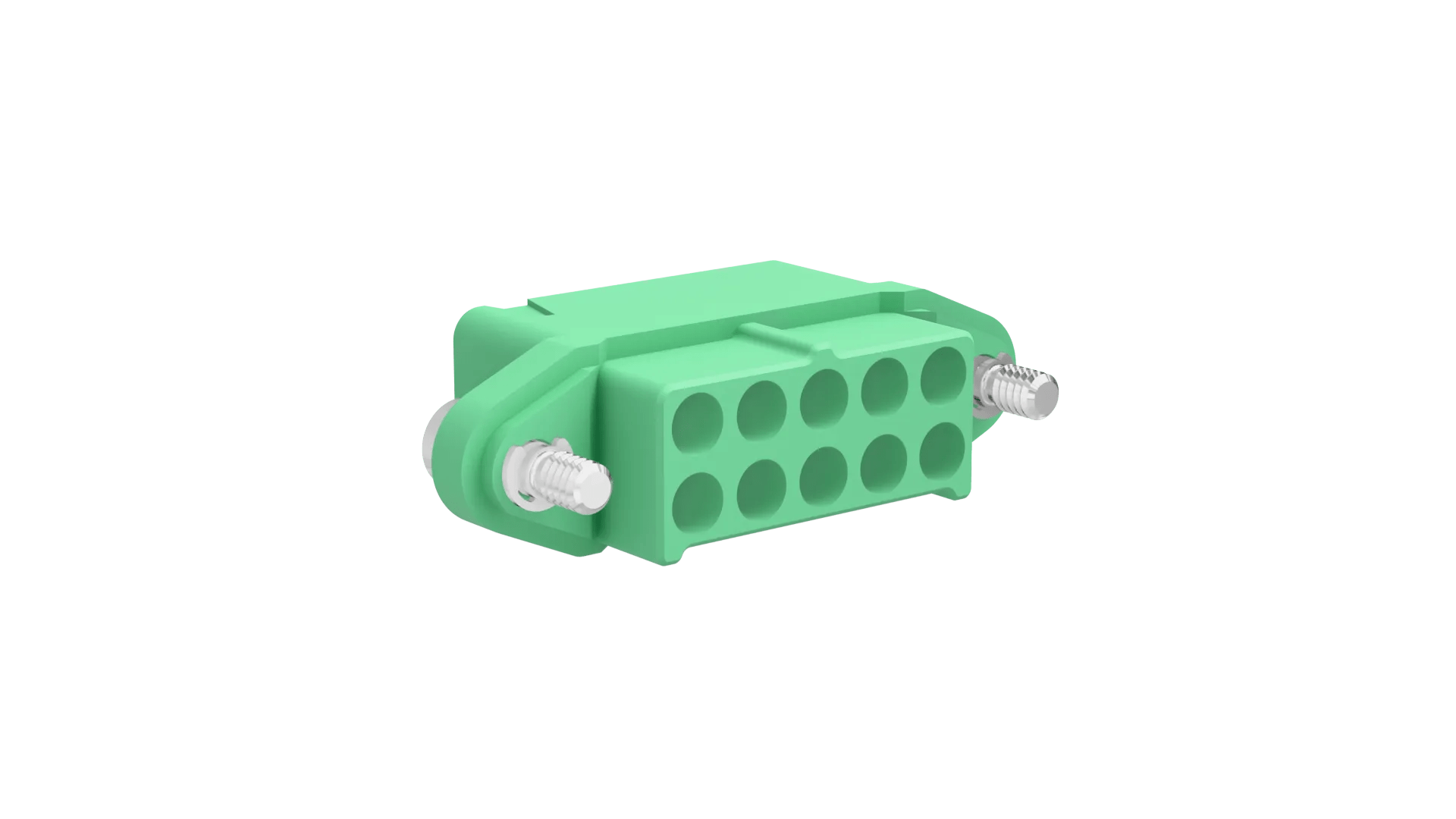

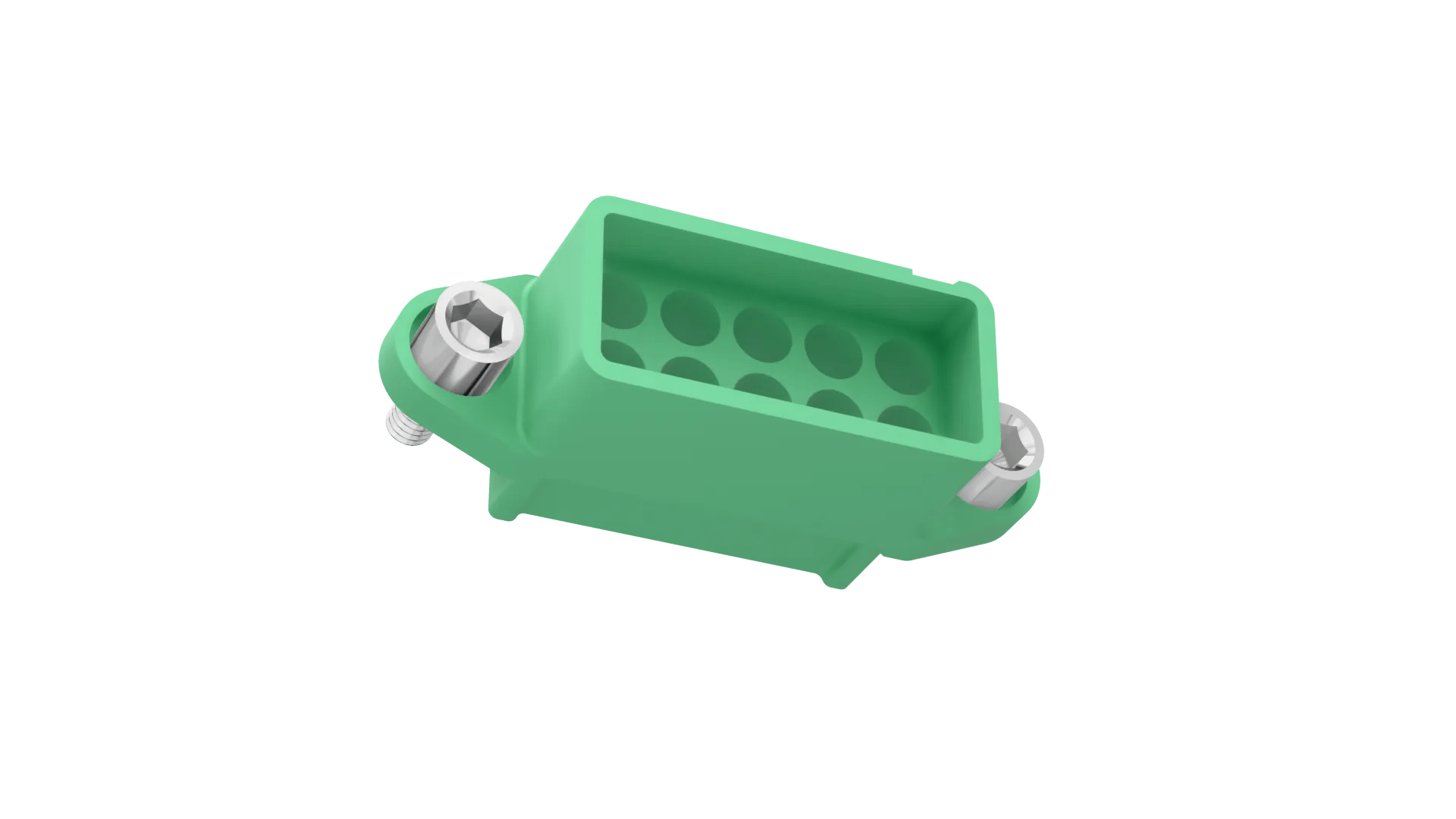

5+5 Pos. Female DIL Cable Housing, Jackscrews
3.00mm Pitch High-Reliability Connector - M300
- Double Row Polarized Female Housing, with Hex Socket jackscrews and rear potting area – 10 contact (5+5). Contacts to be purchased separately.
- Contacts to be purchased separately – use with crimp contacts M300-0010045 or M300-0020045.
- For complete pin numbering or pin out information, see Component Specification C048XX.
EU RoHS Status:
Mating Pin Size:
10A max per contact simultaneous
-65°C to +175°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
27.30 x 8.00 x 12.70
1,376 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
What potting material do you recommend using for backpotting this connector?
We currently recommend 3 materials that we have tried – although it’s very likely that many others are entirely suitable. Our primary recommendation, that we use on our complete cable assemblies, is Stycast 2651MM with Catalyst 9. We have also used Robnor Resins PX439XS/BK/250 and Epoxies Innovative Bonding Solutions 50-3122RBK. You can find more information on backpotting our connectors and links to the epoxy suppliers on our blog post What is Backpotting?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C048xx (page 7).
I can see the current rating – what is the maximum voltage rating?
The maximum voltage (and other specifications not shown on this webpage) are listed in the Component Specification for M300 (C048XX). This document is in the Downloads section, under “Technical Documents”. The maximum voltage is 1800V at sea level.
