KA1-9500302

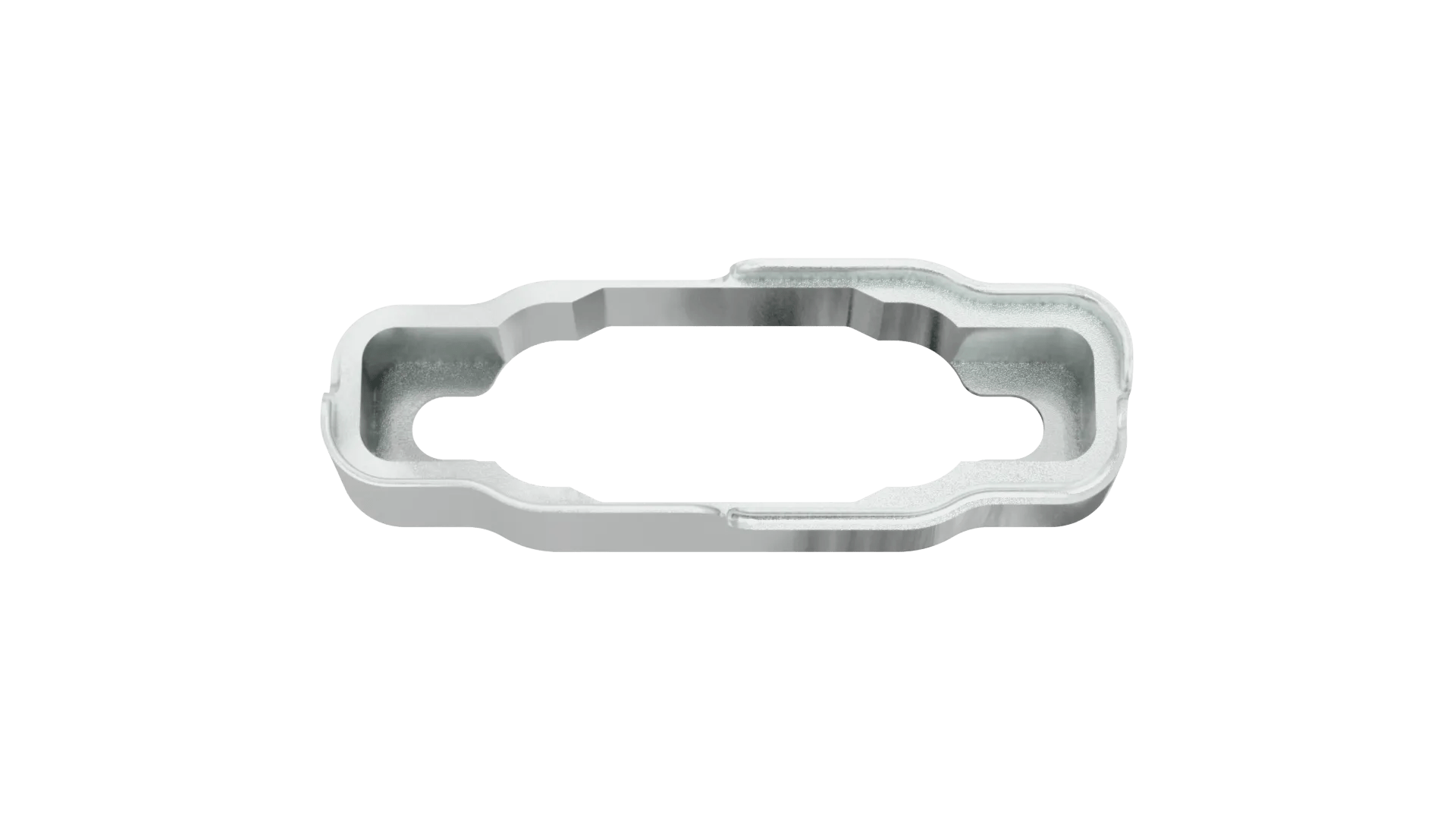

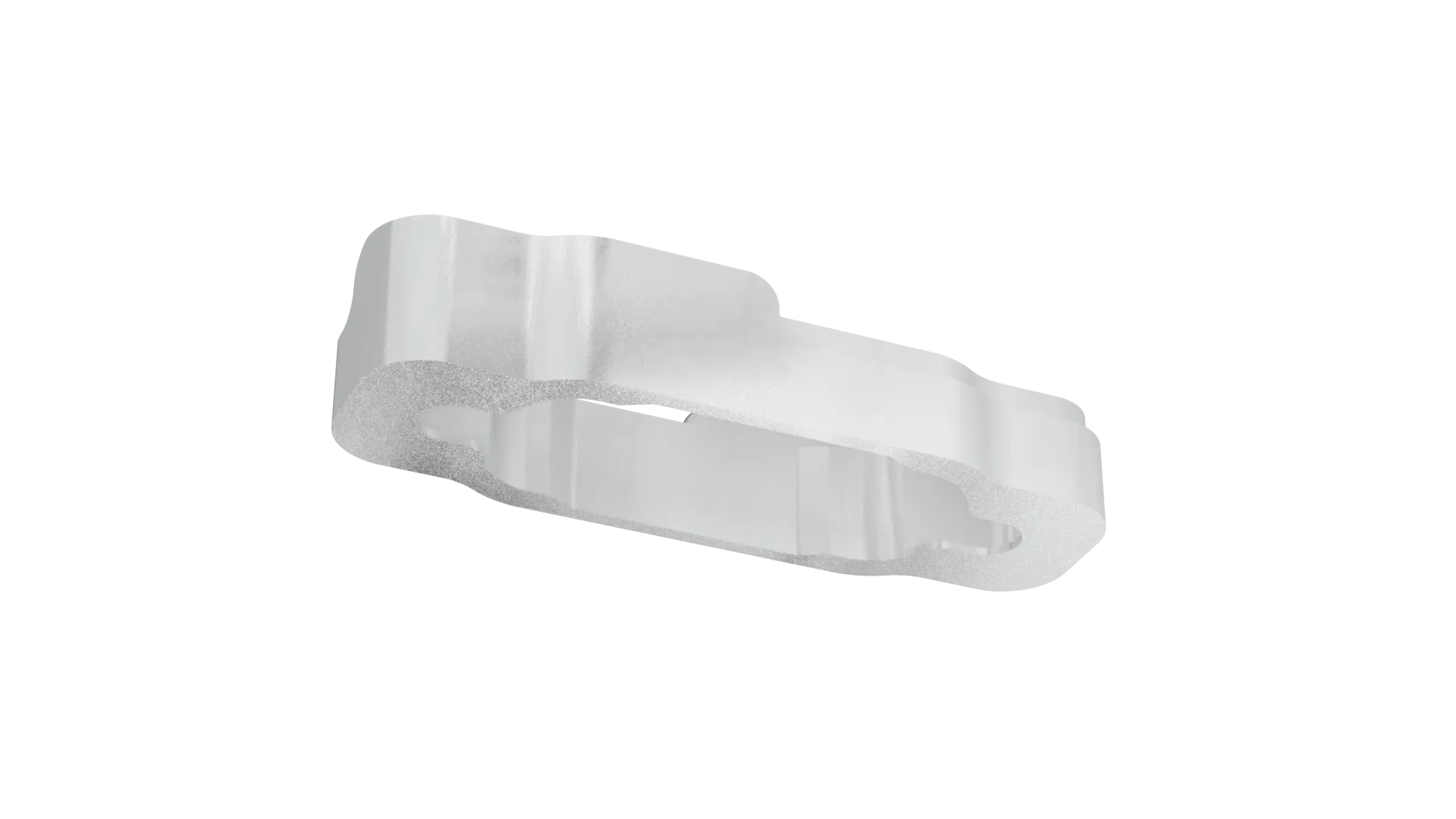

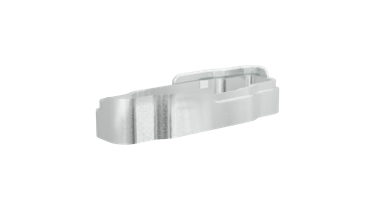

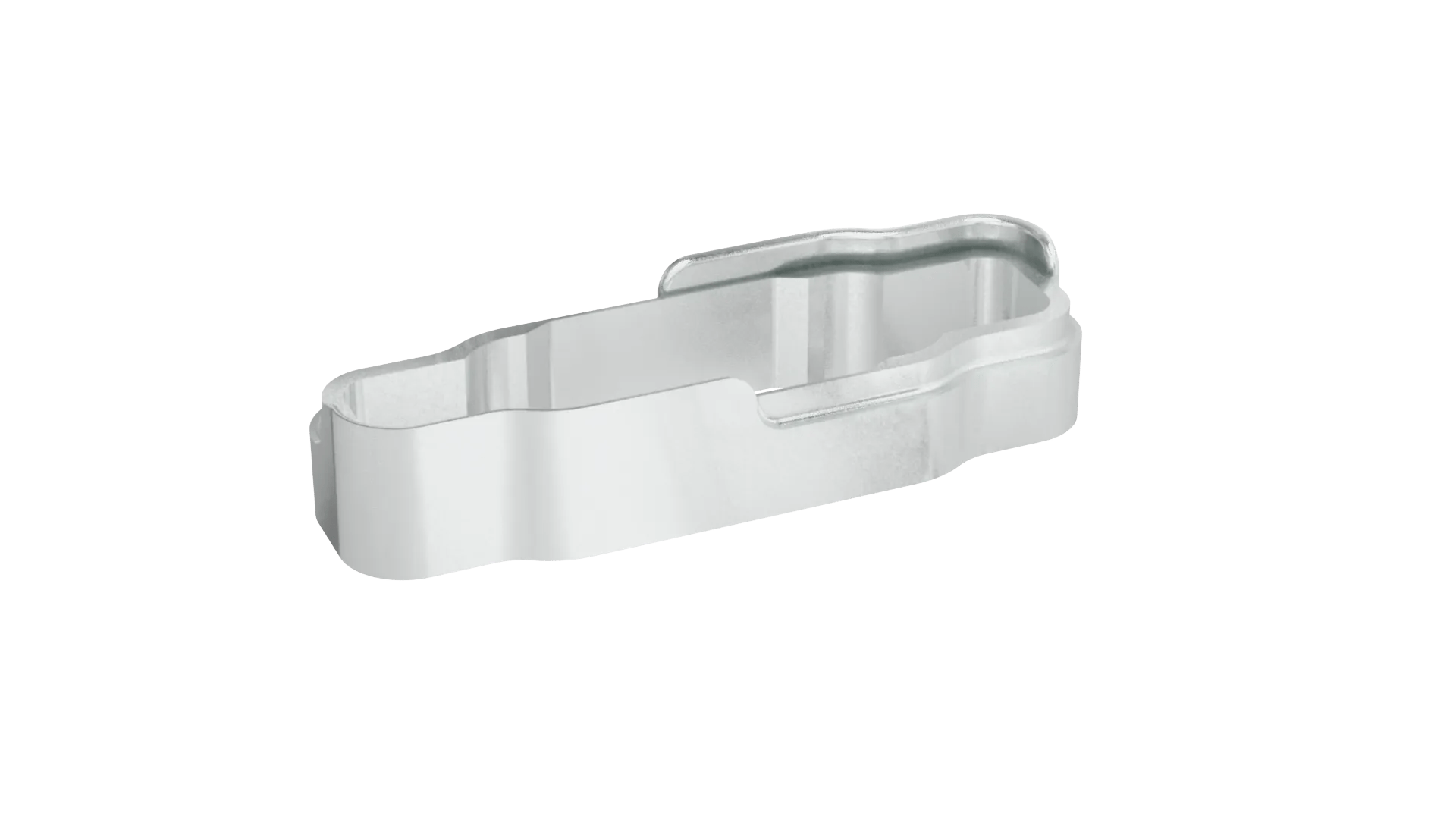

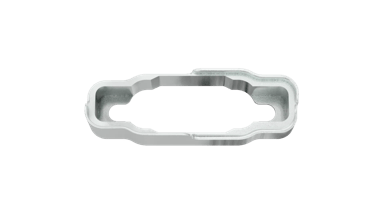

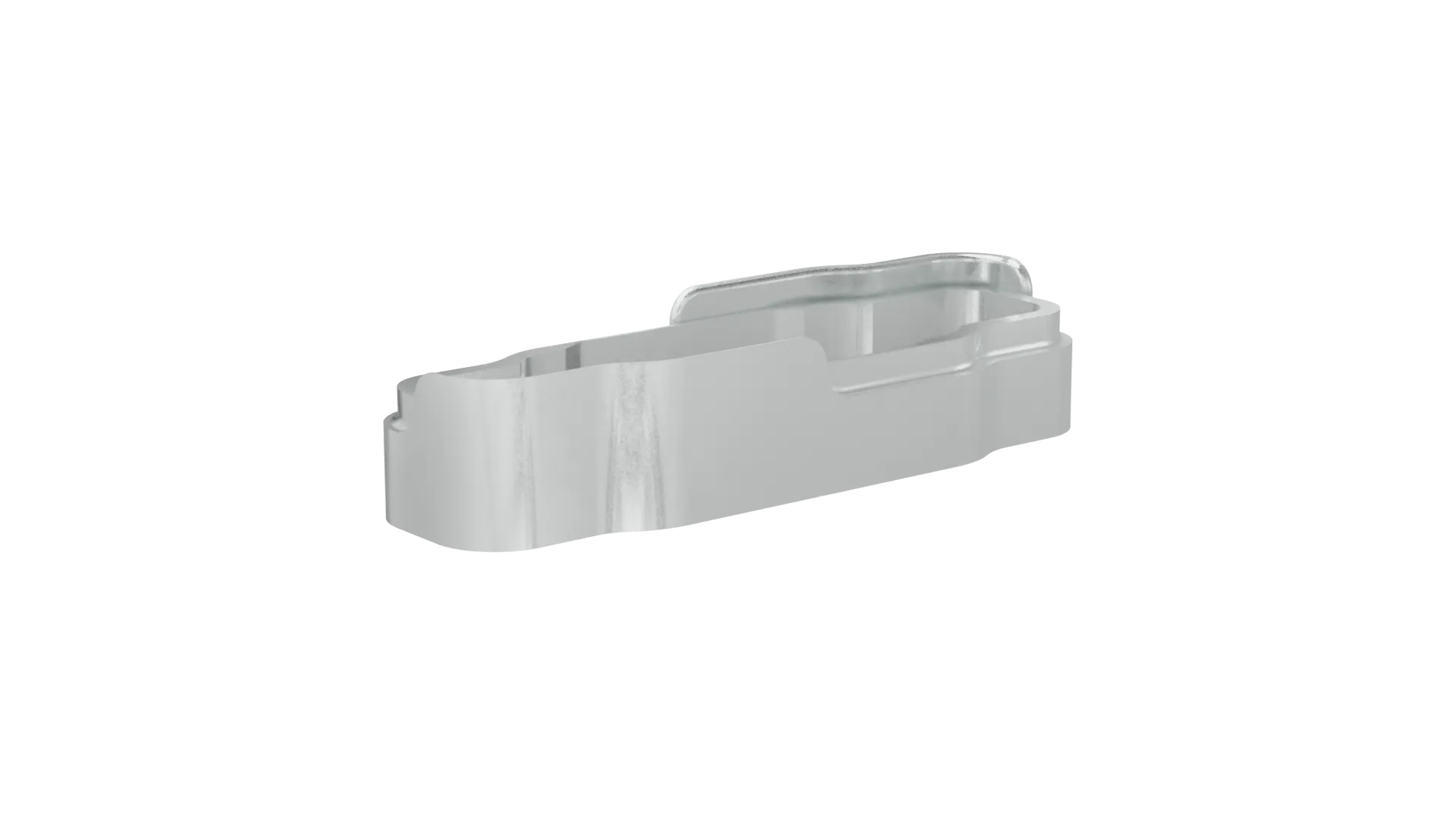

3WAY KONA METAL SHELL FOR PCT ASSEMBLY


8.50mm Pitch High-Reliability Connector - Kona

  • Metal Backshell item for use with front panel mount (cable) or board mount (PCB) connectors. Suitable for female reverse fix or male standard gender fixings, mate with cable backshells for full shielding.

  • Use with the following 3-contact connectors or housings: male PCB connector KA1-MV10305M1 or KA1-MV20305M1; female cable front panel mount KA1-2010398F2 or male cable front panel mount KA1-3010398M1.

  • If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    1

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    3

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    8.50mm (0.335")

  • Weight:

    4.111g

  • Dimensions:

    46.00 x 15.00 x 9.50

Downloads

    Product Information

  • IS-53 - Kona Metal Backshells KA1-970 Instruction Sheet

  • Product Datasheet - Kona range (HRi)

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - KA1-950.pdf

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - KA1-9500302

  • Material composition for KA1-950XX02 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental
