3 Pos. Male SIL Cable Housing, Panel Mount

HRi
HRi
HRi

Traceparts account required

KA1-3010398M1

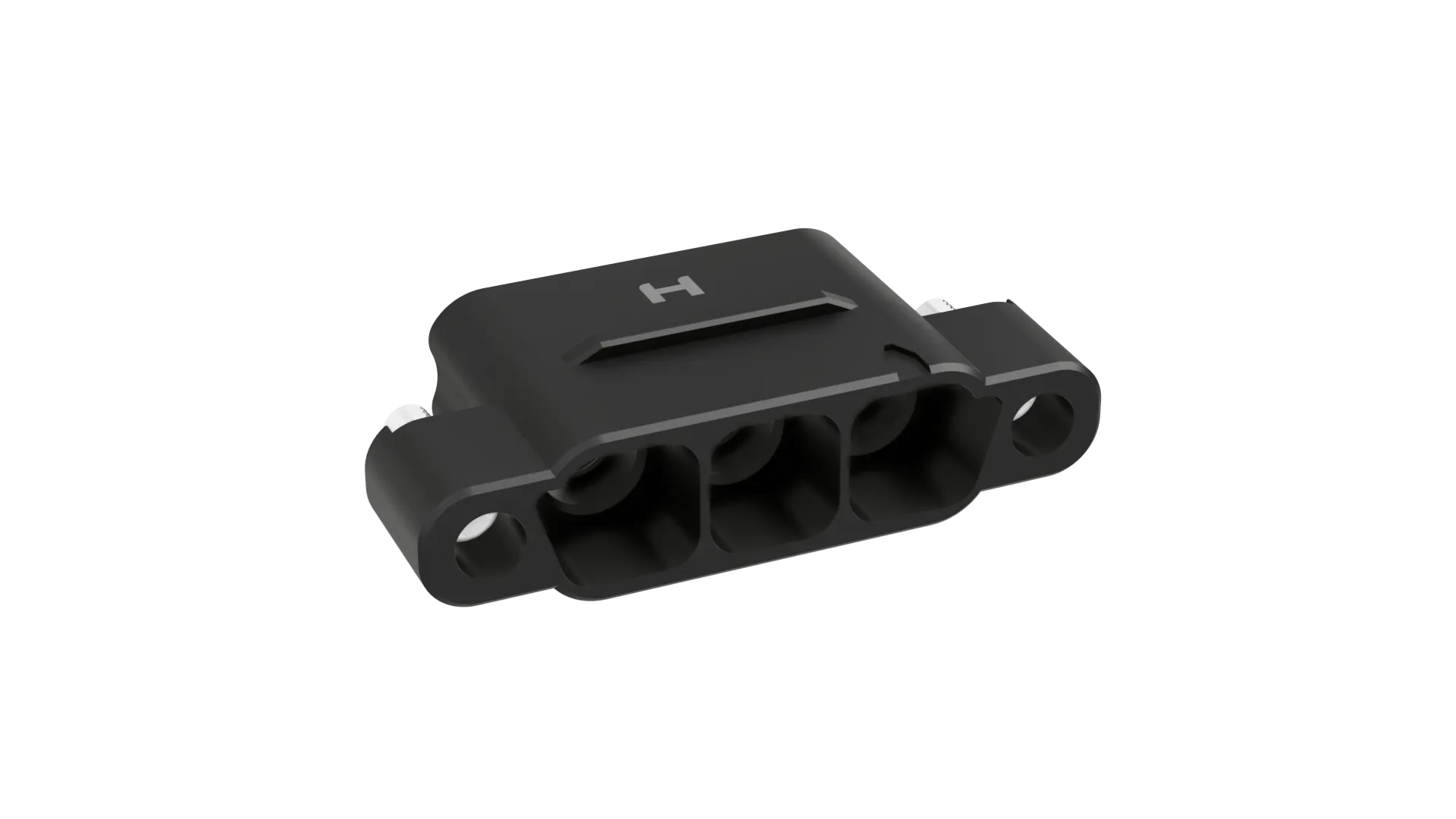

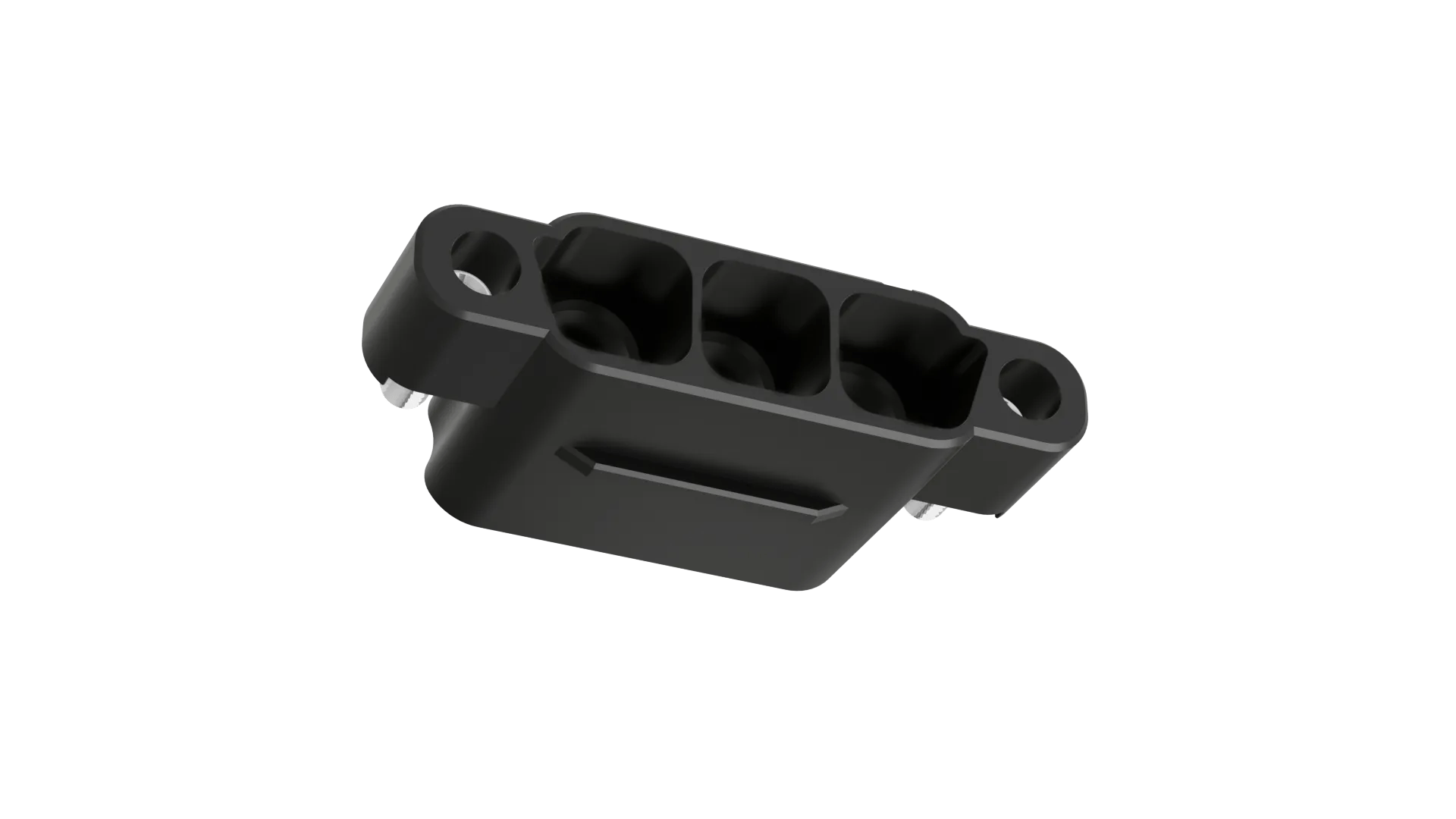

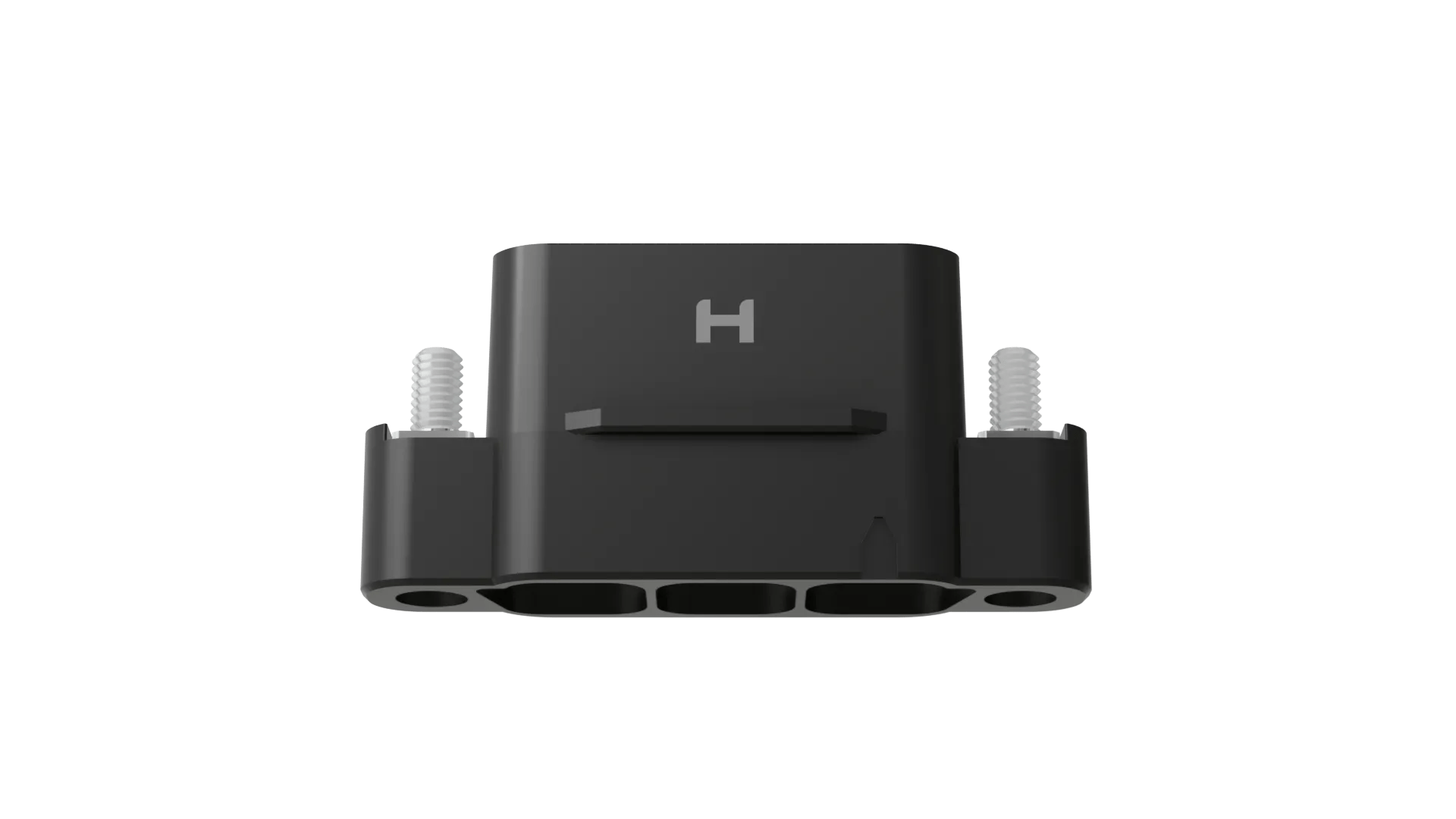

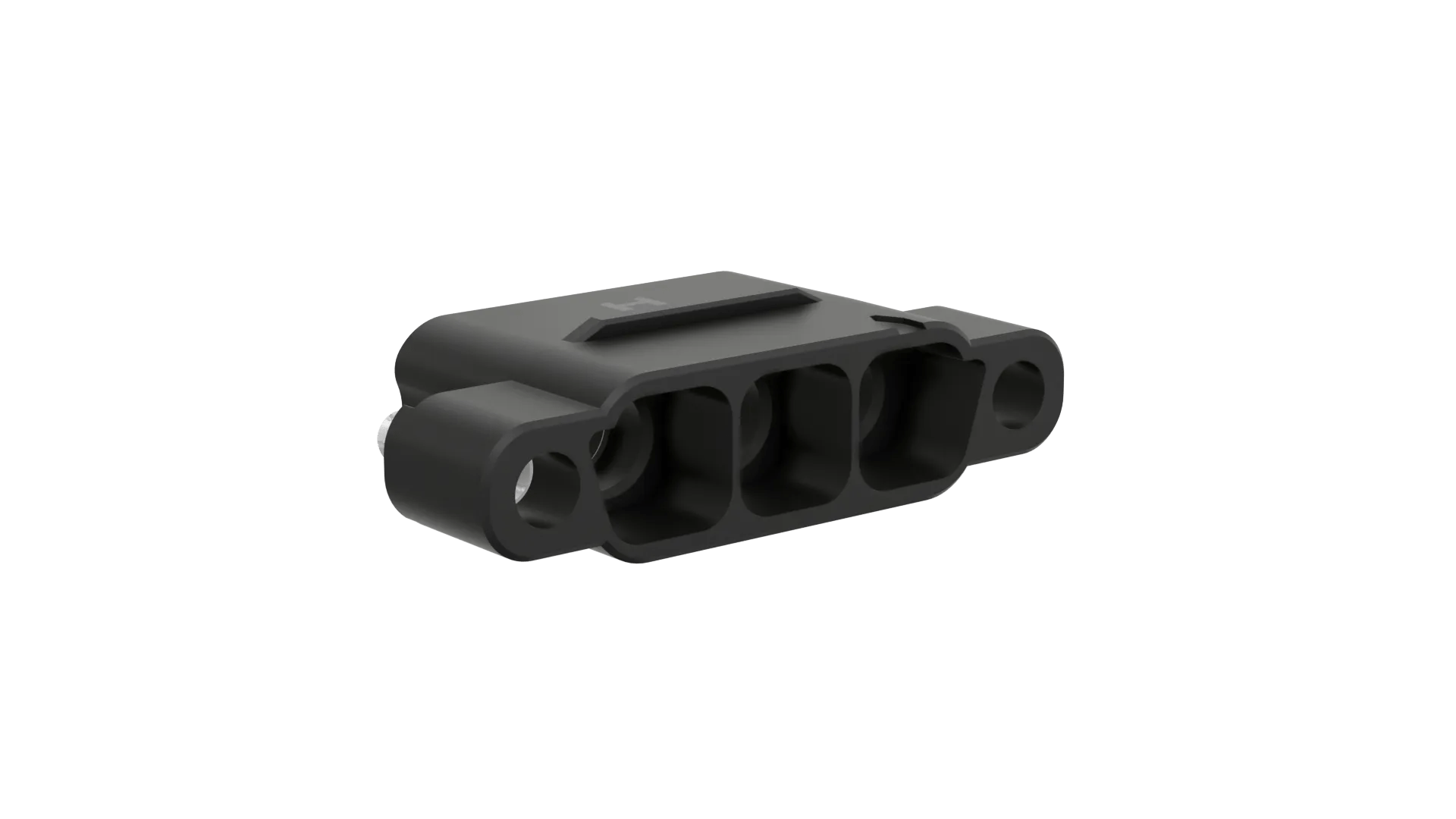

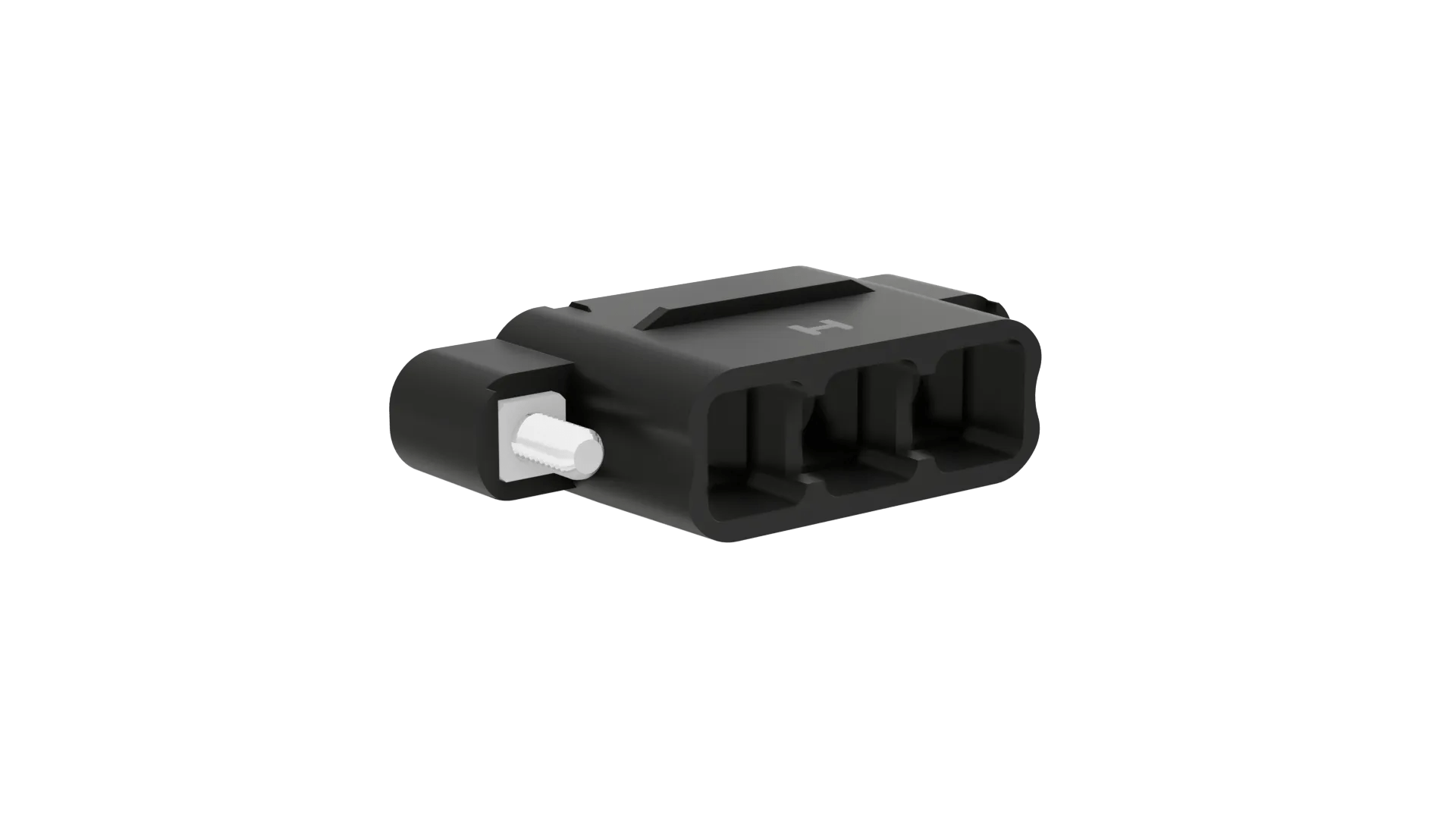

3 Pos. Male SIL Cable Housing, Panel Mount

8.50mm Pitch High-Reliability Connector - Kona

  • Single Row Polarized Male Housing with individually shrouded recessed contact locations - 3 contact. Includes fitted screw-locks with 5.2mm front panel mount studs. Use Slotted Board Mount nut KA1-4240000 for front panel mounting.

  • Contacts to be purchased separately - use with 8 AWG power solder contact KA1-1410005.

  • For complete pin numbering or pin out information, see Component Specification C052XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Fixing with Board/Front Panel Mount

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Power/Coax Contacts:

    3

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    60A max per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    8.50mm (0.335")

  • Weight:

    6.57g

  • Dimensions:

    41.50 x 12.50 x 19.65

  • Thread Size:

    M3

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - KA1-301XX98M1.pdf

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Kona contacts

    • Product Information

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • IS-49 - Kona Contact Assembly and Removal Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Kona range (HRi)

    • Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for KA1-301XX98M1 series

  • RoHS - KA1-3010398M1
