KA1-MV20305M1

KA1-MV20305M1

3 Pos. Male SIL Vertical Throughboard Conn. Board Mount - 3mm PCB

HRi
HRi
HRi

Traceparts account required

KA1-MV20305M1

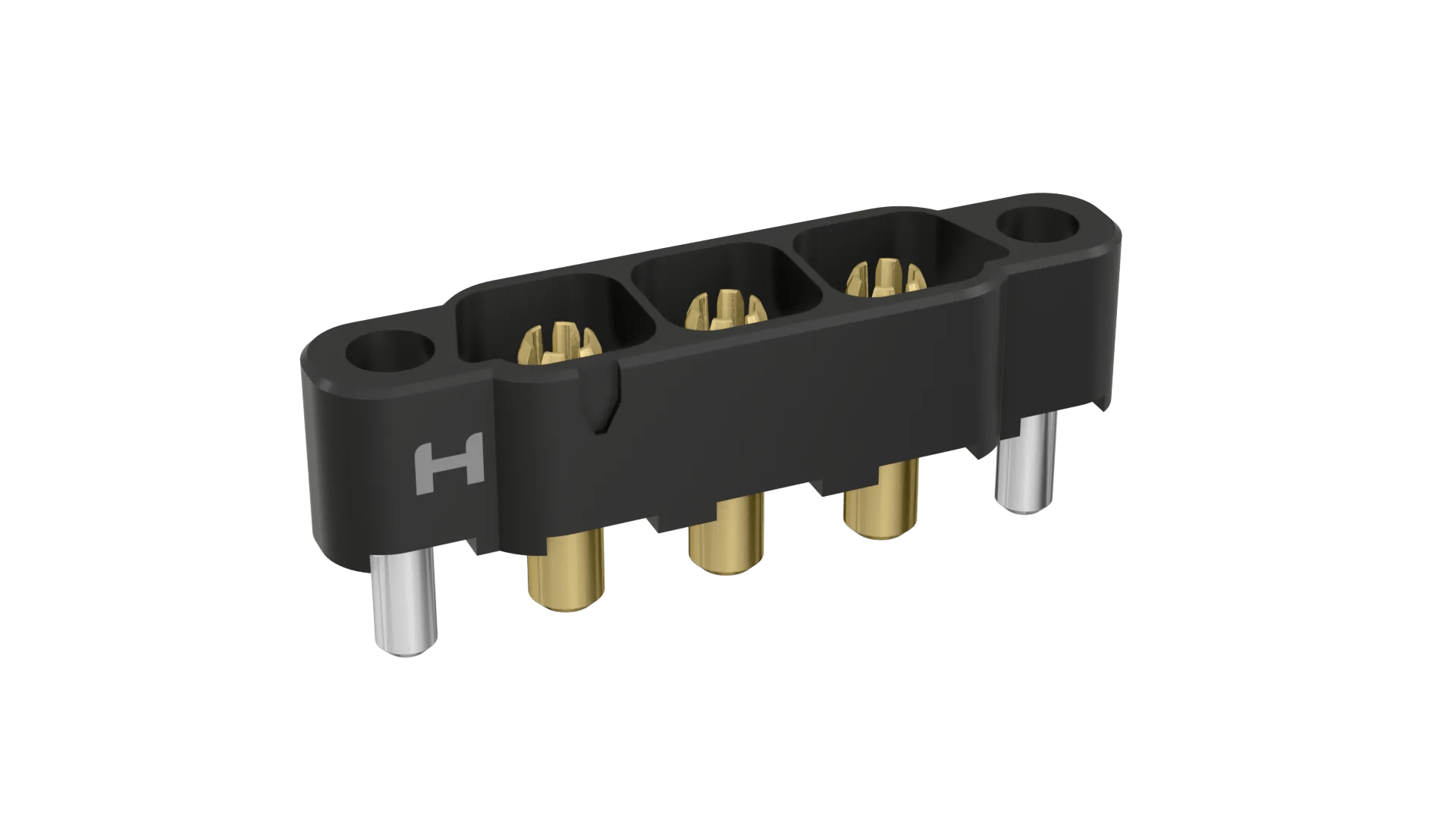

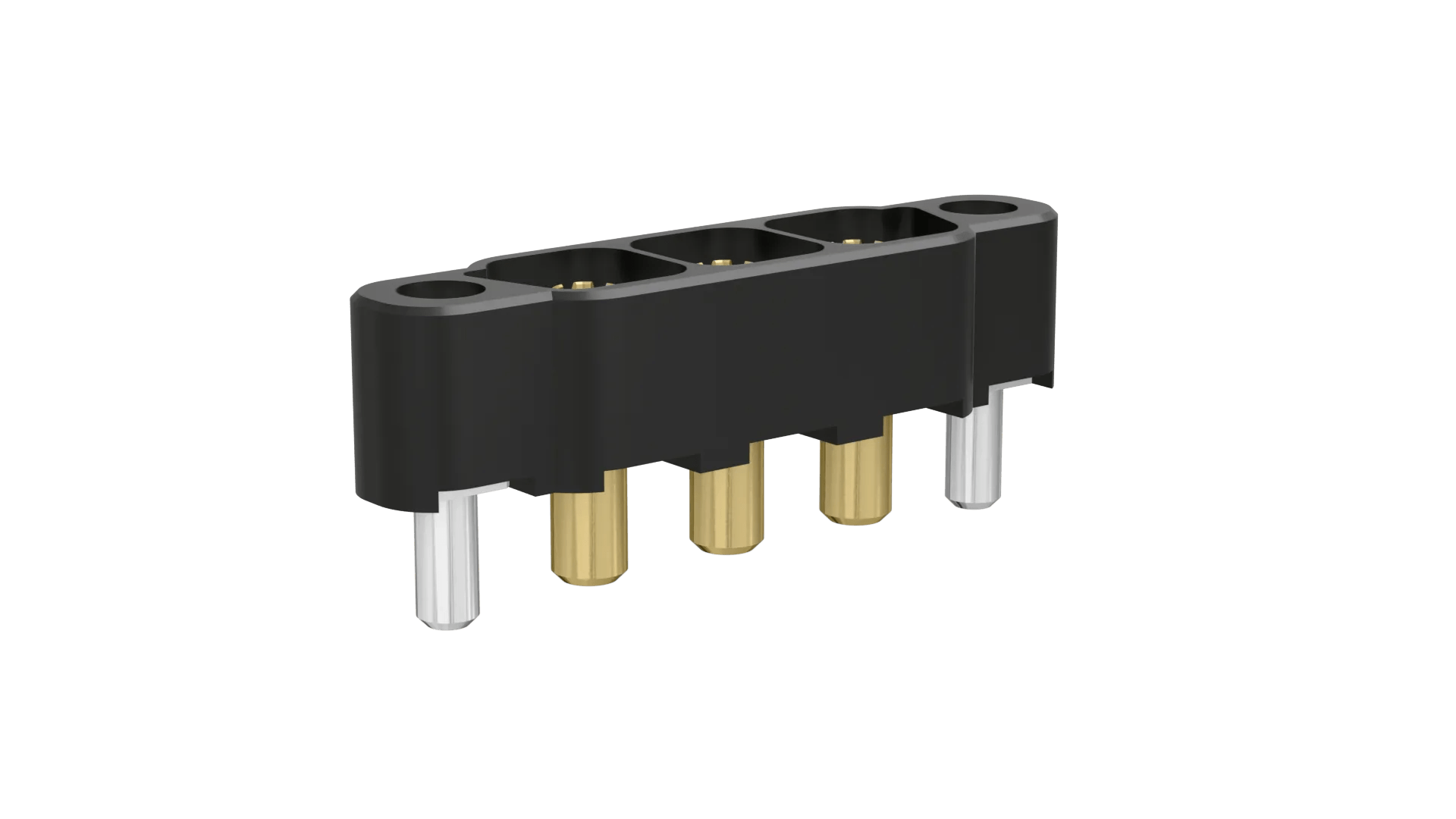

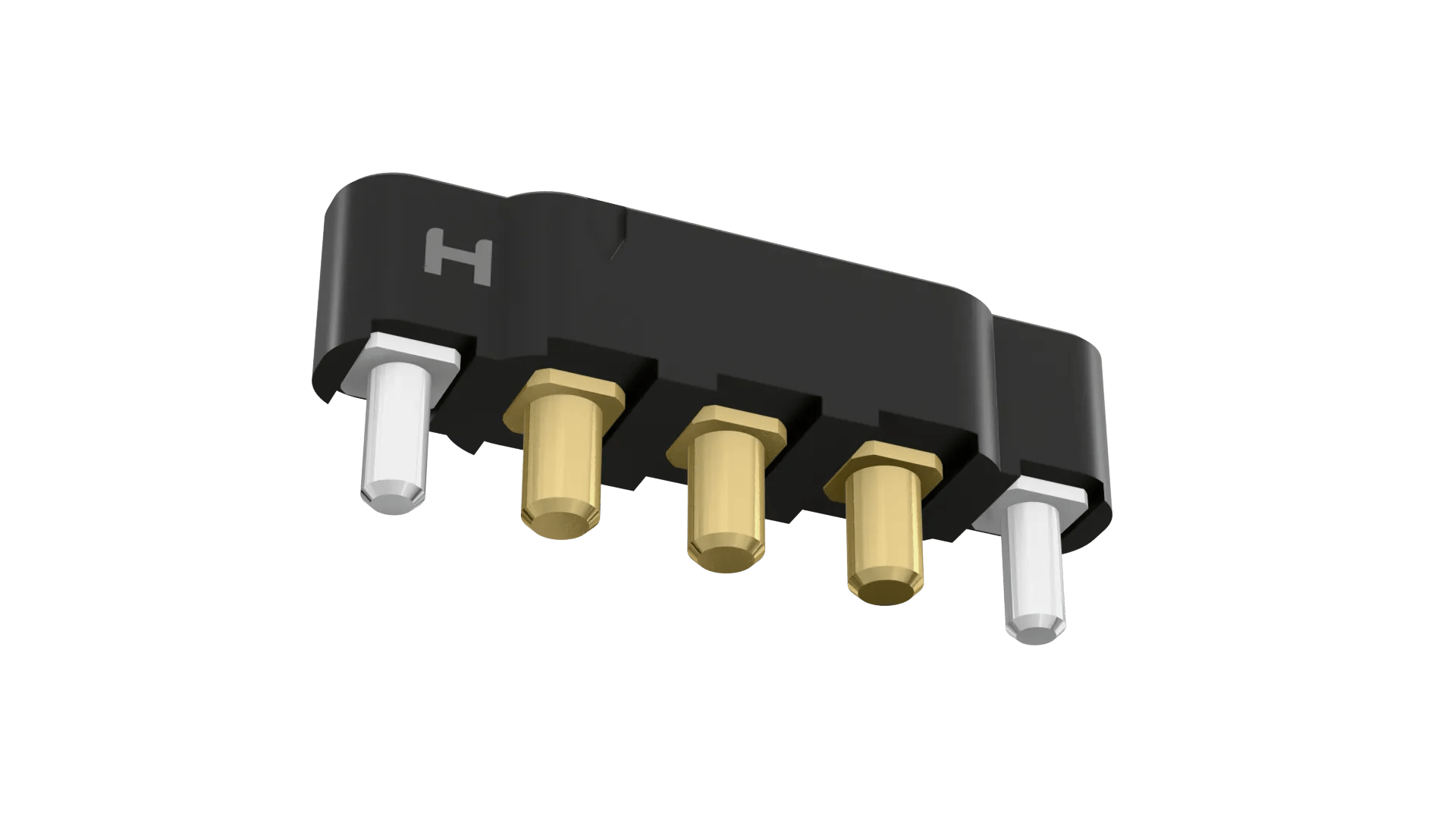

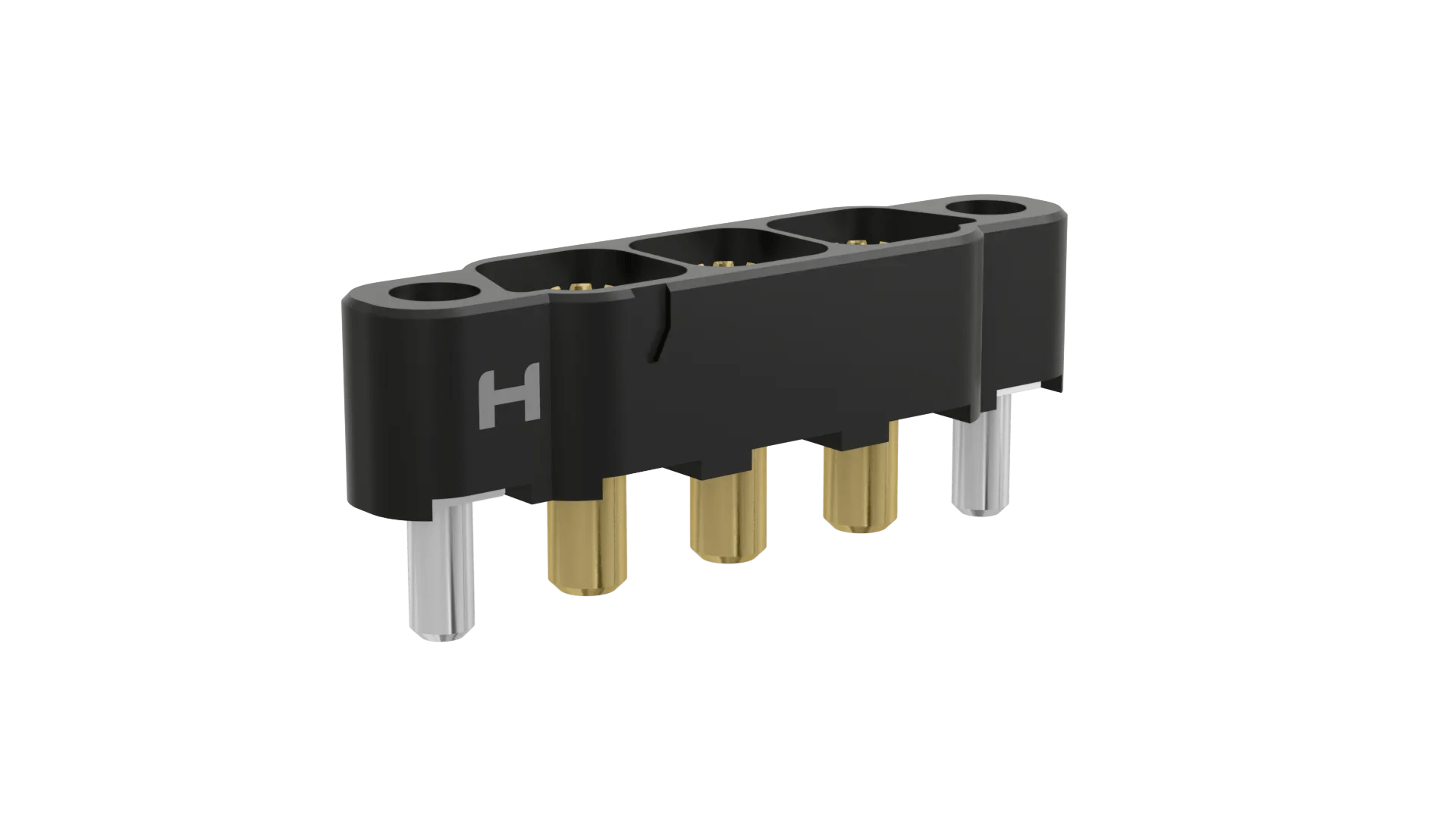

3 Pos. Male SIL Vertical Throughboard Conn. Board Mount - 3mm PCB


8.50mm Pitch High-Reliability Connector - Kona

  • Single Row Polarized Male 5.9mm PC Tail vertical throughboard connector with individually shrouded recessed contacts - 3 contacts.

  • Includes fitted fixing screws with 6.6mm board mount studs. Use slotted nut KA1-4240000 for PCB strain relief. Gold finish on contact area and termination. Supplied with pick and place caps, in tube.

  • For complete pin numbering or pin out information, see Component Specification C052XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    8.50mm (0.335")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Style of Jackscrews:

    Internal Thread Screw-Lock with Board Mount Stud (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Signal Contacts:

    3

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    9.50mm

  • PC Tail Length:

    5.90mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    60A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    8.82g

  • Dimensions:

    41.50 x 10.50 x 16.10

  • Operating Temperature:

    -65°C to +150°C

Downloads

    Environmental Compliance

  • RoHS - KA1-MV20305M1

  • Material composition for KA1-MV2XX05M1 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - KA1-MVXXX05M1.pdf

  • Plating thickness on Kona contacts

  • C052XX Component Specification - Kona KA1 Series (8.50mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Catalog page - Kona Specification + Pin Numbering + Mating Profile

  • Product Training Module - Overview Guide to the Kona range + 8.5mm pitch Power High-Reliability

  • Product Datasheet - Kona range (HRi)

  • Test Reports

  • Test Report HT076 - Kona (KA1 Series) - Electrical + Mechanical and Environmental
